Thông tin chung:
- Nhà sản xuất : ASUS
- Bảo hành : 36 tháng
THÔNG SỐ KĨ THUẬT
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |

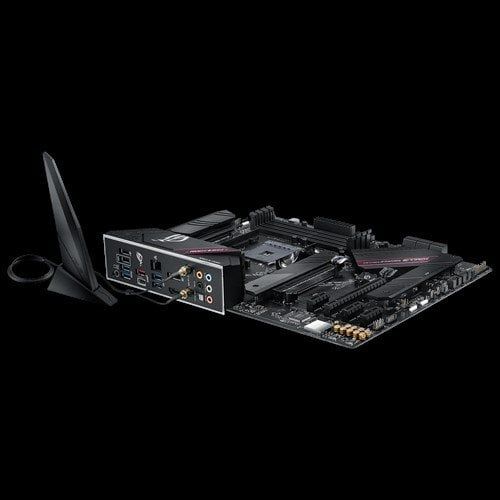

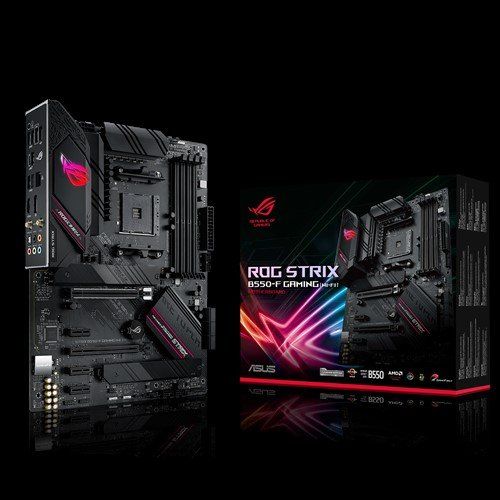

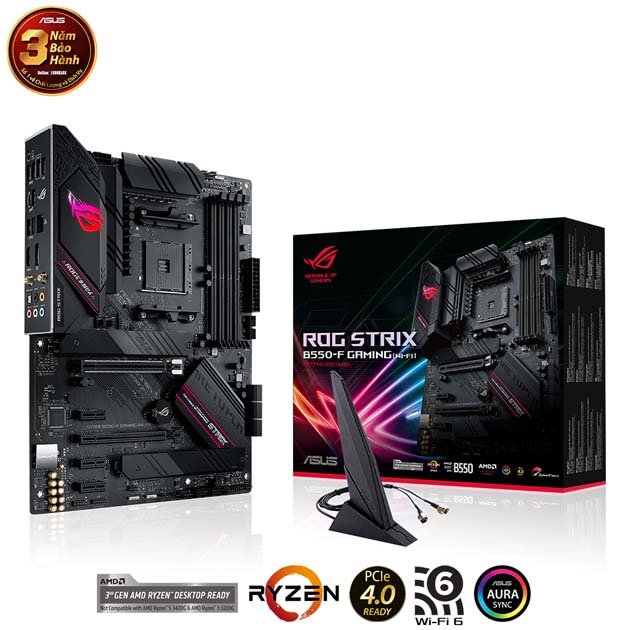

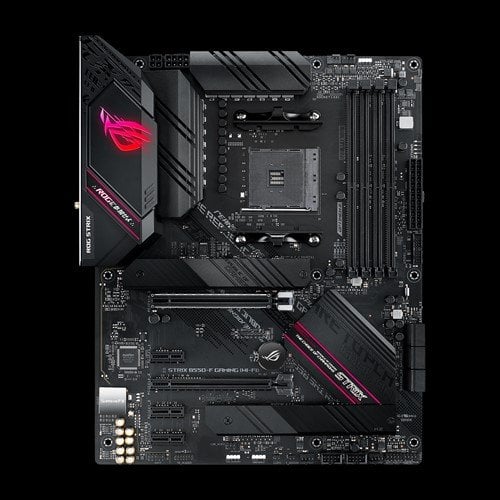

| Model | Rog Strix B550-F Gaming (WIFI) |
| Socket | AM4 |
| Hỗ trợ CPU | Supports AMD 3nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors |
| Chipset | AMD B550 |
| Hỗ trợ RAM | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Card đồ họa | VGA onboard |
| Âm thanh | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A |
| Card mạng | Intel® I225-V 2.5Gb Ethernet Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Khe cắm trong | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Cổng giao tiếp ngoài | 1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Kích thước | ATX |
