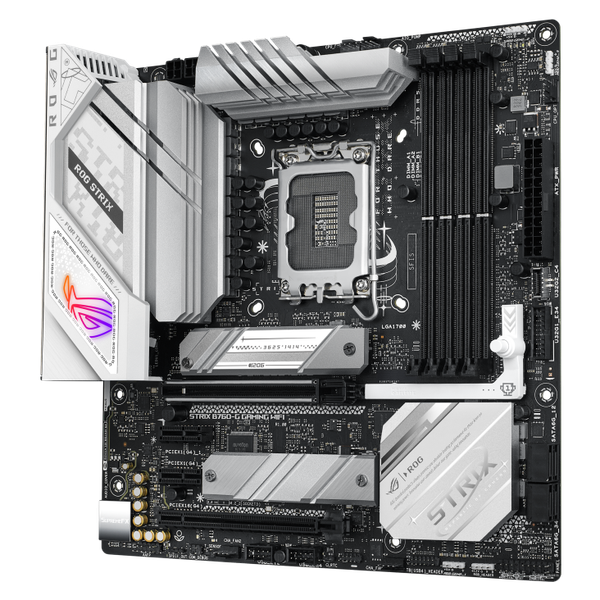

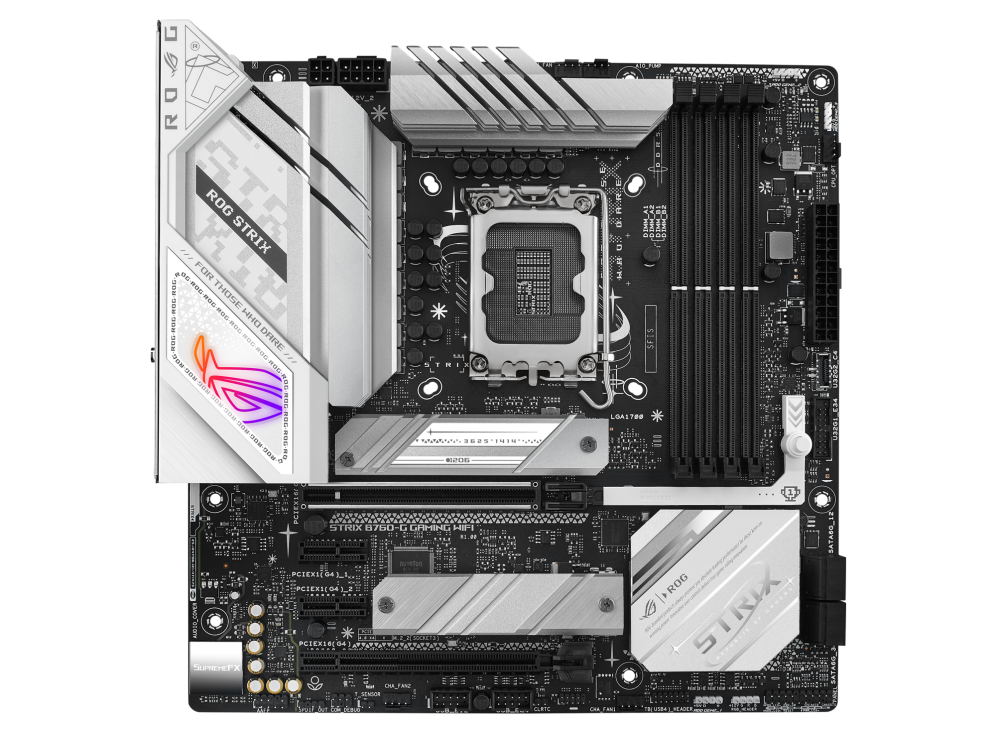

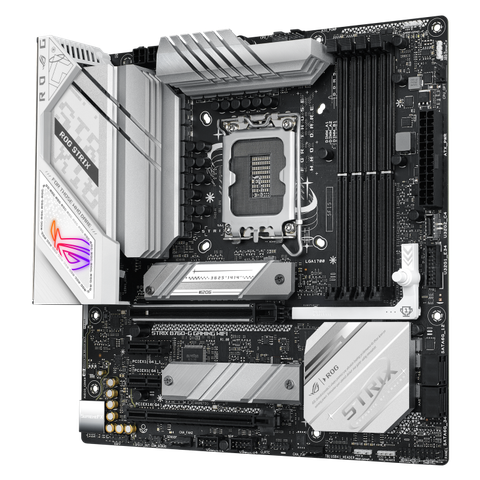

ROG STRIX B760-G GAMING WIFI
CPU
Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* Supported memory types, data rate(Speed),
and number of DRAM module vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL
(Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in
DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI
2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/ for the list of
supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between
countries.
USB
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4
USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High
Definition Audio CODEC S1220A
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
* Due to limitations in HAD bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
-CPU
Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 header
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Performance And Power Saving Utility
- DIGI+ VRM
- PC Cleaner
MyAsus
Norton 360 for Gamers (60 days free trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User manual
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
