KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
Height:464 mm (With Feet)
Width:227 mm
Depth:446 mm
Weight:8.1 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 165mm
Max GPU Clearance:Up to 265mm
Front Radiator Clearance:45mm
Cable Management:Up to 23mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:1
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
INCLUDED ACCESSORIES
Installation screws:1
Cable ties:10
RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)
EXPANSION SLOTS
Standard:7
DRIVE BAYS
2.5":1+1
3.5":1
FAN SUPPORT
Front:2 x F Series RGB 140mm (Case Version) included
Top:2 x 120mm
Rear:1 x 120mm
Bottom:1 x F Series Quiet 120mm (Case Version) included

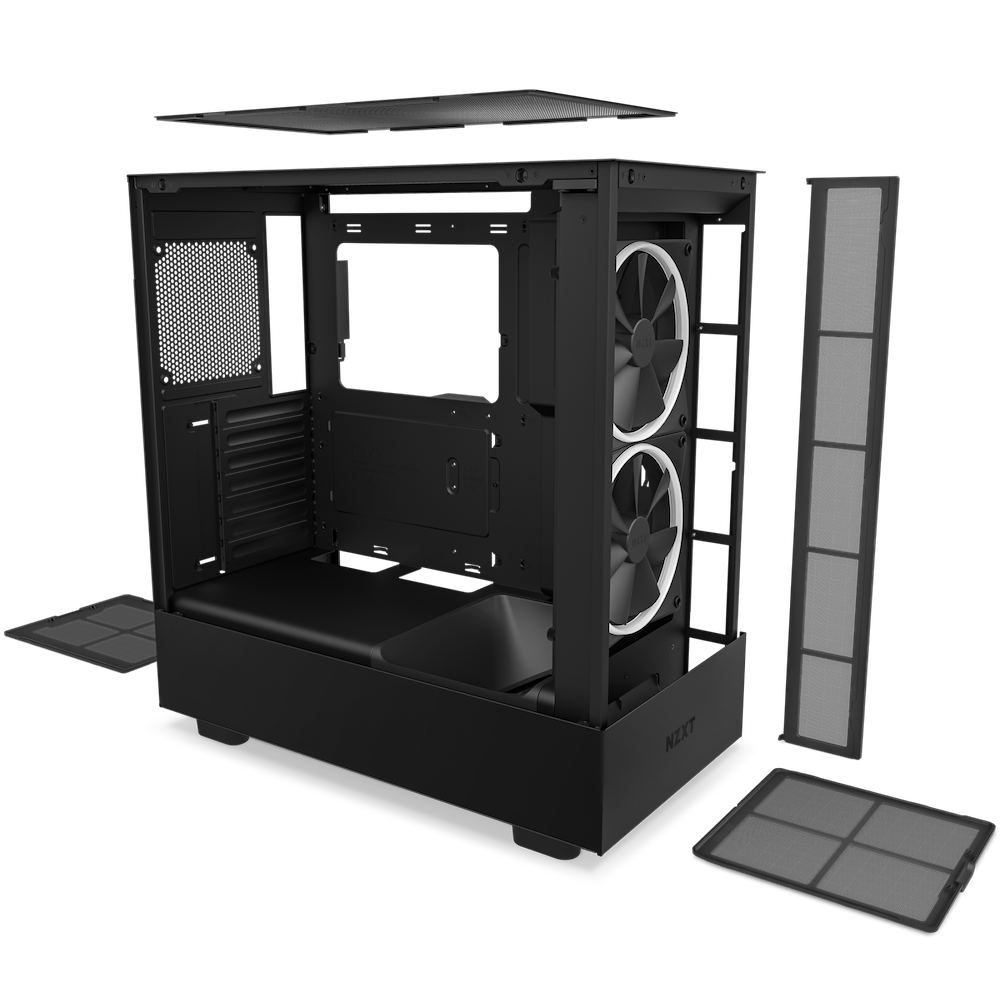

Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 280mm
Top:Up to 240mm
Rear:Up to 120mm
FAN SPECS
Model:F140 RGB Fan
Speed:500 - 1800 RPM
Airflow:24.85 - 89.48 CFM
Static Pressure:0.94 - 3.39 mm-H2O
Noise:20 - 32.5 dBA
Fan Connector:4-pin
FAN SPECS
Model:F120Q Airflow Fan (Case Version)
Speed:1200 ± 240 RPM
Airflow:62.18 CFM
Static Pressure:1.05 mm-H2O
Noise:25.1 dBA
Fan Connector:3-pin
GENERAL
Warranty:2 Years
Model Number:CM-H71EW-01 (White) / CM-H71EB-01 (Black)
UPC:815671019462 (White) / 815671019455 (Black)
EAN:5060301697021 (White) / 5060301697014 (Black)
