Overview
Details
The H7 Elite is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed F140 RGB Core Fans, a built-in RGB Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels
- Front & top support radiators up to 360mm
- Three pre-installed F140 RGB Core Fans
- One pre-installed F140Q Airflow Fan
- Supports vertical GPU mounting (Sold Separately)
- RGB Controller
- Tempered glass front panel
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
- Two color options (Matte Black, Matte White)
Inside the Box
H7 Elite Case1
F140Q Airflow Fan (Case Version) (pre-installed)1
F140 RGB Core Fan (pre-installed)3
RGB Controller1
Installation Accessories1
Manual1

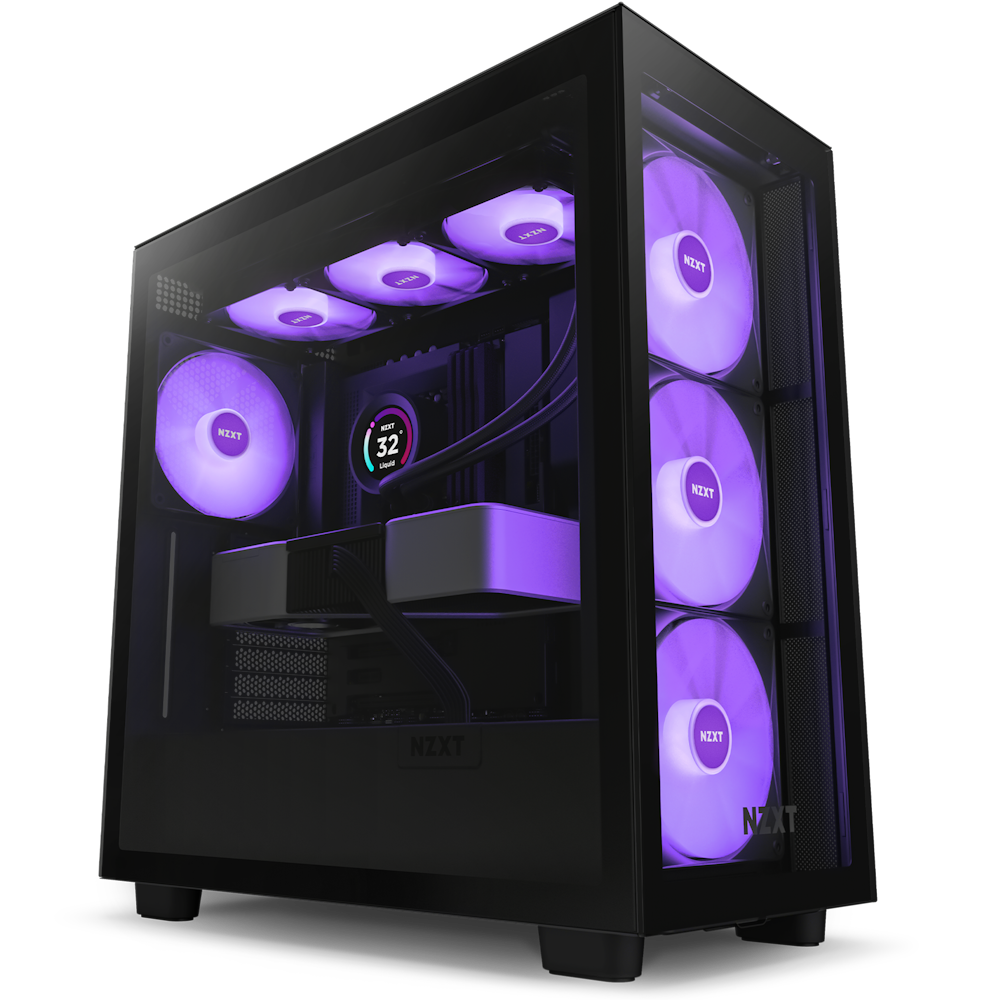

Built-In RGB Lighting
Includes two pre-installed 140mm RGB fans on the front panel for customizable lighting.
Ready for Performance
Fits NVIDIA GeForce RTX 40 Series graphics cards with its 400mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.*
*Sold separately. Reduces clearance to 384mm.
Spacious Cooling Support
Up to 360mm radiator or 3 x 120mm fan support in the front and top panels.

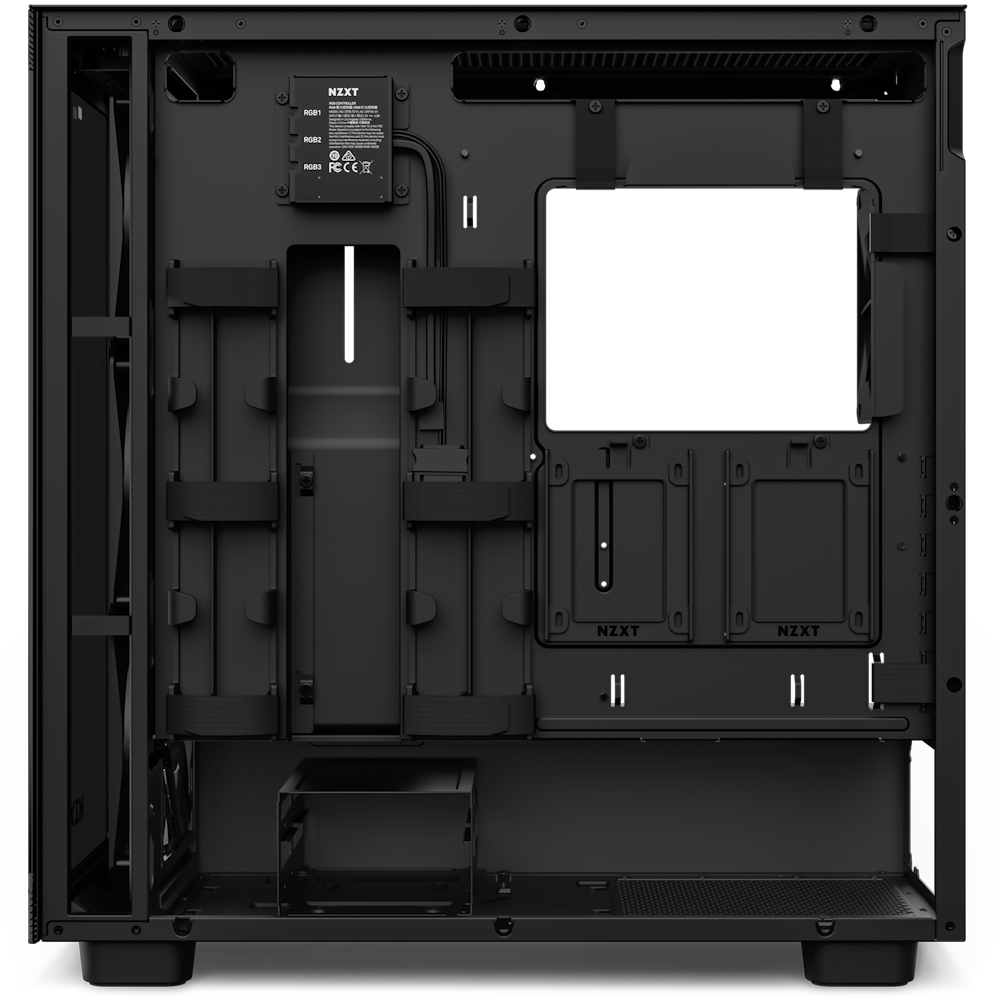

Easily Route Cables
Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management.
Component Compatibility
- 2.5" SSD Support: 4+2
- 3.5" HDD Support: 2
- Expansion Slots: 7
- CPU Cooler: Max 185mm
Tech Specs
KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
Height:505mm (With Feet)
Width:230mm
Depth:480mm
Weight:11.36 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 185mm
Max GPU Clearance:Up to 400mm
Front Radiator Clearance:60mm
Top Radiator Clearance:30mm
Cable Management:18-22mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
RGB CONTROLLER
NZXT RGB Connector:6 (Support up to 120 LEDs)
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5":4+2
3.5":2
FAN SUPPORT
Front:3 x 120mm / 3 x 140mm
Top:3 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 140mm

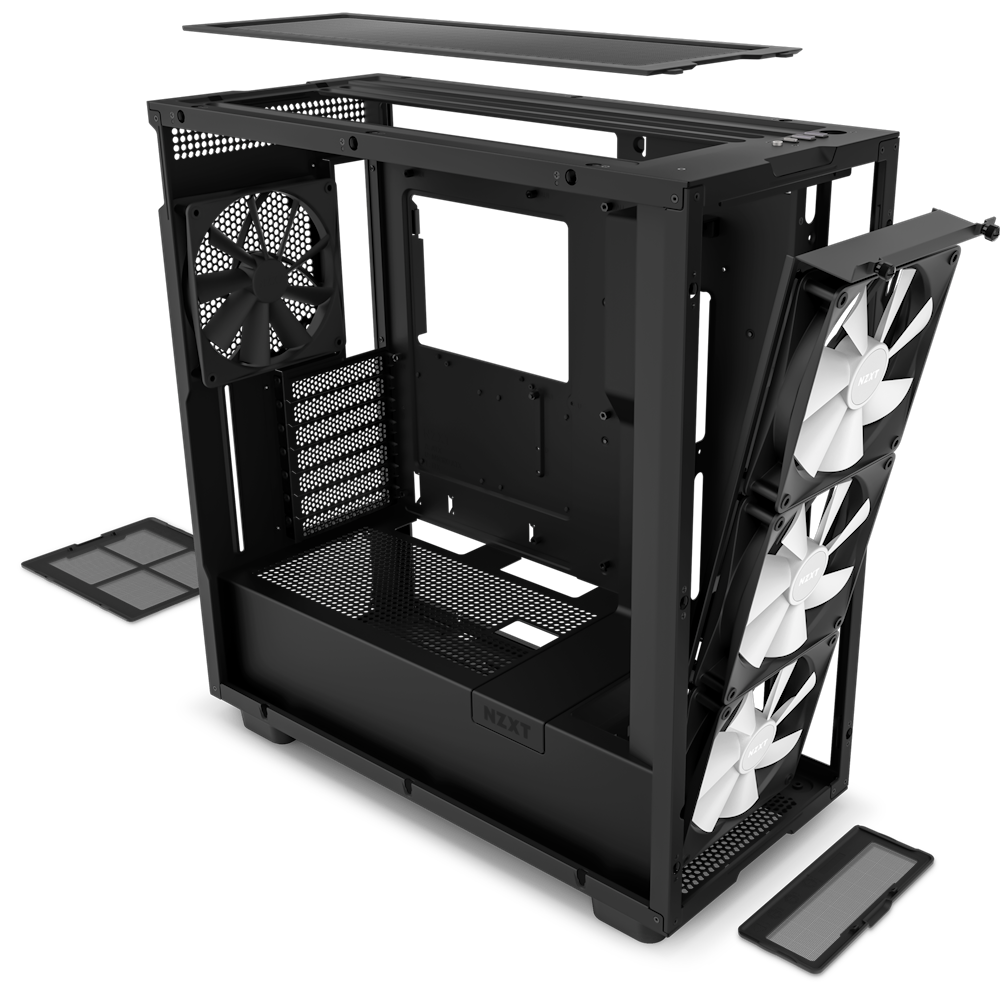

Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 360mm with Push/Pull
Top:Up to 360mm
Rear:Up to 140mm
FAN SPECS
Model:F140Q (Case Version)
Speed:1200 ± 240RPM
Airflow:99.56 CFM
Static Pressure:1.14 mm-H2O
Noise:24.18 dBA
Fan Connector:3-pin
FAN SPECS
Model:F140 RGB Core Fan
Speed:500-1,500 ± 150 RPM
Airflow:90.79 CFM
Static Pressure:3.22 mm H2O
Noise:34.48 dBA
Fan Connector:4-pin PWM
GENERAL
Warranty:2 Years
Model Number:CM-H71EW-02 (White) / CM-H71EB-02 (Black)
UPC:810074843607 (White) / 810074843591 (Black)
EAN:5056547203522 (White) / 5056547203515 (Black)
