KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
Height:505mm (With Feet)
Width:230mm
Depth:480mm
Weight:10.05 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 185mm
Max GPU Clearance:Up to 400mm
Front Radiator Clearance:60mm
Top Radiator Clearance:30mm

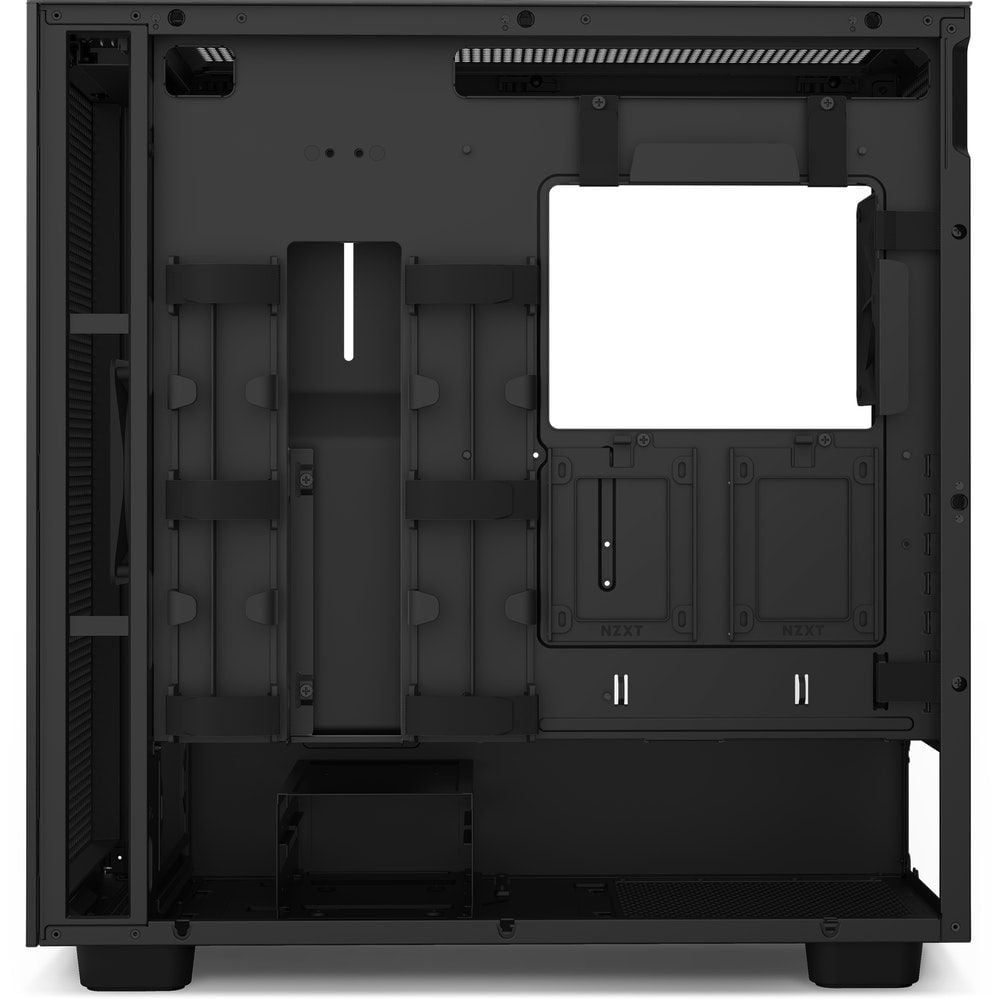

Cable Management:18-22mm

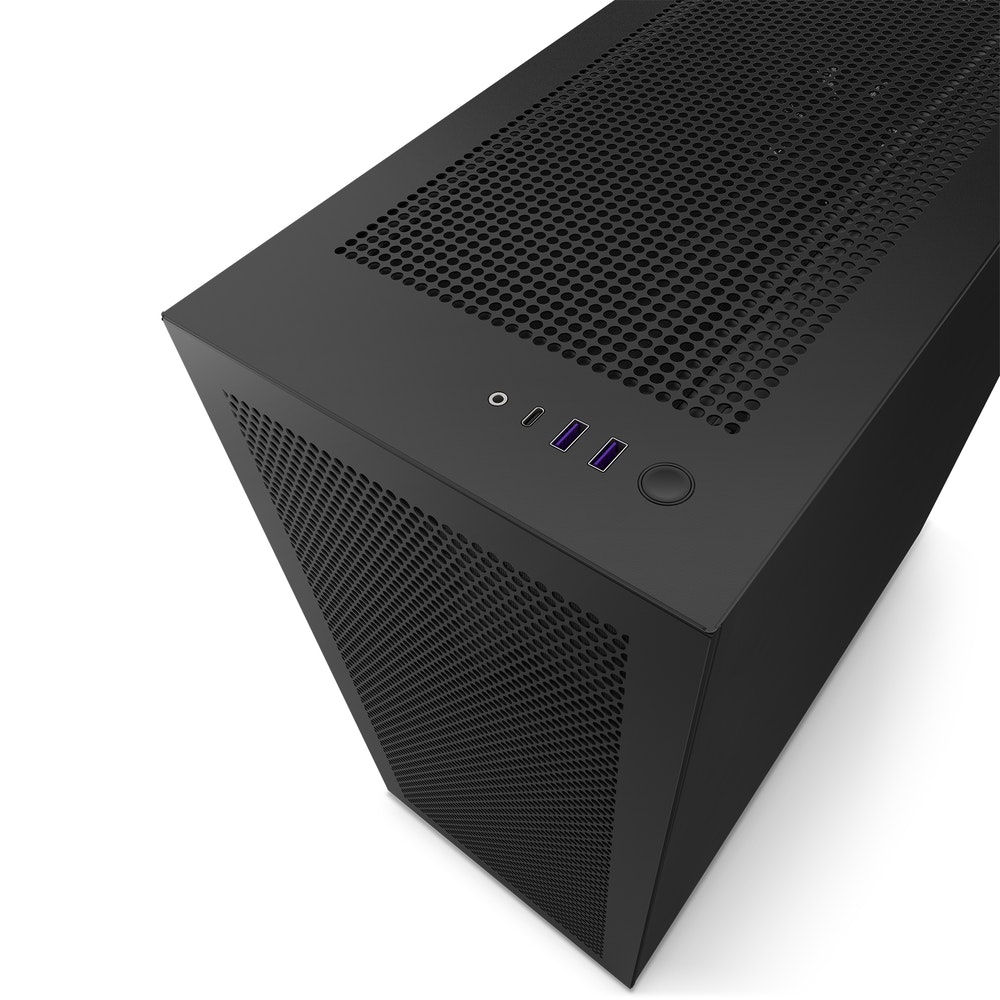

FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5":4+2
3.5":2
FAN SUPPORT
Front:3 x 120mm / 3 x 140mm
Top:3 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 140mm

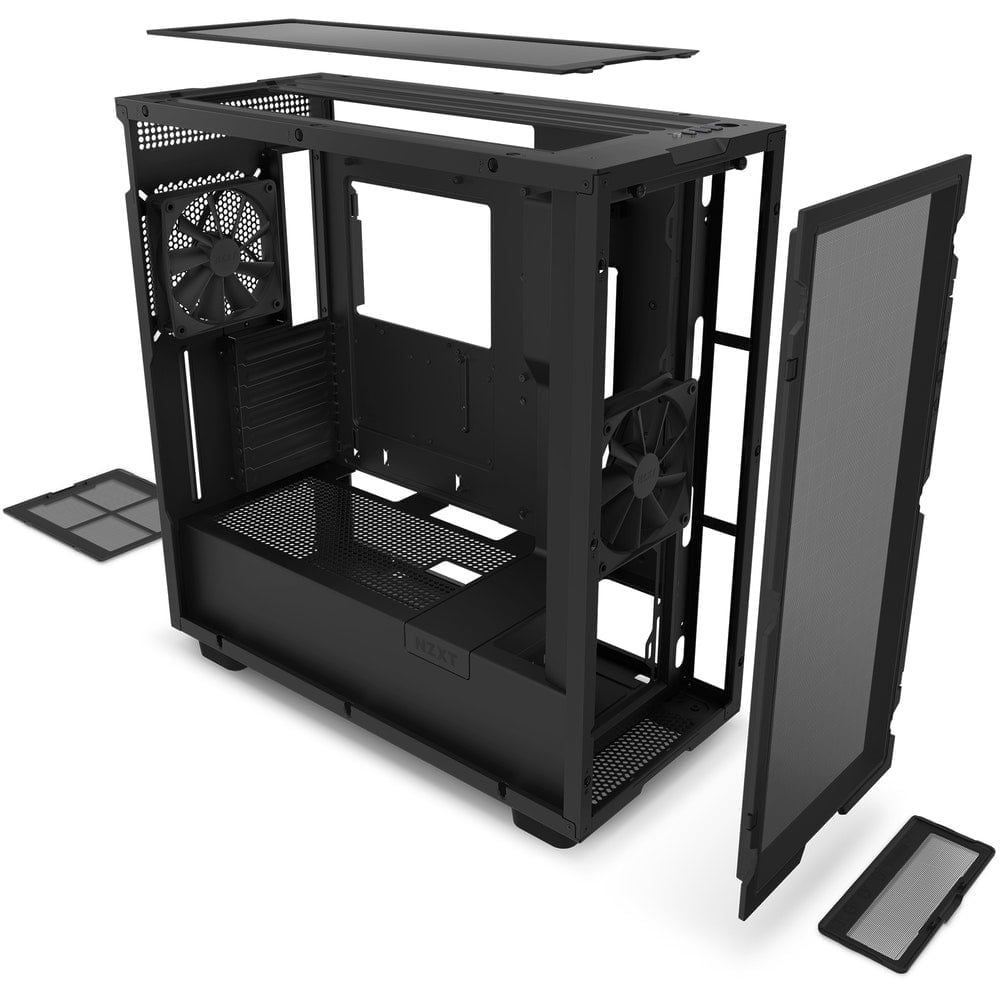

Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 360mm with Push/Pull
Top:Up to 360mm
Rear:Up to 140mm
FAN SPECS
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin
GENERAL
Warranty:2 Years
Model Number:CM-H71FW-01 (White) / CM-H71FB-01 (Black) / CM-H71FG-01 (White/Black)
UPC:815671019448 (White) / 815671019431 (Black) / 815671019486 (White/Black)
EAN:5060301697007 (White) / 5060301696987 (Black) / 5060301697045 (White/Black)
