KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material (White):SGCC Steel, Ultra-clear Tempered Glass
Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass
DIMENSIONS
Height (With Feet):505mm
Height (Without Feet):480mm
Width:230mm
Depth:480mm
Weight:10.57kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 185mm
Max GPU Clearance:Up to 400mm
Front Radiator Clearance:60mm
Top Radiator Clearance:30mm
Cable Management:18-22mm
PSU Clearance:Up to 200mm

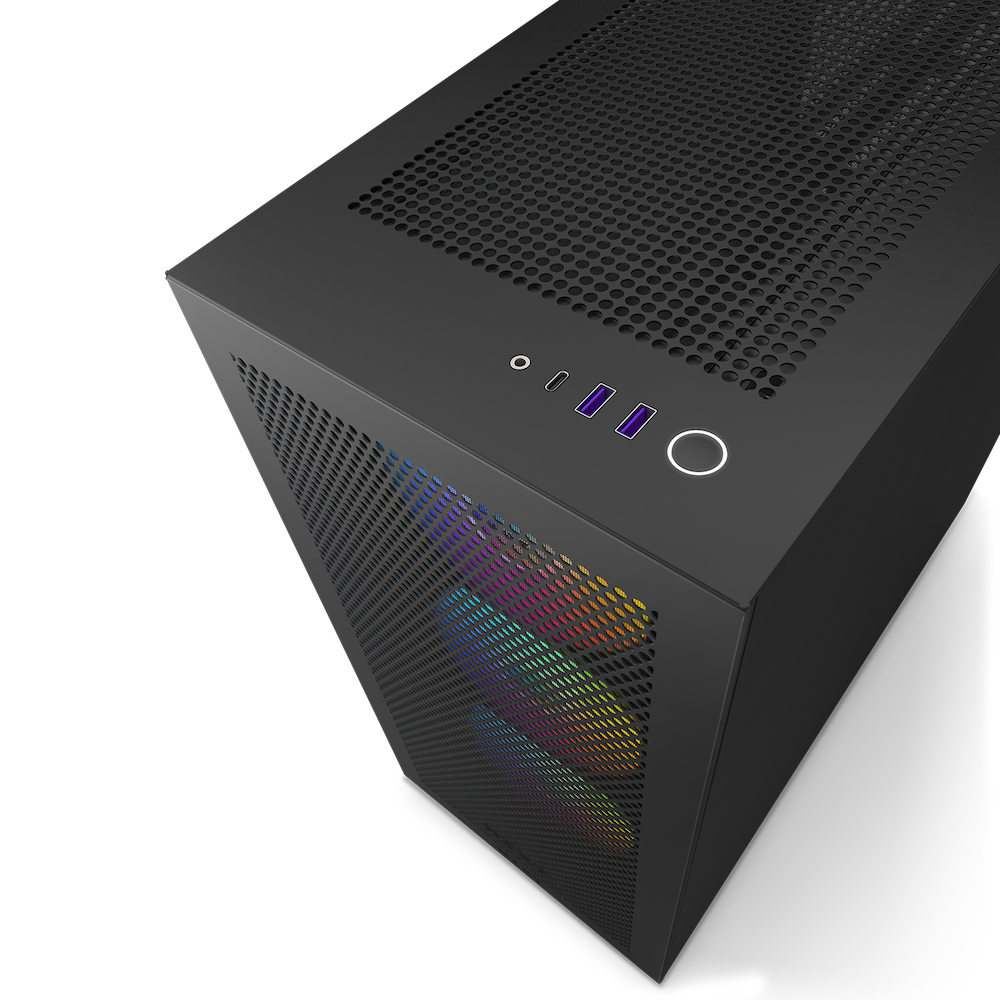

FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5":4+2
3.5":2
FAN SUPPORT
Front:3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top:3 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)

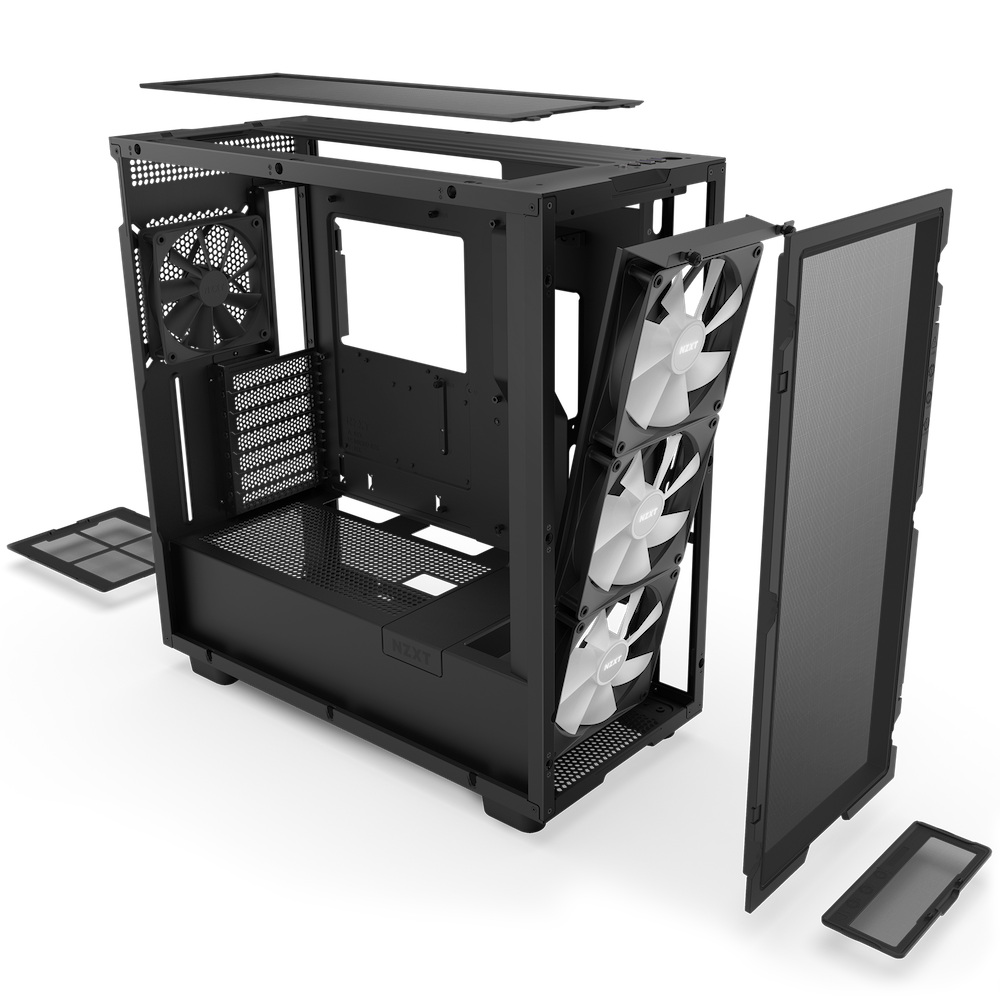

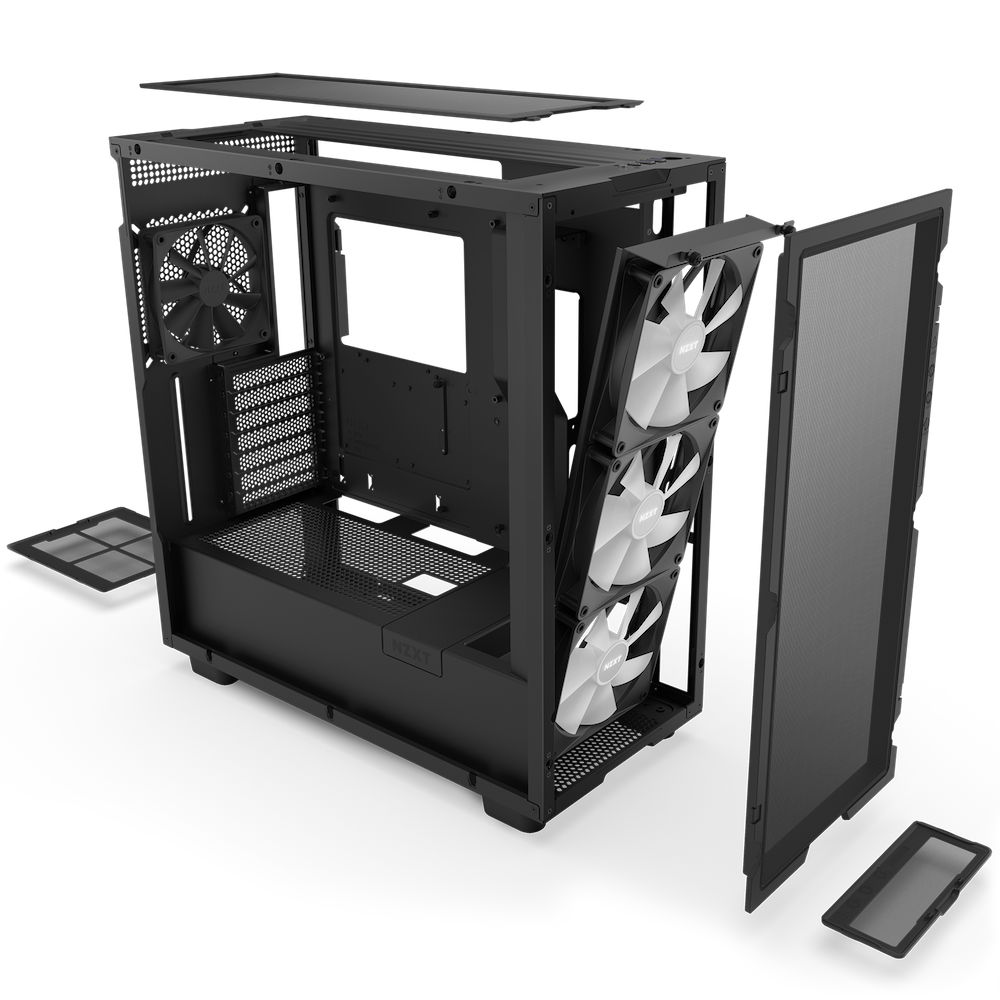

Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 360mm with Push/Pull
Top:Up to 360mm
Rear:Up to 140mm
FAN SPECS
Model:F140 RGB Core Fan (Case Version)
Speed:1200 ± 120 RPM
Airflow:61.74 CFM
Static:2.06mm-H2O
Noise:29.05 dBA
Fan Connector:3-pin
FAN SPECS
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin
GENERAL
Warranty:2 Years
Model Number:CM-H71FW-R1 (White) / CM-H71FB-R1 (Black)
UPC:810074843621 (White) / 815671019431 (Black) / 810074843614 (Black)
EAN:5056547203546 (White) / 5056547203539 (Black) / 5060301697045 (Black)
