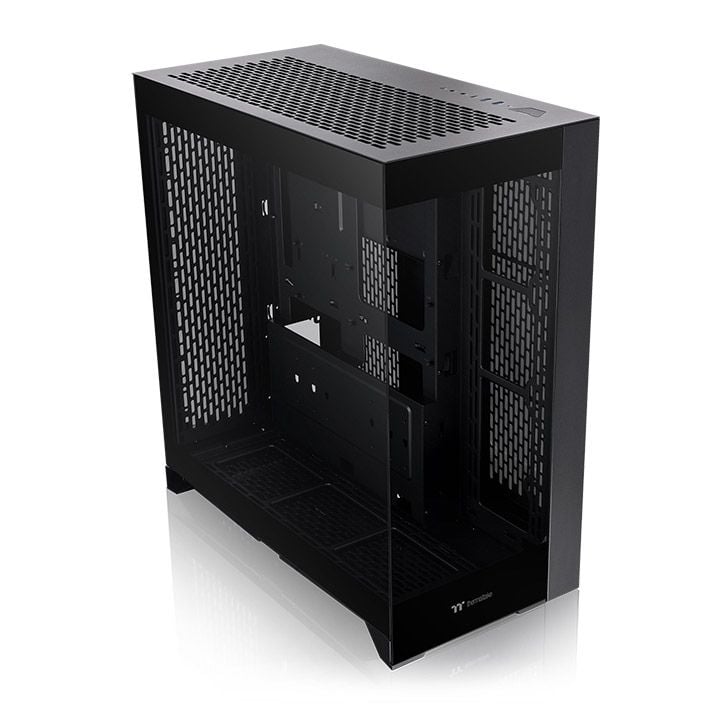

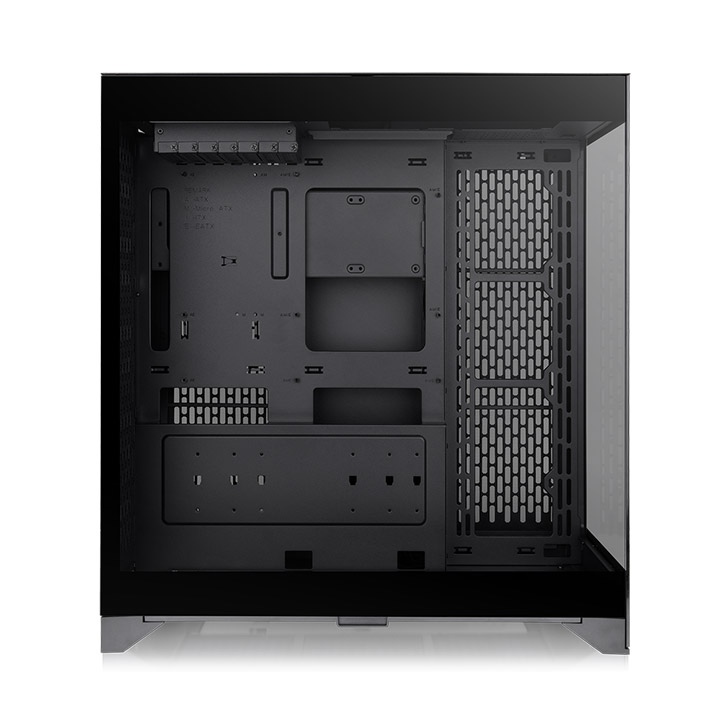

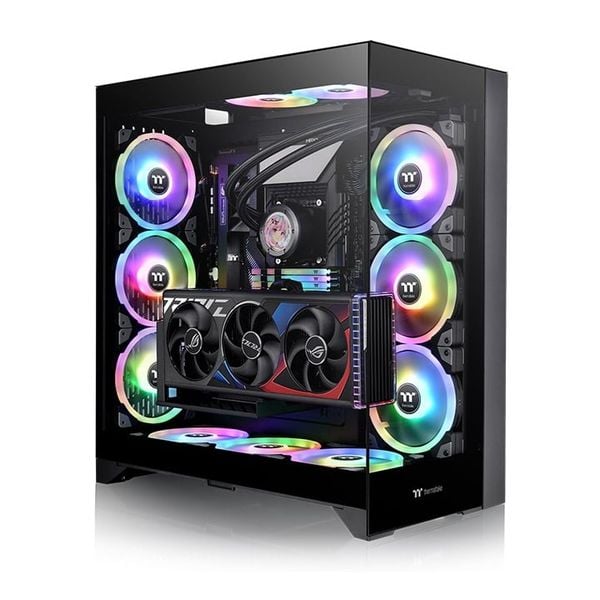

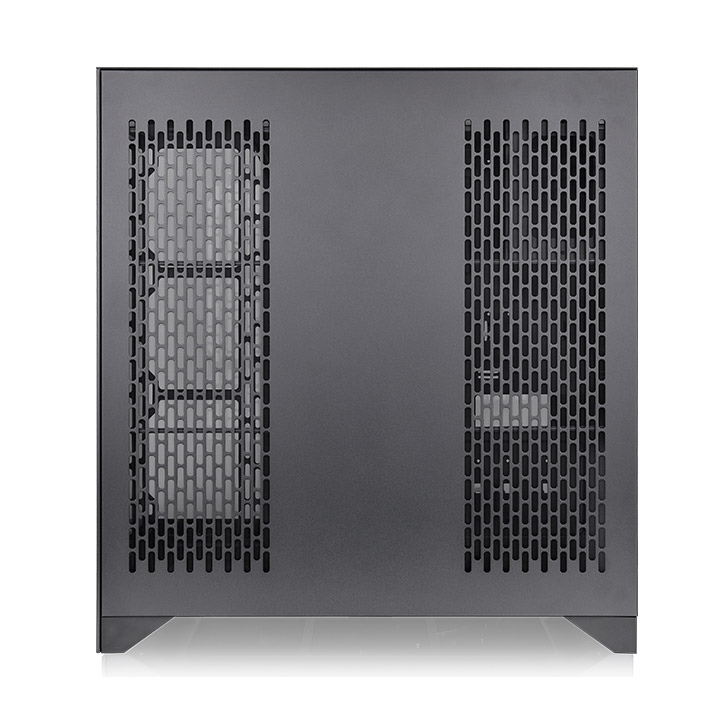

P/N | CA-1Y3-00M1WN-00 |
---|---|
SERIES | CTE |
CASE TYPE | Mid Tower |
DIMENSION (H X W X D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
NET WEIGHT | 16 kg / 35.27 lbs. |
PANEL | 4mm Tempered Glass x 2 |
COLOR | Black |
MATERIAL | SPCC |
DRIVE BAYS | 2 x 3.5”, 2 x 2.5” |
EXPANSION SLOTS | 7 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
I/O PORT | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm |
