Essentials
• Product Collection7th Generation Intel® Core™ i5 Processors
• Code Name: Products formerly Kaby Lake
• Vertical SegmentDesktop

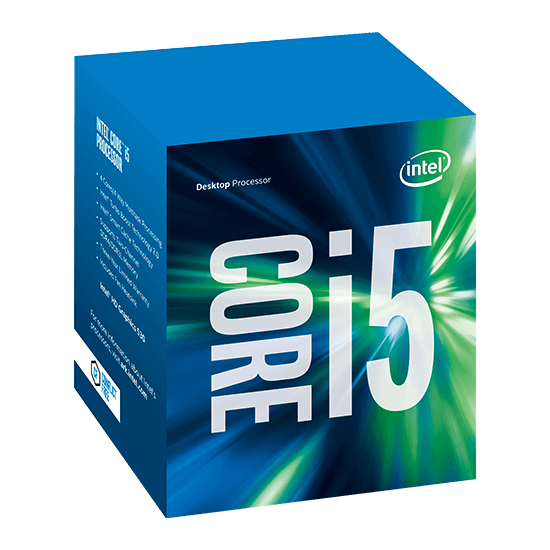

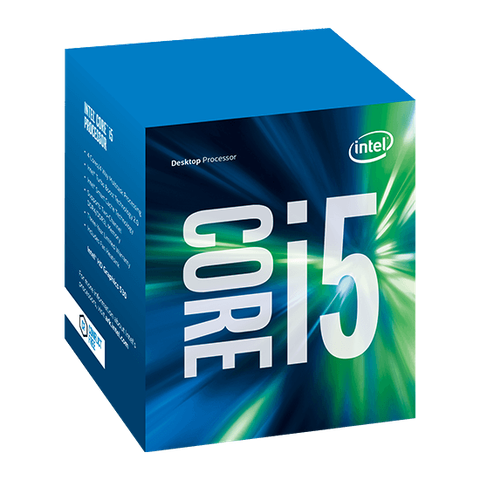

• Processor Number: i5-7500T
• StatusLaunched
• Launch Date: Q1'17
• Lithography: 14 nm
• Use ConditionsEmbedded Broad Market Commercial Temp, PC/Client/Tablet
Performance
• # of Cores: 4
• # of Threads: 4
• Processor Base Frequency: 2.70 GHz
• Max Turbo Frequency: 3.30 GHz
• Cache: 6 MB SmartCache
• Bus Speed: 8 GT/s DMI3
• # of QPI Links0
• TDP35 W
• Configurable TDP-down Frequency: 1.70 GHz
Supplemental Information
• Embedded Options Available: Yes
• DatasheetView now
Memory Specifications
• Max Memory Size (dependent on memory type): 64 GB
• Memory Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
• Max # of Memory Channels: 2
• ECC Memory Supported ‡No
Processor Graphics
• Processor Graphics ‡Intel® HD Graphics 630
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 1.10 GHz
• Graphics Video Max Memory: 64 GB
• 4K SupportYes, at 60Hz
• Max Resolution (HDMI 1.4)‡4096x2304@24Hz
• Max Resolution (DP)‡4096x2304@60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz
• DirectX* Support: 12
• OpenGL* Support: 4.5
• Intel® Quick Sync Video: Yes
• Intel® InTru™ 3D Technology: Yes
• Intel® Clear Video HD Technology: Yes
• Intel® Clear Video Technology: Yes
• # of Displays Supported ‡3
• Device ID0x5912
Expansion Options
• Scalability: 1S Only
• PCI Express Revision: 3.0
• PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
• Max # of PCI Express Lanes: 16
Package Specifications
• Sockets Supported: FCLGA1151
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2015A (35W)
• TJUNCTION80°C
• Package Size37.5mm x 37.5mm
• Low Halogen Options AvailableSee MDDS
Advanced Technologies
• Intel® Optane™ Memory Supported ‡Yes
• Intel® Turbo Boost Technology ‡2.0
• Intel® vPro™ Technology ‡Yes
• Intel® Hyper-Threading Technology ‡No
• Intel® Virtualization Technology (VT-x) ‡Yes
• Intel® Virtualization Technology for Directed I/O (VT-d)‡Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡Yes
• Intel® TSX-NIYes
• Intel® 64 ‡Yes
• Instruction Set64-bit
• Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle StatesYes
• Enhanced Intel SpeedStep® TechnologyYes
• Thermal Monitoring TechnologiesYes
• Intel® Identity Protection Technology ‡Yes
• Intel® Stable Image Platform Program (SIPP)Yes
Security & Reliability
• Intel® AES New InstructionsYes
• Secure KeyYes
• Intel® Software Guard Extensions (Intel® SGX)Yes
• Intel® Memory Protection Extensions (Intel® MPX)Yes
• Intel® OS GuardYes
• Intel® Trusted Execution Technology ‡Yes
• Execute Disable Bit ‡Yes
• Intel® Boot GuardYes
