Hãng sản xuất: INTEL
Bảo hành: 36 tháng
Product Collection10th Generation Intel® Core™ i7 Processors
- Code NameProducts formerly Comet Lake
- Vertical SegmentDesktop

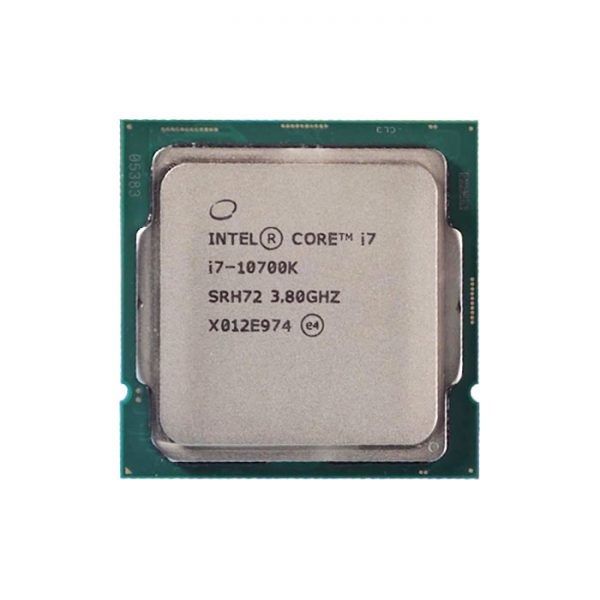

- Processor Numberi7-10700K
- StatusLaunched
- Launch DateQ2'20
- Lithography14 nm
- Use ConditionsPC/Client/Tablet
Performance
- # of Cores8
- # of Threads16
- Processor Base Frequency3.80 GHz
- Max Turbo Frequency5.10 GHz
- Cache16 MB Intel® Smart Cache
- Bus Speed8 GT/s
- Intel® Turbo Boost Max Technology 3.0 Frequency ‡5.10 GHz
- TDP125 W
- Configurable TDP-down Frequency3.50 GHz
- Configurable TDP-down95 W
Supplemental Information
- Embedded Options AvailableNo
Memory Specifications
- Max Memory Size (dependent on memory type)128 GB
- Memory TypesDDR4-2933
- Max # of Memory Channels2
- Max Memory Bandwidth45.8 GB/s
- ECC Memory Supported ‡No
Processor Graphics
- Processor Graphics ‡Intel® UHD Graphics 630
- Graphics Base Frequency350 MHz
- Graphics Max Dynamic Frequency1.20 GHz
- Graphics Video Max Memory64 GB
- 4K SupportYes, at 60Hz
- Max Resolution (HDMI 1.4)‡4096x2160@30Hz
- Max Resolution (DP)‡4096x2304@60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz
- DirectX* Support12
- OpenGL* Support4.5
- Intel® Quick Sync VideoYes
- Intel® InTru™ 3D TechnologyYes
- Intel® Clear Video HD TechnologyYes
- Intel® Clear Video TechnologyYes
- # of Displays Supported ‡3
- Device ID0x9BC5
Expansion Options
- Scalability1S Only
- PCI Express Revision3.0
- PCI Express Configurations ‡Up to 1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes16
Package Specifications
- Sockets SupportedFCLGA1200
- Max CPU Configuration1
- Thermal Solution SpecificationPCG 2015D
- TJUNCTION100°C
- Package Size37.5mm x 37.5mm
Advanced Technologies
- Intel® Optane™ Memory Supported ‡Yes
- Intel® Thermal Velocity BoostNo
- Intel® Turbo Boost Max Technology 3.0 ‡Yes
- Intel® Turbo Boost Technology ‡2.0
- Intel® vPro™ Platform Eligibility ‡Yes
- Intel® Hyper-Threading Technology ‡Yes
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
- Intel® Transactional Synchronization ExtensionsNo
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
- Intel® Identity Protection Technology ‡Yes
- Intel® Stable Image Platform Program (SIPP)Yes
Security & Reliability
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
- Intel® OS GuardYes
- Intel® Trusted Execution Technology ‡Yes
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
