MODEL

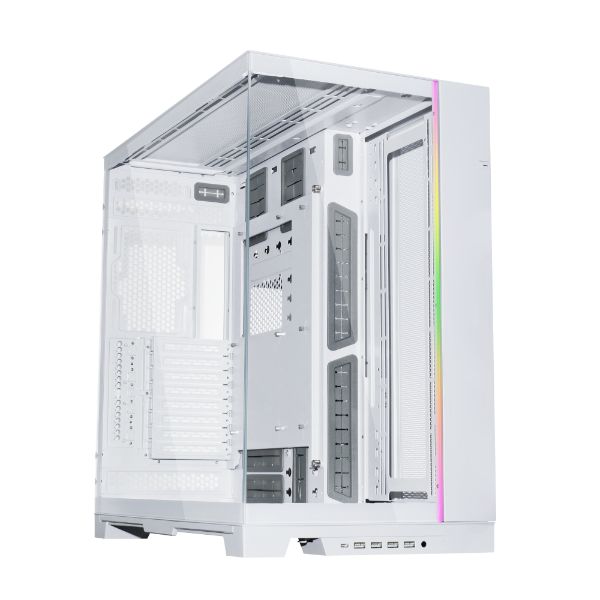

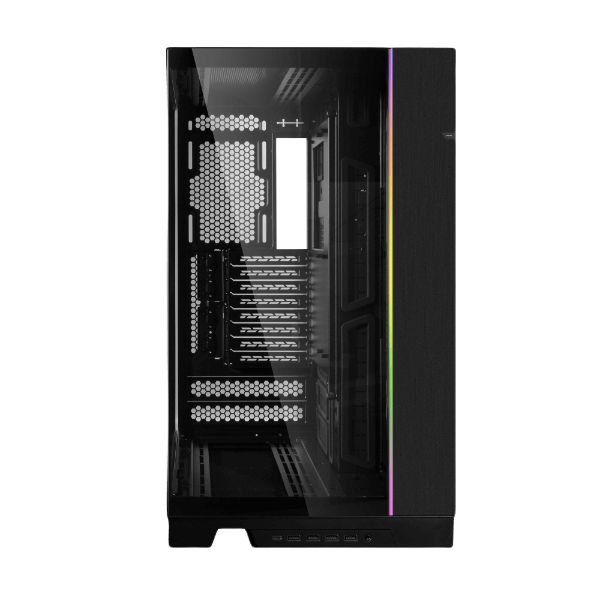

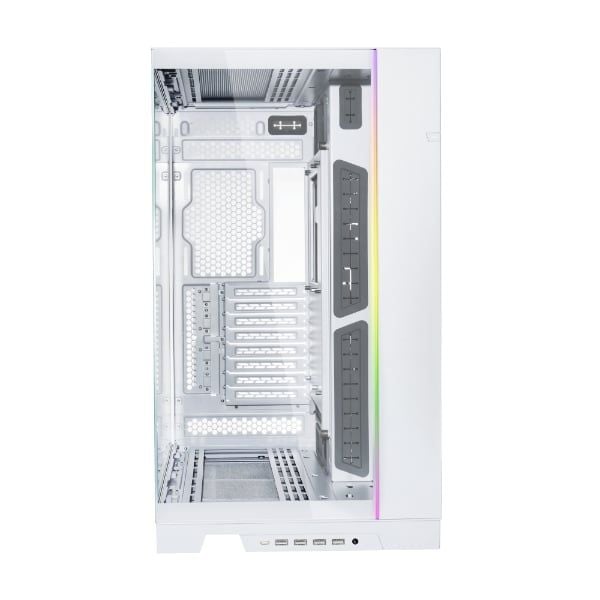

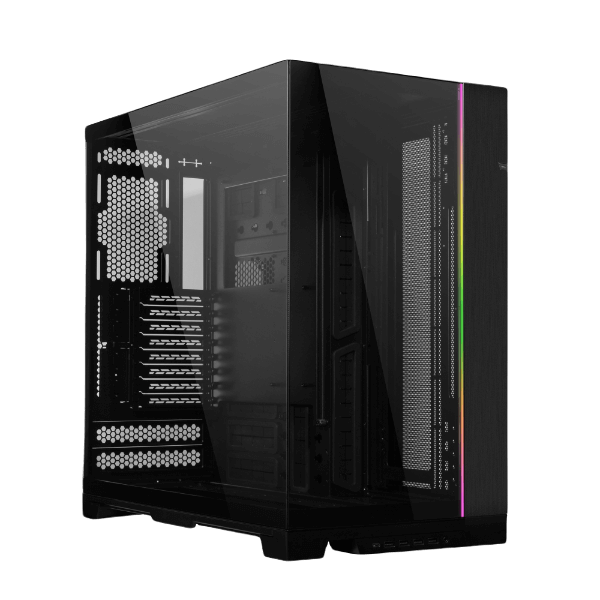

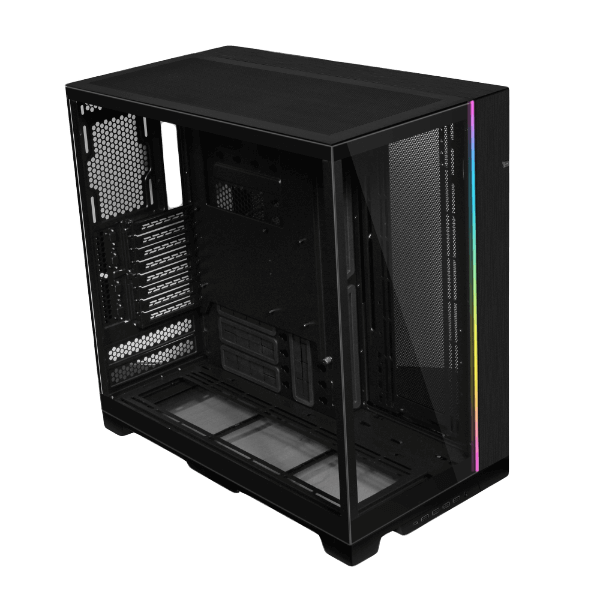

O11D EVO XL
CASE TYPE
Tower Chassis
DIMENSIONS
(D) 522 x (W) 304 x (H) 531.9 mm
Color
Black, White
Material
Steel
4.0mm tempered glass
Aluminum
Motherboard Support
EATX(under 280mm)/ATX/MICRO-ATX/MINI-ITX
Expansion Slot
8
Storage
Behind MB Tray: 3 X 2.5ʹʹ SSD
Hard Drive Cage: 4 X 3.5ʹʹ HDD or 2.5ʹʹ SSD
GPU Length Clearance
460mm(Max)
CPU Cooler Height Clearance
167mm(Max)
PSU
ATX(under 220mm
Radiator Support
(Top) 360 / 420 / 240 / 280
(Side) 360 / 420 / 240 / 280
(Bottom) 360 / 420 / 240 / 280
Fan Support
(Top) 120mm x3 / 140mm x3
(Side) 120mm x3 / 140mm x3
(Bottom) 120mm x3/ 140mm x3
(Rear)120 mm x1 or 2
Dust Filter
1 x Bottom
1 x Top
2 x Side
I/O Ports
Power Button, Reset Button, USB 3.0 x 4, Audio x 1,
USB type C, Color Button, Mode Button.
