Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |
Model | PRIME H410M-F |
CPU hỗ trợ | Intel |
Chipset | H410 |
RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
1 x PCIe 3.0 x1 |
Ổ cứng hỗ trợ | Total supports 4x SATA 6Gb/s ports
Intel® H410 Chipset :
4 x SATA 6Gb/s port(s) |
Cổng kết nối (Internal) | 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector |

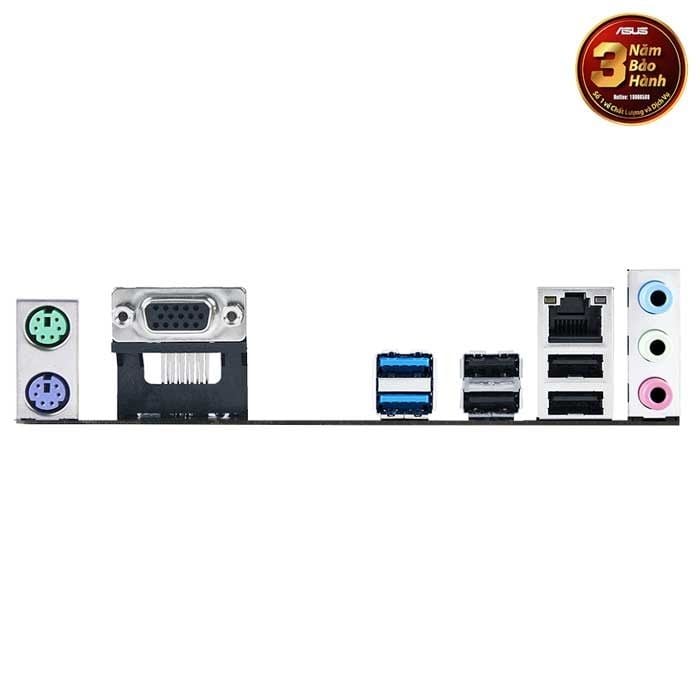

Cổng kết nối (Back Panel) | 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s) |
LAN / Wireless | Realtek® RTL8111H |
Kích cỡ | mATX Form Factor
21.3 cm x 18.3 cm |
