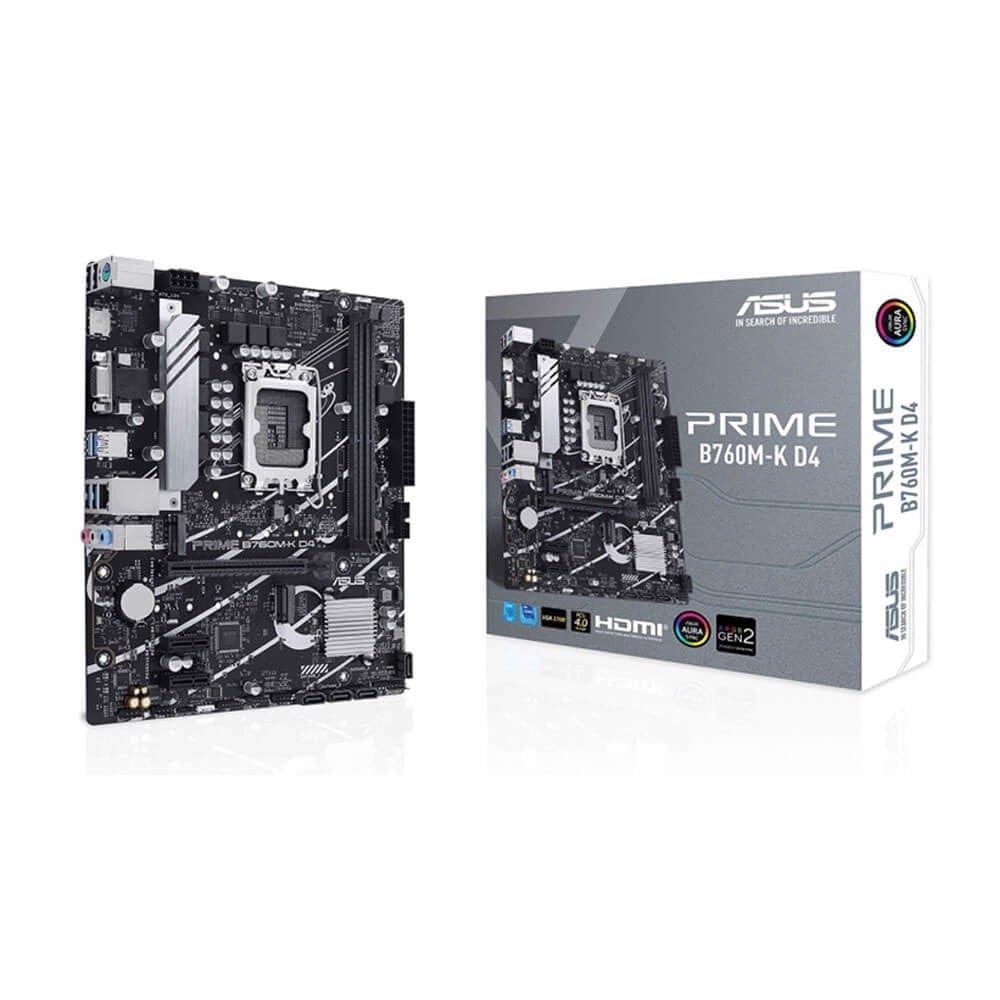

Tên Hãng | Asus |
Model | PRIME B760M-K DDR4 |
CPU hỗ trợ | Intel |
Chipset | B760 |
RAM hỗ trợ | 4 2 x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)
3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
2 x PCIe 4.0 x1 slots |
Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Cổng kết nối (Internal) | Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header |
Cổng kết nối (Back Panel) | 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port |
LAN / Wireless | 1 x Realtek 2.5Gb Ethernet |
Kích cỡ | mATX Form Factor |
