| Socket | LGA1200 |
| Chipset | Intel® Z590 Chipset |
| CPU (hỗ trợ tối đa) | - 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| OS hỗ trợ | Windows 10 64bit |
| Bộ Nhớ |
| Bộ nhớ RAM tối đa | 128 GB |
| Số khe cắm | 4 |
| Kênh bộ nhớ | Dual |
| RAM | DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Nguồn |
| Kích thước nguồn hỗ trợ | |
| Đồ Họa và Âm Thanh |
| Audio | - Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Rear optical S/PDIF out port
- - Premium Japanese audio capacitors
- - Dedicated audio PCB layers
|
| Kết Nối Mạng |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Kết nối Wireless | - V-M.2 slot only (Key E, CNVi & PCIe)*
- * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
|

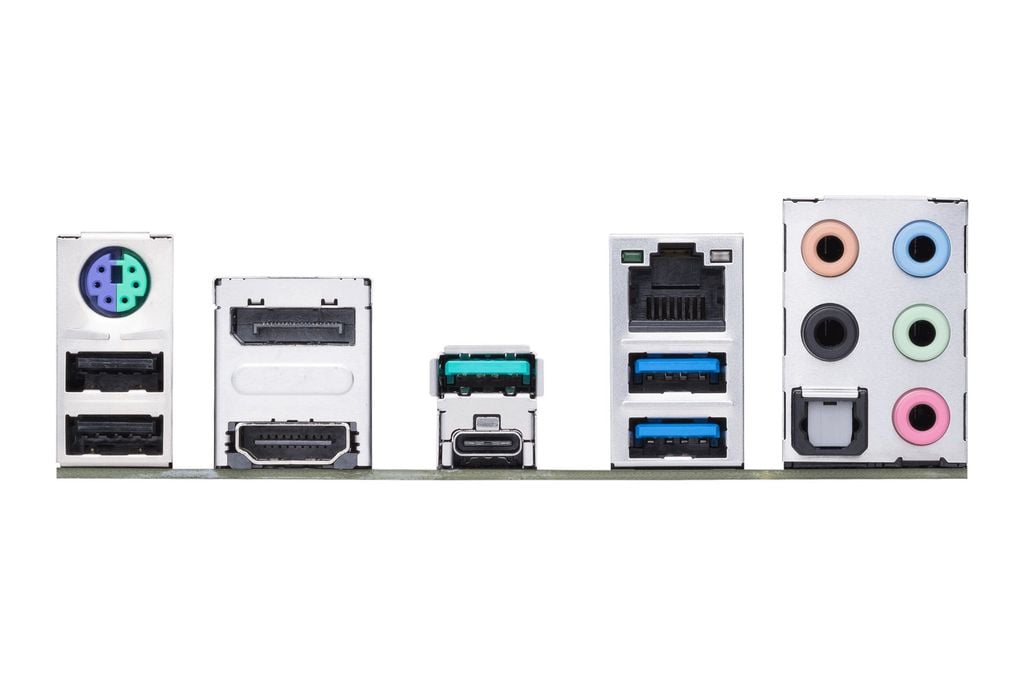

| Cổng Kết Nối |
| Các cổng khác | 1 x V-M.2 slot (Key E) |
| PS/2 keyboard/ mouse combo port | 1 x PS/2 Keyboard/Mouse combo port |
| RJ45 | 1 x Realtek 2.5Gb Ethernet port |
| USB 2.0 | 2 x USB 2.0 ports (2 x Type-A) |
| USB 3.2 | - 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
|
| USB-C | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| Cổng Audio | - 5 x Audio jacks
- 1 x Optical S/PDIF out port
|
| HDMI | 1 x HDMI 2.0 |
| Display Port | 1 x DisplayPort 1.4 |
| Kết Nối I/O Bên Trong |
| SATA III 6Gb/s | 4 |
| M.2 SLOT | 3 |
| PCI-EX1 | 2 x PCIe 3.0 x1 slots |
| PCI-EX4 | 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| PCI-EX16 | - 1 x PCIe 4.0/3.0 x16 slot
- - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
|
| Tính Năng Khác |
| Tính năng đặc biệt khác | - ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - Q-DIMM
- - Q-Slot
- ASUS Thermal Solution
- - Flexible M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- AURA Sync
- - AURA RGB headers
- - Addressable Gen 2 RGB headers
|
