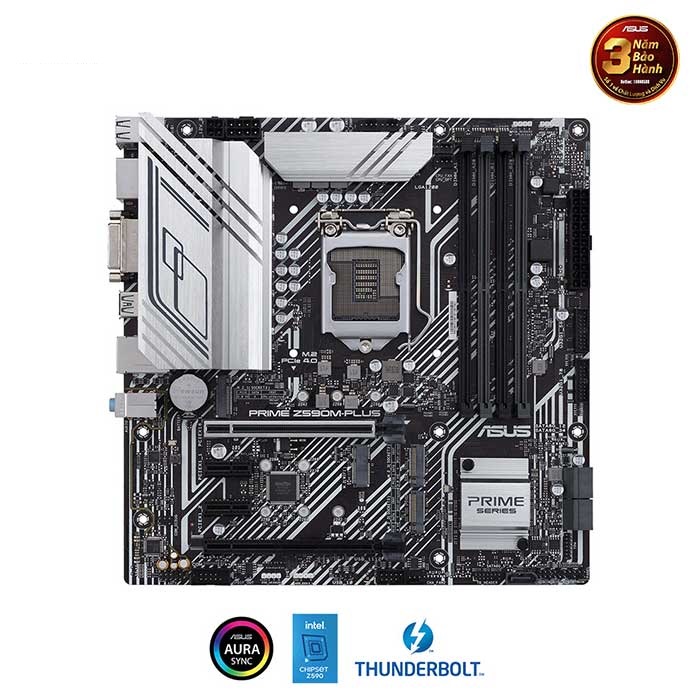

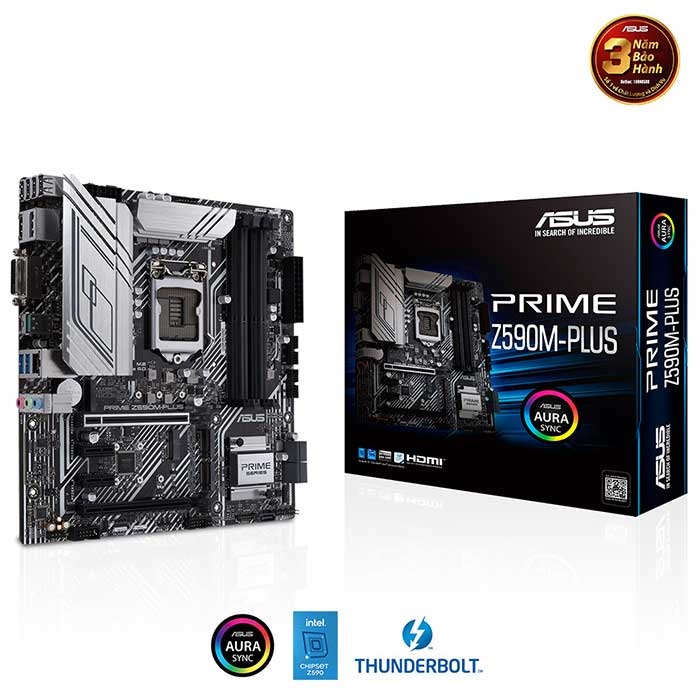

Mainboard Asus Z590M Plus Prime

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME Z590M-PLUS

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 11&10 Intel® Core Socket LGA1200

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM Slots ( tối đa 128GB )
Supports DDR4 5133(OC)/5000(OC)4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

1 x PCI Express 4.0/3.0 x16 Slots
2 x PCI Express 3.0 x 16 Slots

Ổ cứng hỗ trợ

6 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
5 x SATA 6Gb/s ports
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMITM port
1 x Intel® I219V 1Gb Ethernet
3 x Audio jacks

Lan/Wireless

1 x Realtek 2.5Gb Ethernet

Kích cỡ

Micro ATX Form Factor: 9.6 inch x 9.6 inch (24.4cm x 24.4cm)
