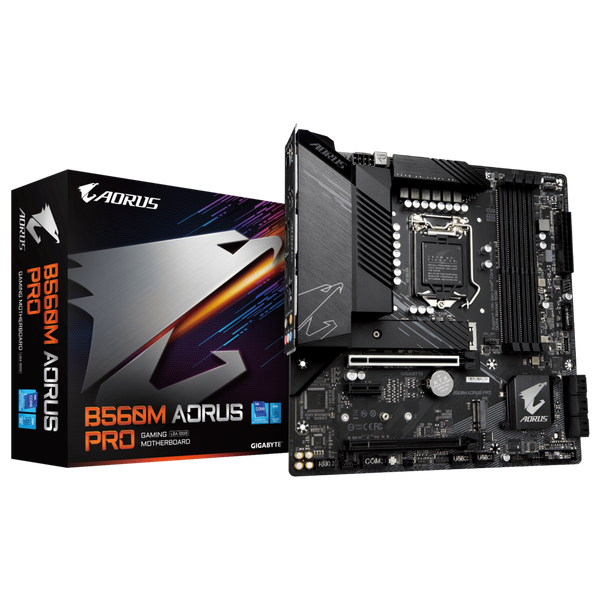

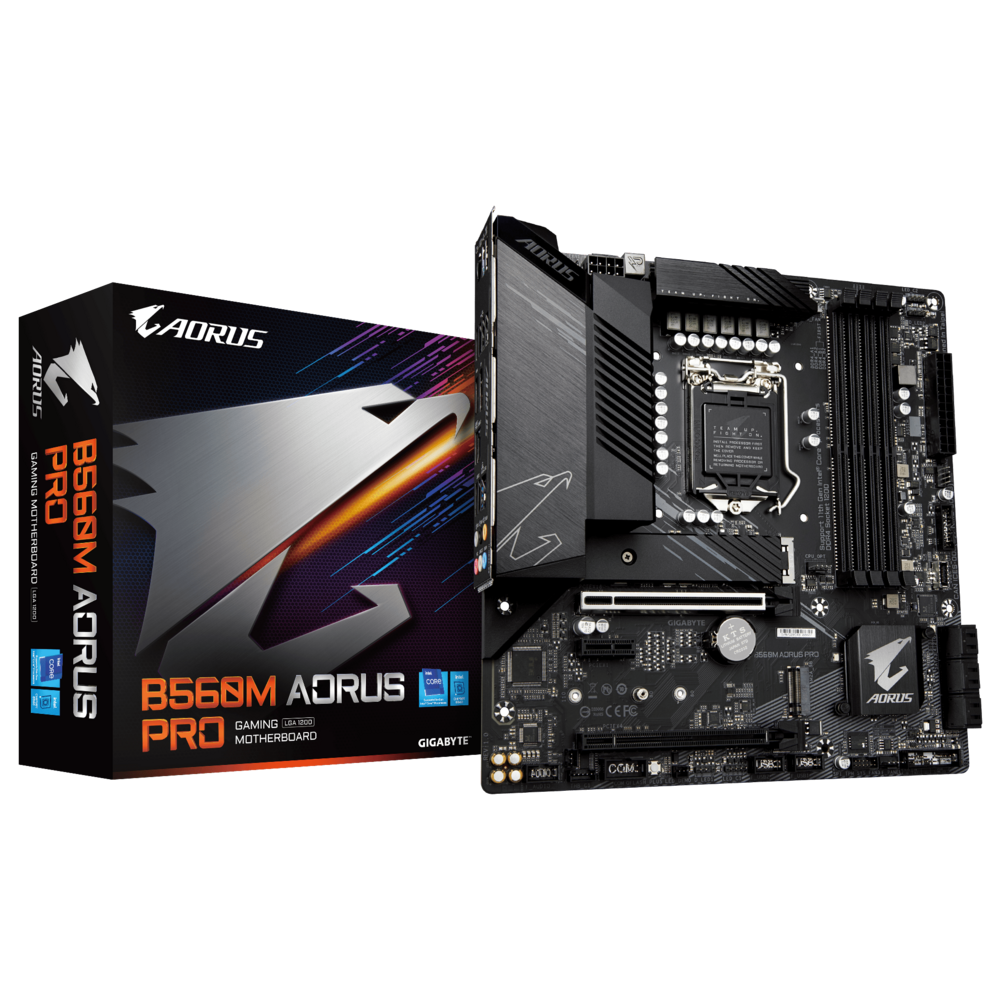

GIGABYTE B560M AORUS PRO Mainboard

Thương hiệu: GIGABYTE Mã sản phẩm: BH 36T
3,290,000₫ 3,900,000₫
-16%
(Tiết kiệm: 610,000₫)

GIGABYTE B560M AORUS PRO Mainboard KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

Thông tin chung:

  • Nhà sản xuất: Gigabyte
  • Bảo hành: 36 Tháng
  • Tình trạng: Mới 100%

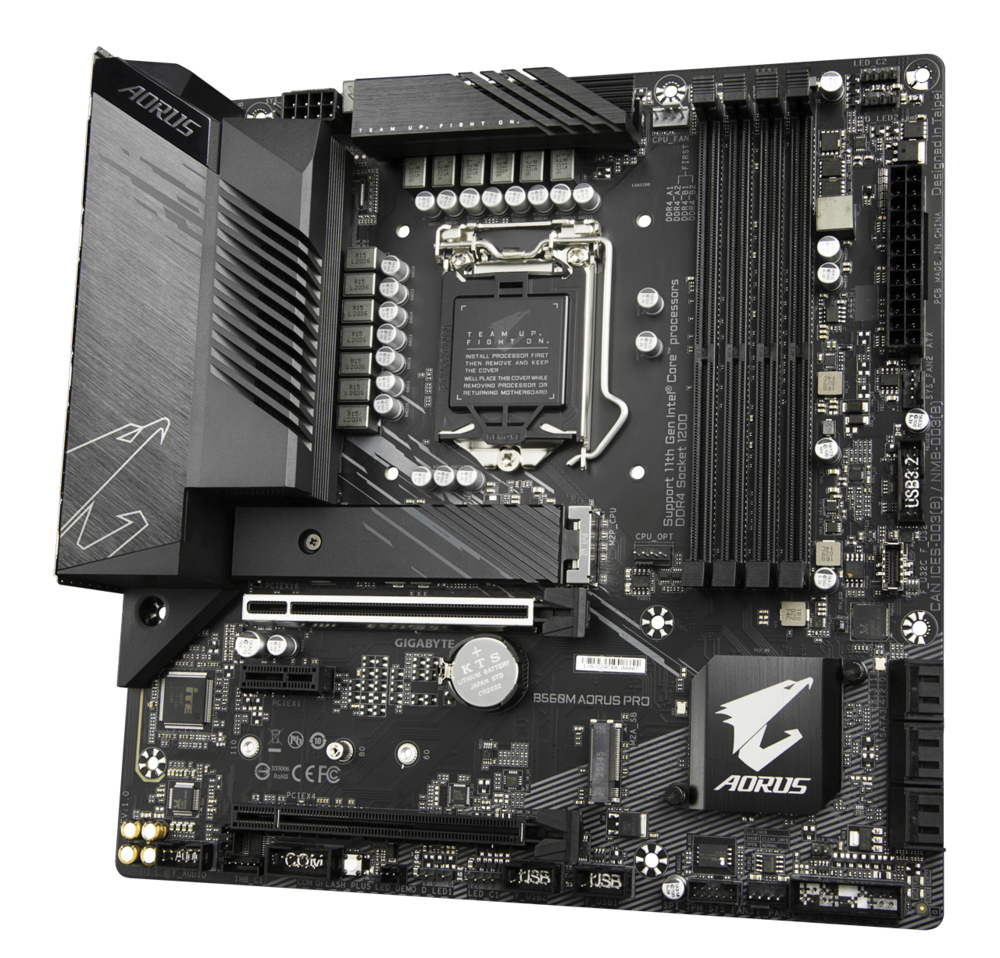

Mainboard GIGABYTE B560M AORUS PRO (rev. 1.0)

Thông số kỹ thuật:

Hãng sản xuất:GIGABYTE
Series:B560
Model:B560M AORUS PRO (rev. 1.0)







CPU:

LGA1200 package:
  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
  3. L3 cache varies with CPU
Chipset:Intel® B560 Express Chipset















Memory:

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



Audio:

Realtek® Audio codec

High Definition Audio

2/4/5.1/7.1-channel

LAN:Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)



Expansion Slots:

1 x PCI Express x16 slot, running at x16 (PCIEX16)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

Multi-Graphics TechnologySupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies



Storage Interface:

CPU1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*

Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors












USB:

Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support
  2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen1 ports on the back panel
  4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
  1. 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
  2. 2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hub:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)



















Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

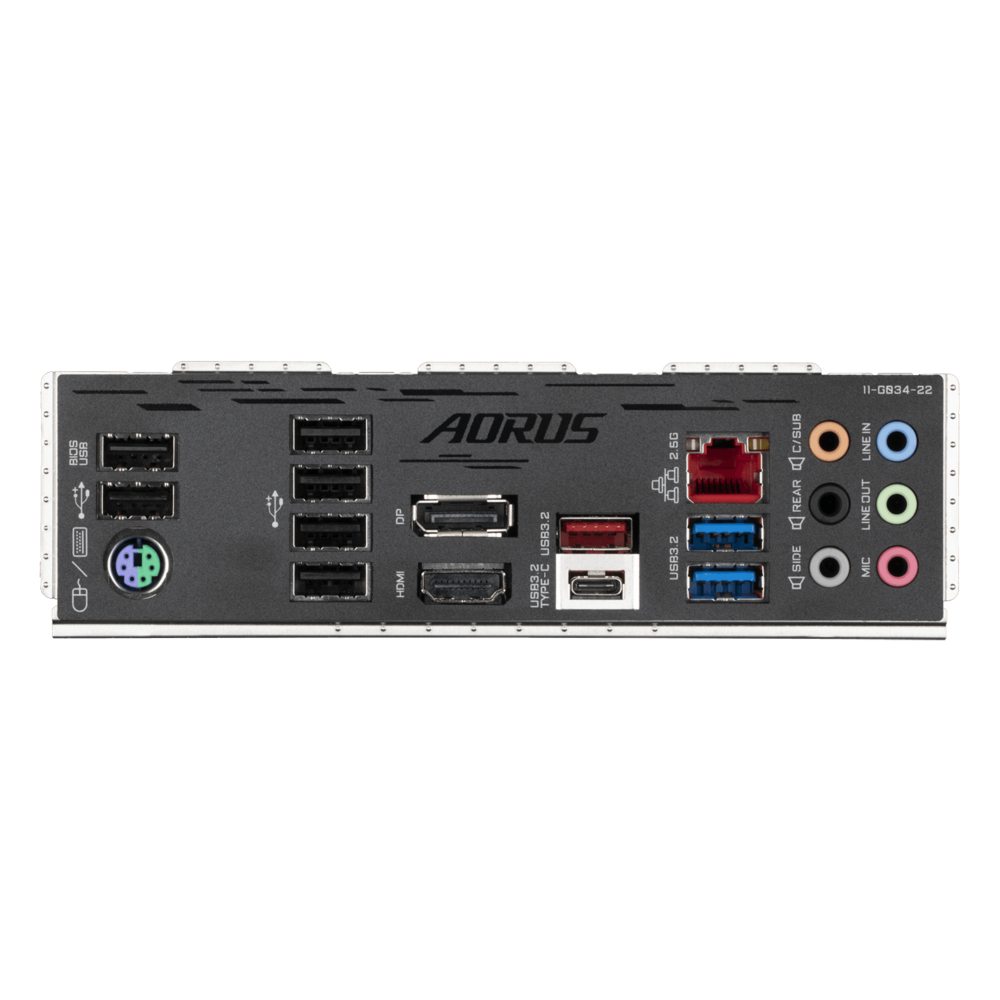

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen2x2 support

1 x USB 3.2 Gen2 Type-A port (red)

2 x USB 3.2 Gen1 ports

6 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

6 x audio jacks

I/O Controller:iTE® I/O Controller Chip





H/W Monitoring:

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control



BIOS:

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features:

Support for APP Center

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software:

Norton Internet Security (OEM version)

cFosSpeed

Operating System:Support for Windows 10 64-bit
Form Factor:

Micro ATX Form Factor

24.4cm x 24.4cm

Đánh giá chi tiết mainboard GIGABYTE B560M AORUS PRO (rev. 1.0)

Mainboard GIGABYTE B560M AORUS PRO là một trong những dòng bo mạch chủ thế hệ mới sử dụng thiết kế nguồn CPU kỹ thuật số 12 + 1 pha. Bao gồm cả Bộ điều khiển PWM kỹ thuật số và DrMOS. Bộ điều khiển kỹ thuật số 100% này và 8 đầu nối nguồn CPU chân rắn bổ sung.

B560M AORUS PRO mang đến độ chính xác đáng kinh ngạc trong việc cung cấp năng lượng cho các thành phần nhạy cảm với năng lượng và ngốn điện nhất của mainboard. Cho phép những người đam mê có được hiệu suất tối đa tuyệt đối từ CPU Intel thế hệ thứ 11 mới.

B560M AORUS sử dụng thiết kế tản nhiệt Hoàn toàn được che phủ hiệu suất cao với Tản nhiệt MOSFET có độ phủ cao và tấm tản nhiệt dày, mang lại hiệu suất làm mát MOSFET tối ưu cho những người đam mê, ép xung và game thủ.

AORUS đang cung cấp một nền tảng đã được thử nghiệm và chứng minh để đảm bảo khả năng tương thích thích hợp với các cấu hình lên đến 4800MHz và hơn thế nữa.

Tất cả những gì người dùng cần làm để đạt được mức tăng hiệu suất này là đảm bảo rằng mô-đun bộ nhớ của họ có khả năng XMP và chức năng XMP được kích hoạt và kích hoạt trên bo mạch chủ AORUS của họ.

  • Với hỗ trợ RGB đầy đủ và ứng dụng RGB Fusion 2.0 được thiết kế lại, người dùng có toàn quyền kiểm soát các đèn LED bao quanh bo mạch chủ.
  • Độ phân giải âm thanh chất lượng cao và mở rộng âm thanh để tạo ra hiệu ứng âm thanh trung thực nhất cho các game thủ chuyên nghiệp.
  • LAN 2,5G cung cấp kết nối mạng lên đến 2,5 GbE, với tốc độ truyền nhanh hơn ít nhất 2 lần so với mạng 1GbE thông thường, được thiết kế hoàn hảo cho game thủ với trải nghiệm chơi game trực tuyến đỉnh cao.
  • Phần mềm tốt đi đôi với phần cứng hoàn hảo bao gồm một số phần mềm hữu ích và trực quan để giúp người dùng kiểm soát mọi khía cạnh của bo mạch chủ.
