Mainboard GIGABYTE Z590 AORUS PRO AX

Giá Cũ:7,990,000₫
Giá KM:6,990,000₫

Hãng sản xuất: GIGABYTE

Tình trạng: Mới 100%

Bảo hành: 36 tháng

Thông số kỹ thuật

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 AORUS PRO AX

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) *
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

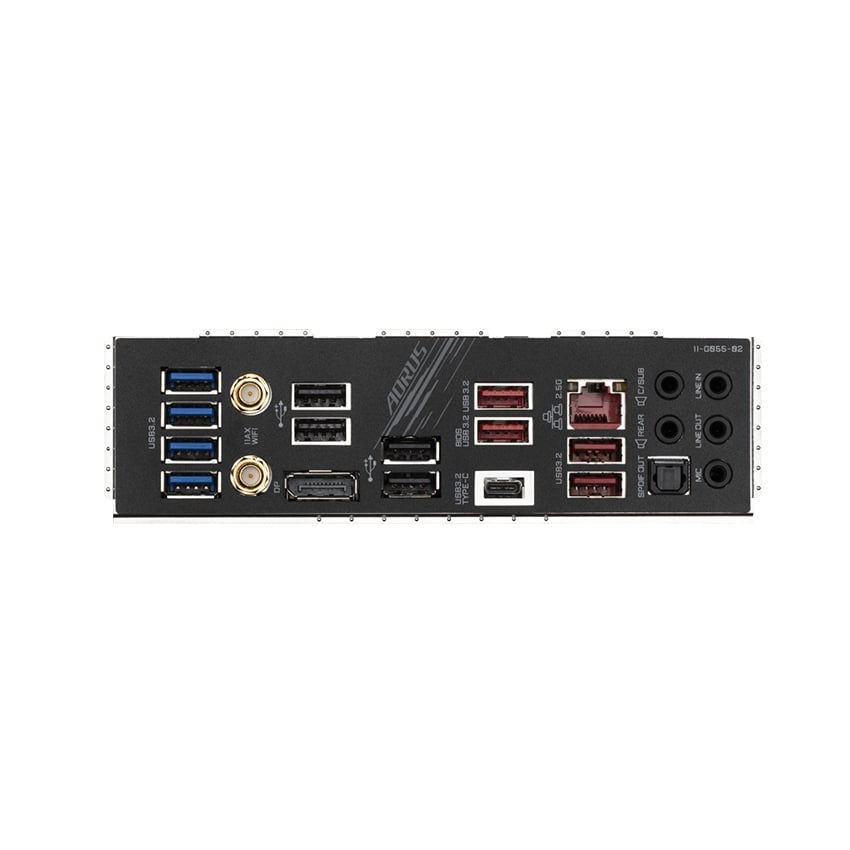

Cổng kết nối (Back Panel)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

LAN: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6 AX201:
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
