| THƯƠNG HIỆU | Gigabyte |
|---|
| BẢO HÀNH | 36 tháng |
|---|
| CHIPSET | Z790 |
|---|
| SOCKET | Intel LGA 1700 |
|---|
| HỖ TRỢ CPU | Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
|---|
| KHE RAM TỐI ĐA | 4 khe |
|---|
| RAM TỐI ĐA | 192GB |
|---|
| BUS RAM HỖ TRỢ | 4000MHz, 4800MHz, 5200(OC), 5400(OC), 5600(OC), 5800(OC), 6000(OC), 6200(OC), 6400(OC), 6600(OC), 6800(OC), 7000(OC), 7200(OC), 7400(OC), 7600(OC) |
|---|
| KÍCH CỠ MAINBOARD | ATX |
|---|
| WIRELESS & BLUETOOTH | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|---|
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|

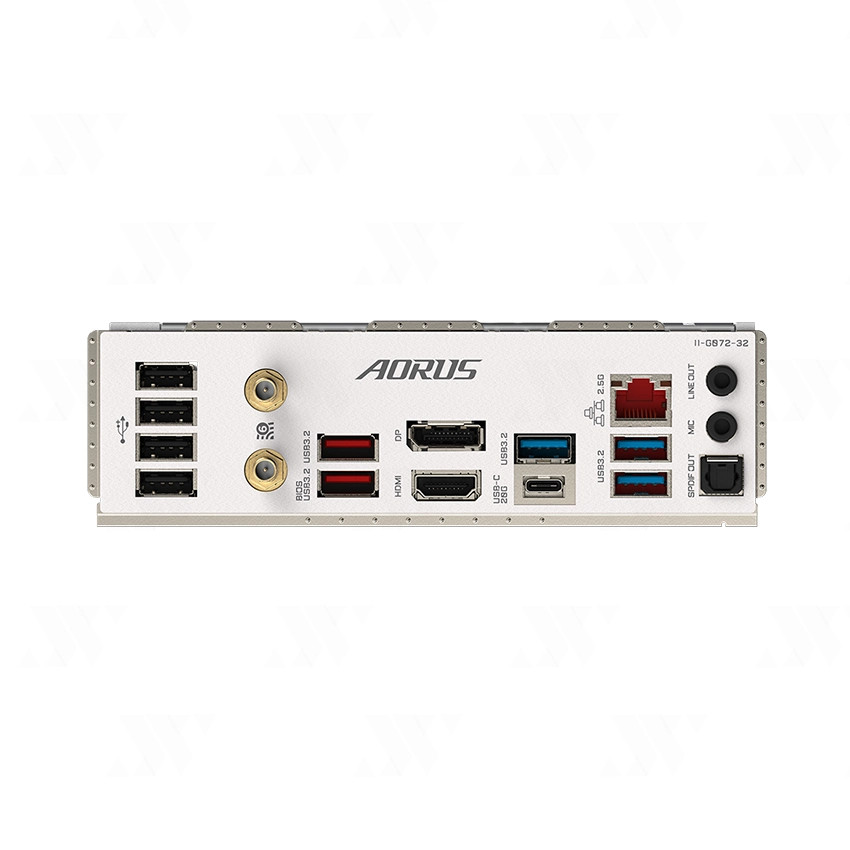

| CỔNG PHÍA SAU | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks |
|---|
| CỔNG TRÊN MAINBOARD | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper |
|---|
| CỔNG MỞ RỘNG | 3 x PCI Express x16 slot |
|---|
| LƯU TRỮ | 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support)
6 x SATA 6Gb/s connectors |
|---|
| ÂM THANH | Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
|---|
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| KÍCH CỠ | 30.5cm x 24.4cm |
|---|
| MÀU SẮC | Trắng |
|---|
