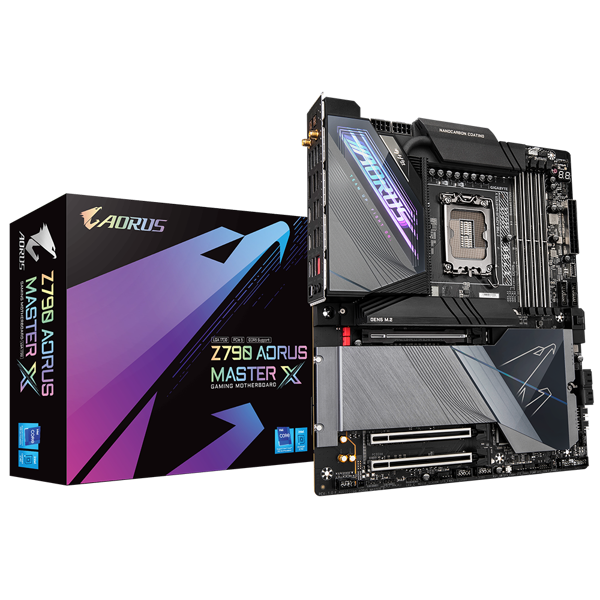

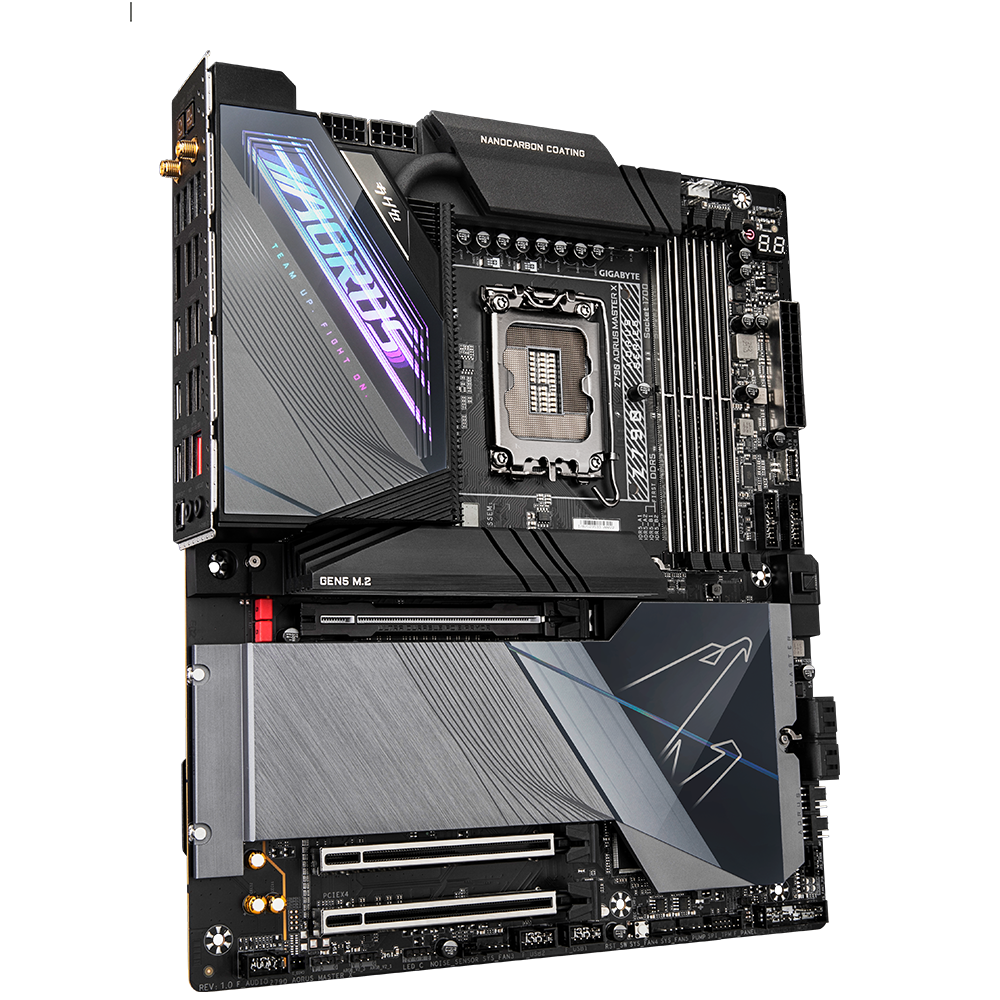

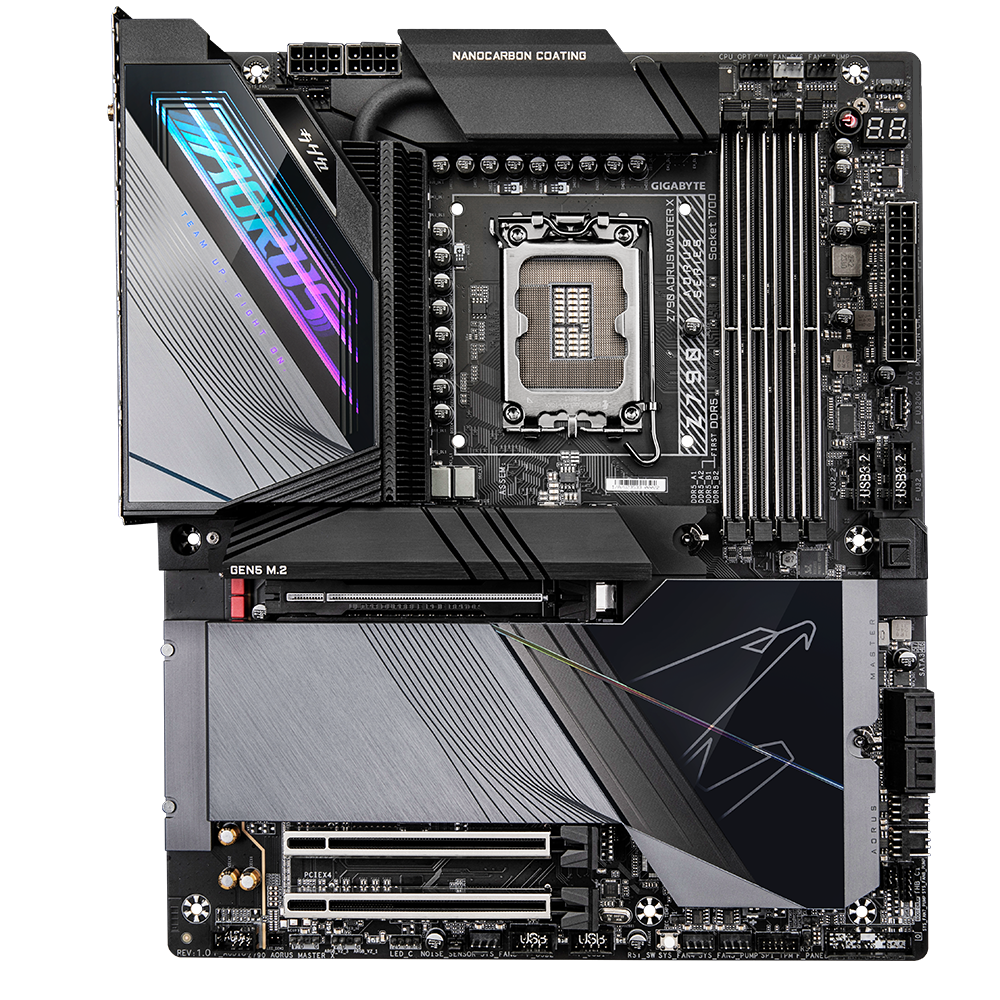

Mainboard GIGABYTE Z790 AORUS MASTER X
Mainboard GIGABYTE Z790 AORUS MASTER X
Mainboard GIGABYTE Z790 AORUS MASTER X
Mainboard GIGABYTE Z790 AORUS MASTER X

Mainboard GIGABYTE Z790 AORUS MASTER X

Thương hiệu: GIGABYTE Mã sản phẩm: BH 36T
15,090,000₫ 15,990,000₫
-6%
(Tiết kiệm: 900,000₫)

Mainboard GIGABYTE Z790 AORUS MASTER X KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
  1. Intel® Z790 Express Chipset
Memory
  1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
  3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Audio

    		Realtek® ALC1220-VB CODEC

    * The front panel line out jack supports DSD audio.

    ESS ES9118 DAC chip
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out
    LANMarvell® AQtion AQC113C 10GbE LAN chip
    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication moduleQualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    Intel® Wi-Fi 7 BE200 (PCB rev. 1.2)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    Expansion SlotsCPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

    Storage InterfaceCPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
    USBChipset:
    - 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
    Chipset+2 USB 3.2 Gen 2 Hubs:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+2 USB 3.2 Gen 1 Hubs:
    - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    Internal I/O Connectors1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    5 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    Voltage Measurement Points

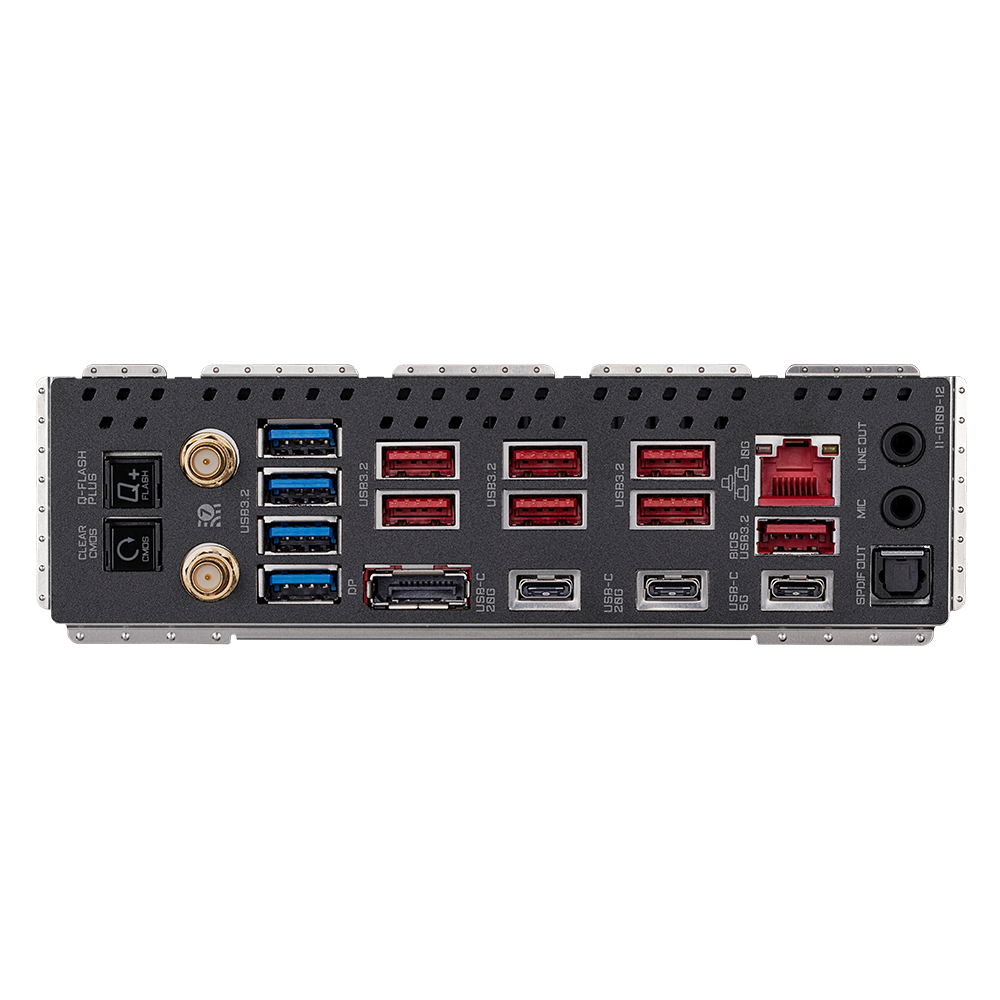

    Back Panel Connectors1 x Q-Flash Plus button
    1 x Clear CMOS button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
    7 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks

    I/O Controller

      1. iTE® I/O Controller Chip
      H/W MonitoringVoltage detection
      Temperature detection
      Fan speed detection
      Water cooling flow rate detection
      Fan fail warning
      Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


      Noise detection
      BIOS1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Unique Features

        		Support for GIGABYTE Control Center (GCC)

        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


        Support for Q-Flash
        Support for Q-Flash Plus
        Support for Smart Backup
        Bundled Software
        1. Norton® Internet Security (OEM version)
        2. LAN bandwidth management software
        Operating System
        1. Support for Windows 11 64-bit
        Form Factor
        1. E-ATX Form Factor; 30.5cm x 26.0cm
