Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 3200(Max) MHz
Mô tả sản phẩm
THÔNG SỐ
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
- Please go to www.intel.com for more compatibility information.
CHIPSET
Intel® H510 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
- 1x PCIe 3.0 x1 slot (From PCH)
- 1x M.2 slot with E key for WiFi module only(M2_2)
ONBOARD GRAPHICS
- 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2
- 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE
- 4x SATA 6Gb/s ports (From H510 Chipset)
- 1x M.2 slot (Key M)
- M2_1 slot (From H510 Chipset) 1
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (From H510 Chipset) 1
- SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® H510 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector

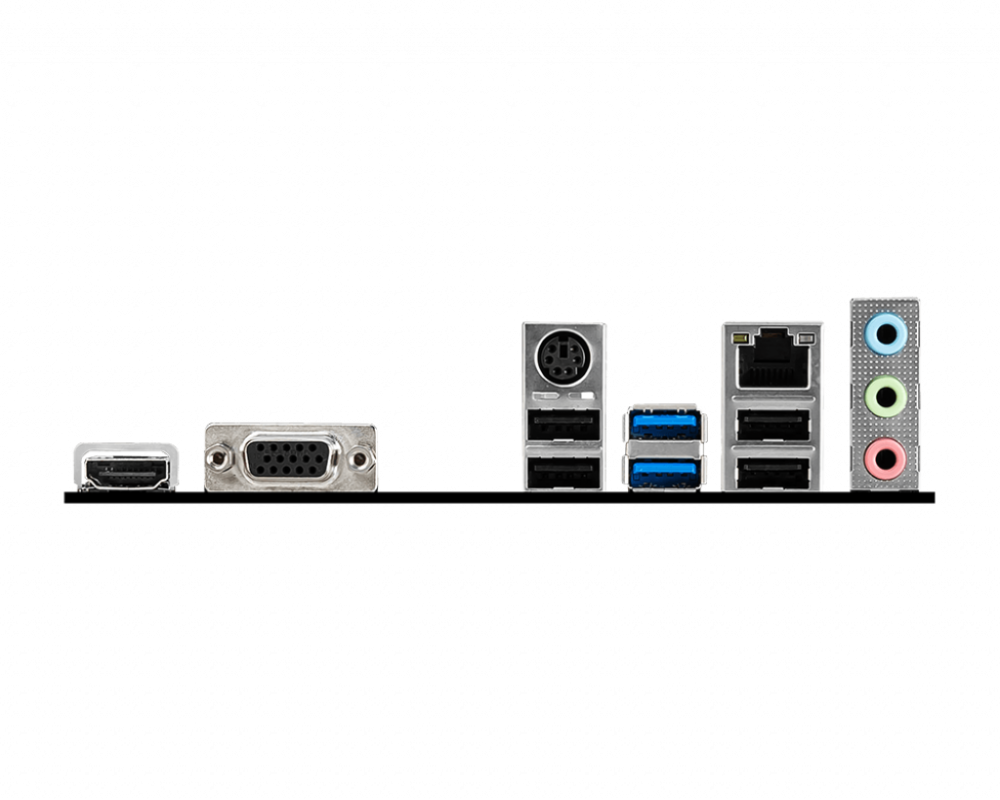

BACK PANEL PORTS
- HDMI
- VGA
- Mouse / Keyboard
- LAN port
- Audio connector
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0
DIMENSIONS
- mATX Form Factor
- 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
MOUNTING
6 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
