Thông tin chung:
- Nhà sản xuất: MSI
- Bảo hành: 36 Tháng
- Tình trạng: Mới 100%
THÔNG SỐ
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200
- Please go to intel.com for compatibility information.
CHIPSET
Intel® B560 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5066 MHz
- 1DPC 2R Max speed up to 4600+ MHz
- 2DPC 1R Max speed up to 4266+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot
- PCI_E1 (from CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
- PCI_E1 (from CPU)
- 2x PCIe 3.0 x1 slots
- PCI_E2 & PCI_E3 (From B560 chipset)
ONBOARD GRAPHICS
- 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE
- 6x SATA 6Gb/s ports (from B560 chipset)
- 2x M.2 slots (Key M)
- M2_1 slot
- Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU(From CPU)
- Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot2(from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports SATA up to 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready1
- M2_1 slot
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B560 Chipset
- 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
- 4x USB 2.0 ports are available through the internal USB 2.0 connectors
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 2x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x Serial port connector
- 1x Tuning Controller connector

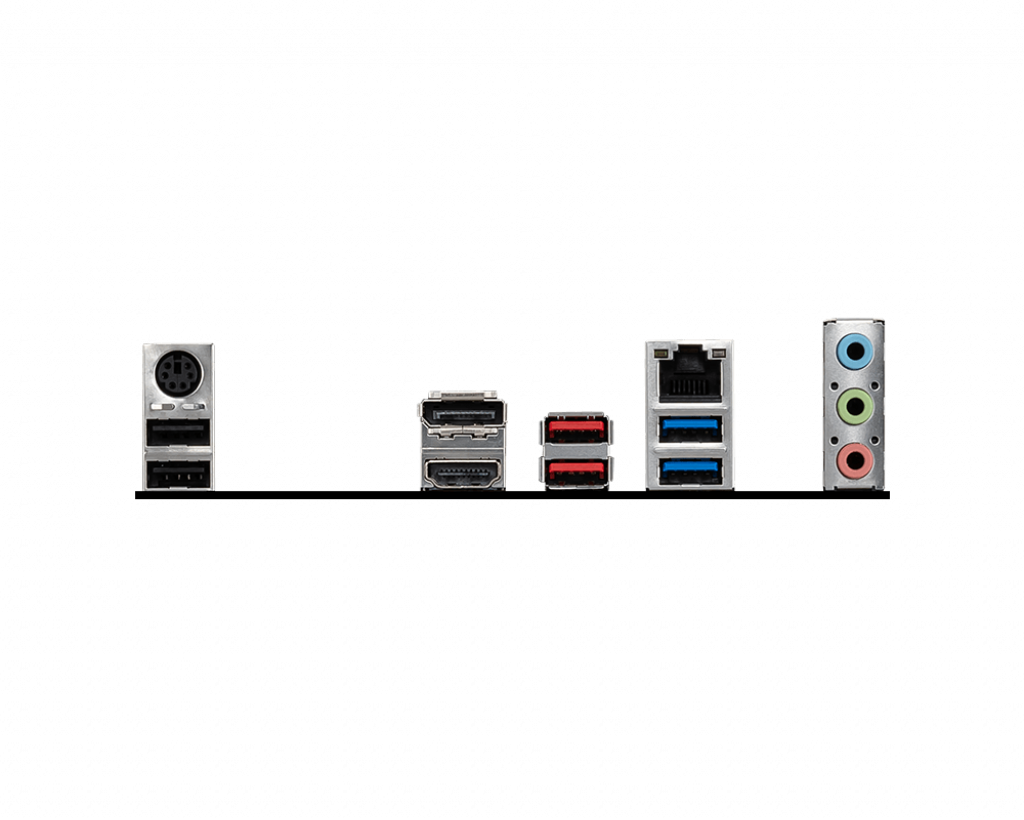

BACK PANEL PORTS
- Mouse / Keyboard
- DisplayPort
- 2.5G LAN Port
- Audio Connectors
- HD Audio Connectors
- HDMI
- USB 3.2 Gen 2 10Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING
8 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
