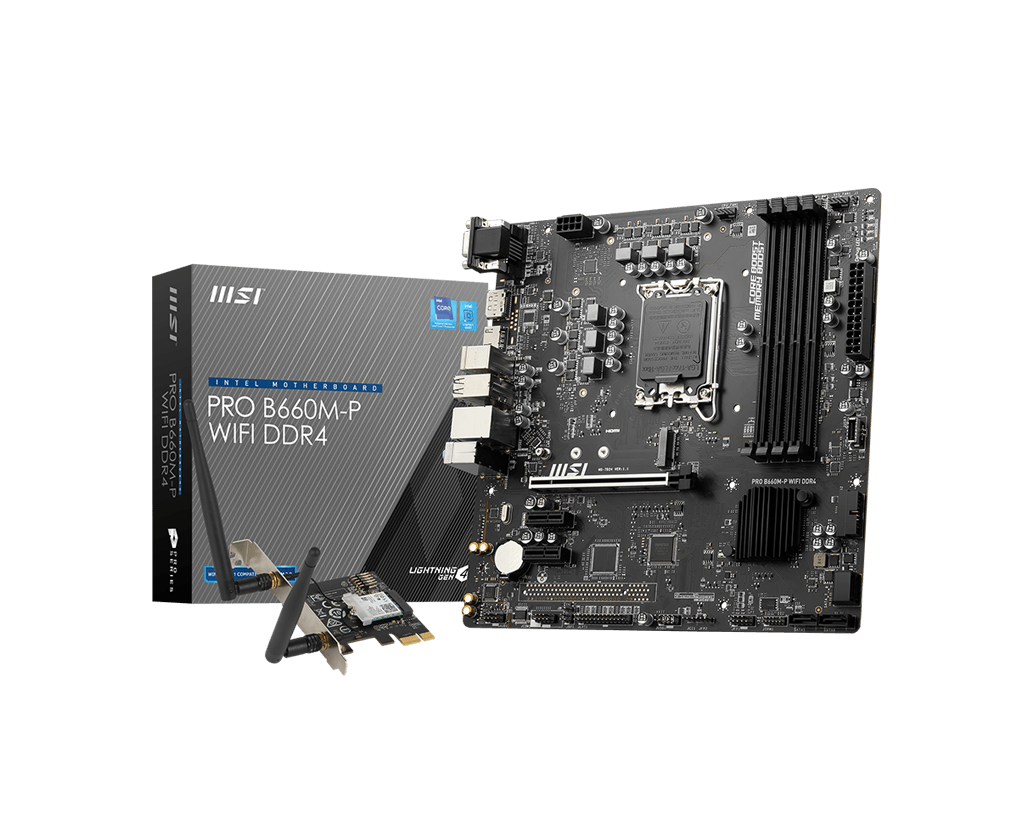

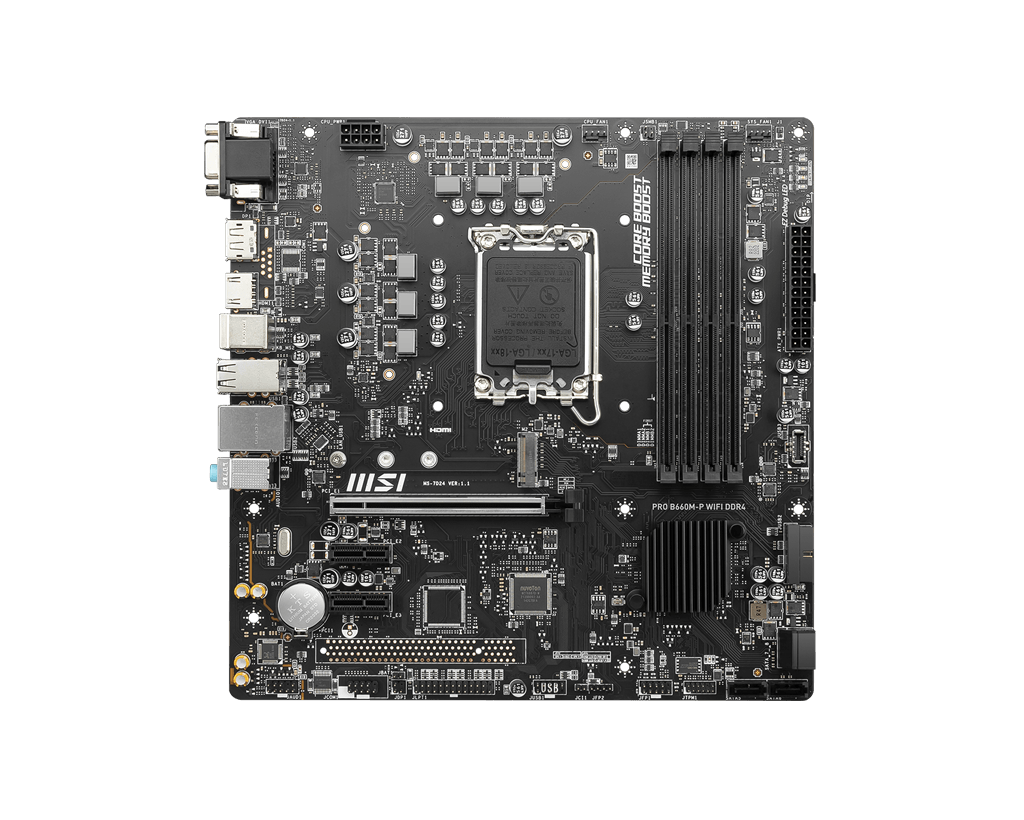

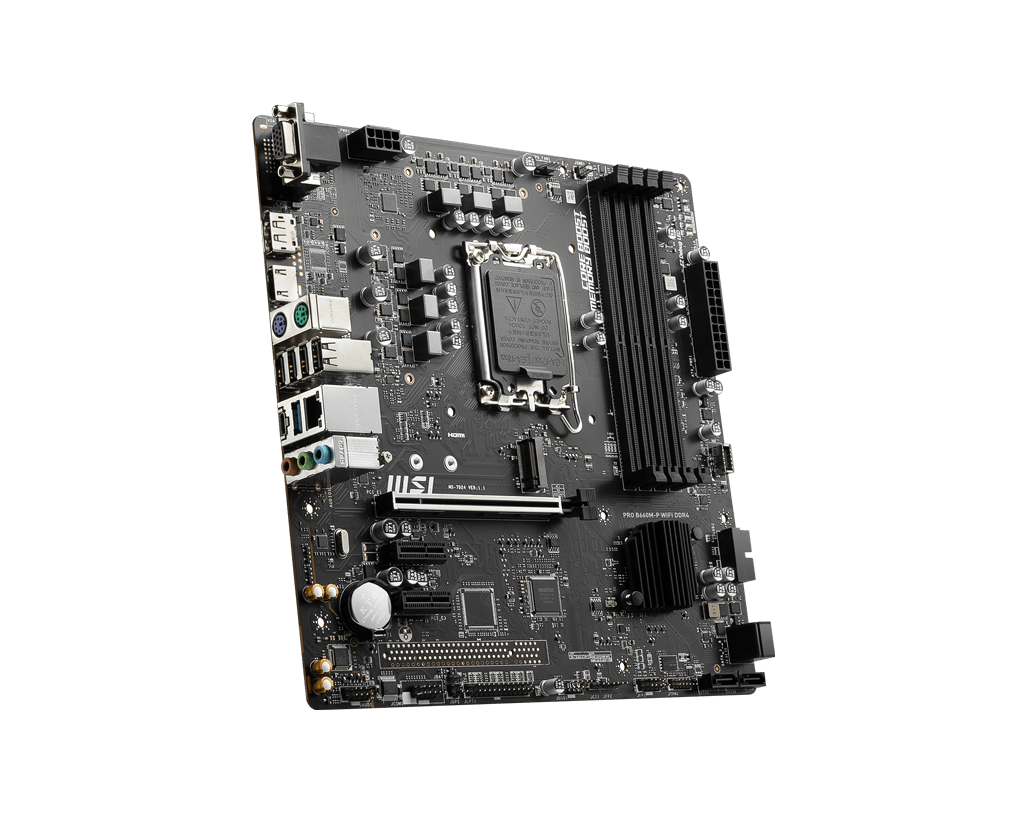

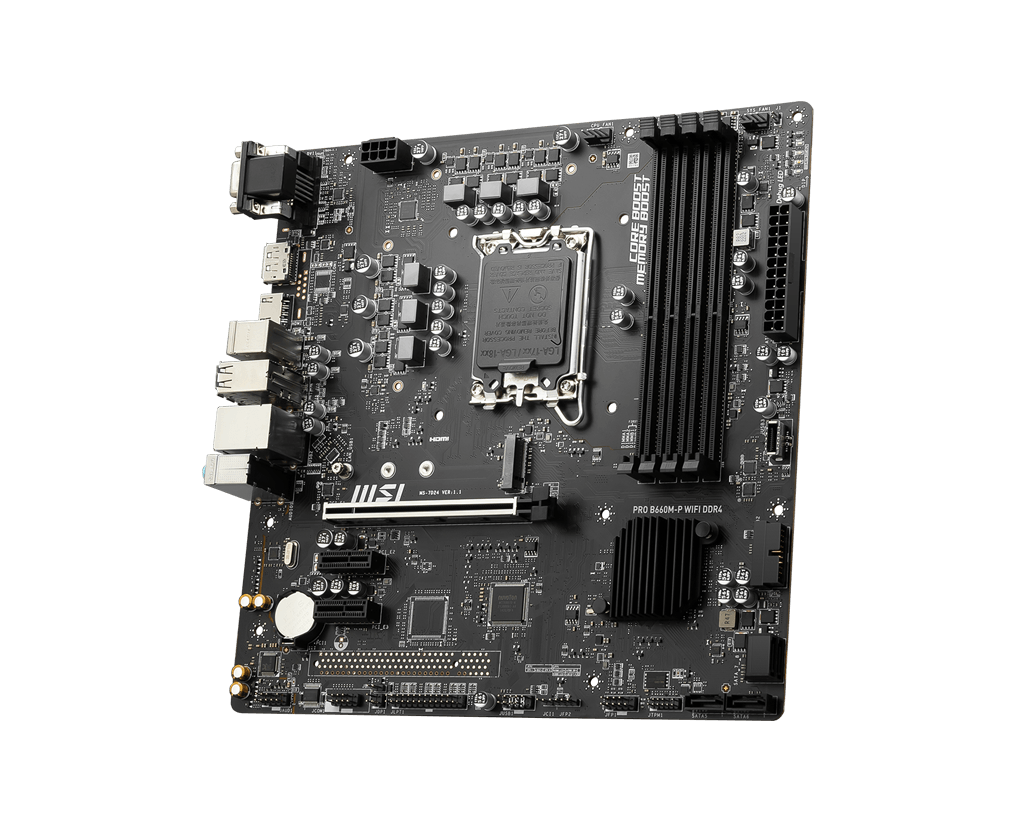

Mainboard MSI PRO B660M P WiFi DDR4

• CPU

  Supports 12th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors ¹

  Processor socket LGA1700

• Please go to msi.com to get the newest support status as new processors are released.





BOX CONTENT

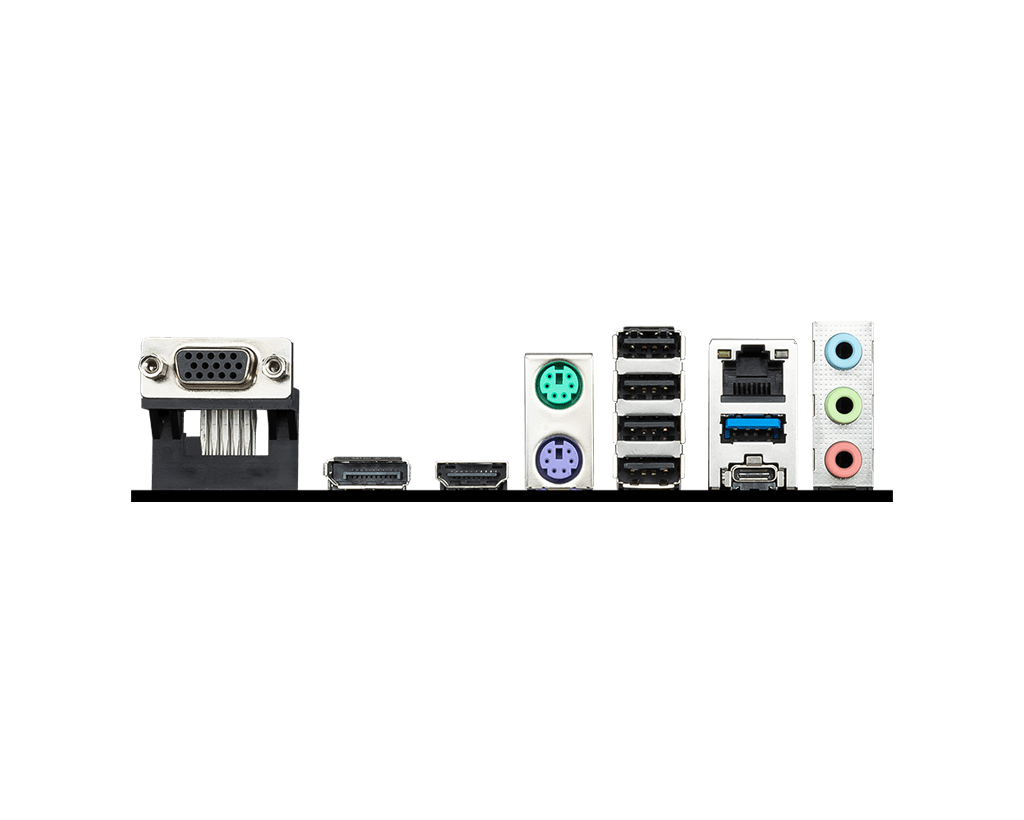

BACK PANEL CONNECTORS

VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A

LED FEATURE

4x EZ Debug LED

POWER CONNECTORS

1x Clear CMOS jumper

SYSTEM CONNECTORS

1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port

FAN CONNECTORS

1x 4-pin CPU fan connector 1x 4-pin system fan connector

INTERNAL USB CONNECTORS

1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)

• Supports additional 2 USB 3.2 Gen 1 5Gbps ports

1x USB 2.0 Type-A connector (From B660 chipset)

• Supports additional 2 USB 2.0 ports

POWER CONNECTORS

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector

BIOS FEATURES

1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language

WI-FI & BLUETOOTH

Intel^® Dual Band Wireless-AC 3168

Dual Band 1x1 802.11ac 2.4GHz/ 5GHz bands 433 Mbps Max Speed Bluetooth 4.2 (BR/EDR, BLE) Supports Windows 7/ 8.1/ 10

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

FORM FACTOR

M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

LAN

1x Realtek^® RTL8111H 1Gbps LAN controller

STORAGE

4x SATA 6Gb/s ports (From B660 chipset) ¹ 1x M.2 slot (Key M)

• M2_1 slot (From B660 Chipset)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices

AUDIO

Realtek^® ALC897 Codec

7.1-Channel High Definition Audio Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.

ONBOARD GRAPHICS

1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz¹/² 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz¹/² 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

See supported memory

EXPANSION SLOT

1x PCIe x16 slot

• PCI_E1 (From CPU)
  • Supports up to PCIe 4.0 x16

2x PCIe x1 slots

• PCI_E2 & PCI_E3 (Fom B660 chipset)
  • Supports up to PCIe 3.0

Please refer www.msi.com for more information on compatible memory.

CHIPSET

Intel^® B660 chipset

MEMORY

4x DDR4 memory slots, supporting up to 128GB¹ Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency:

• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
