Thông số sản phẩm
- Chipset: Intel B760
- Socket: Intel LGA 1700
- Kích thước:M-ATX
- Số khe RAM: 4 khe( Tối đa 128GB)

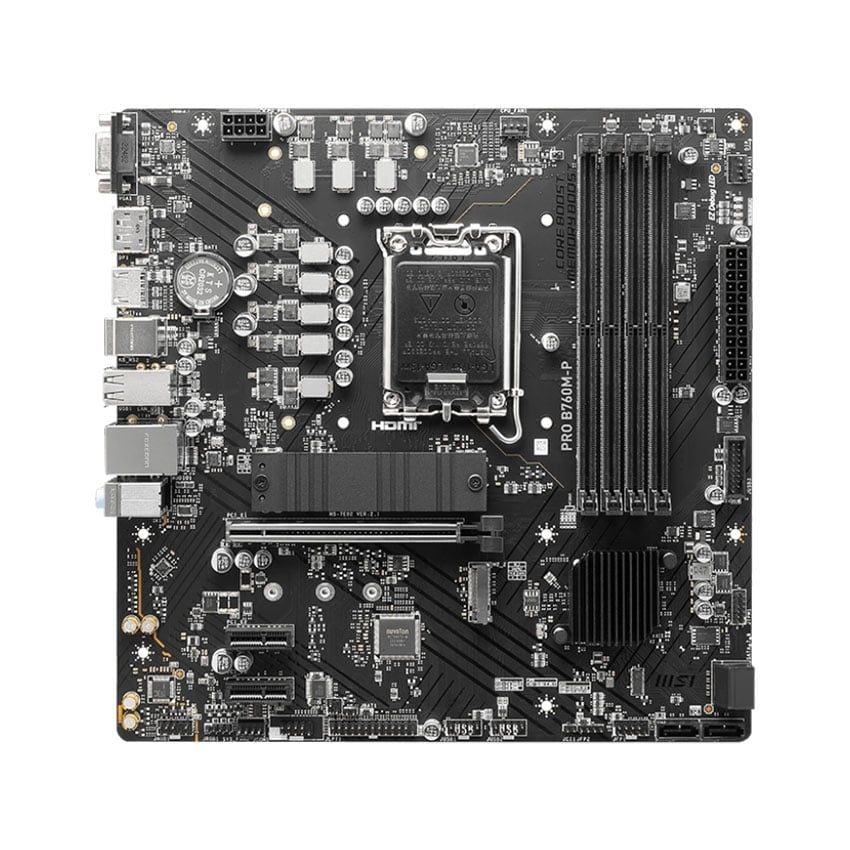

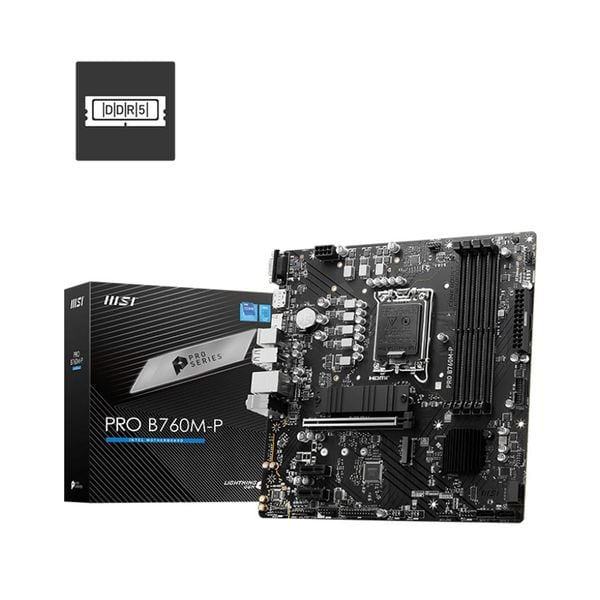

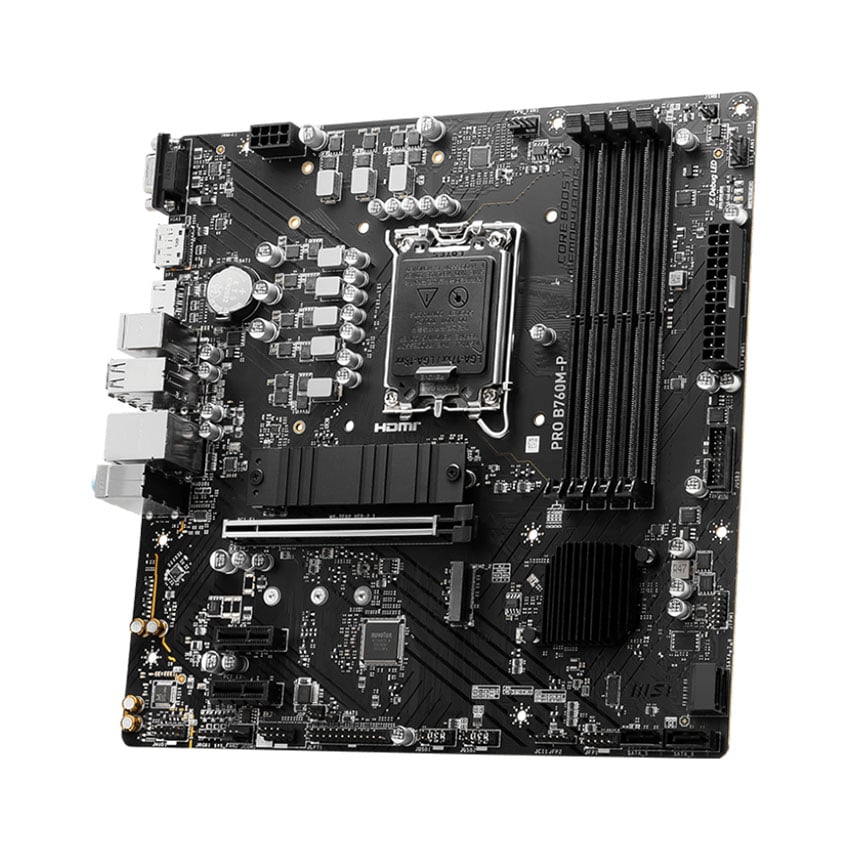

Thông số kỹ thuật chi tiết Mainboard MSI PRO B760M-P DDR5
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |
| Model | PRO B760M-P DDR5 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 13 và 12 Intel® Core Socket LGA1700 |
| Chipset | Intel® B760 |
| RAM hỗ trợ | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
| Khe cắm mở rộng | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Ổ cứng hỗ trợ | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Cổng kết nối (Internal) | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| Cổng kết nối (Back Panel) | VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Kích cỡ | mATX 243.84mmx243.84mm |
