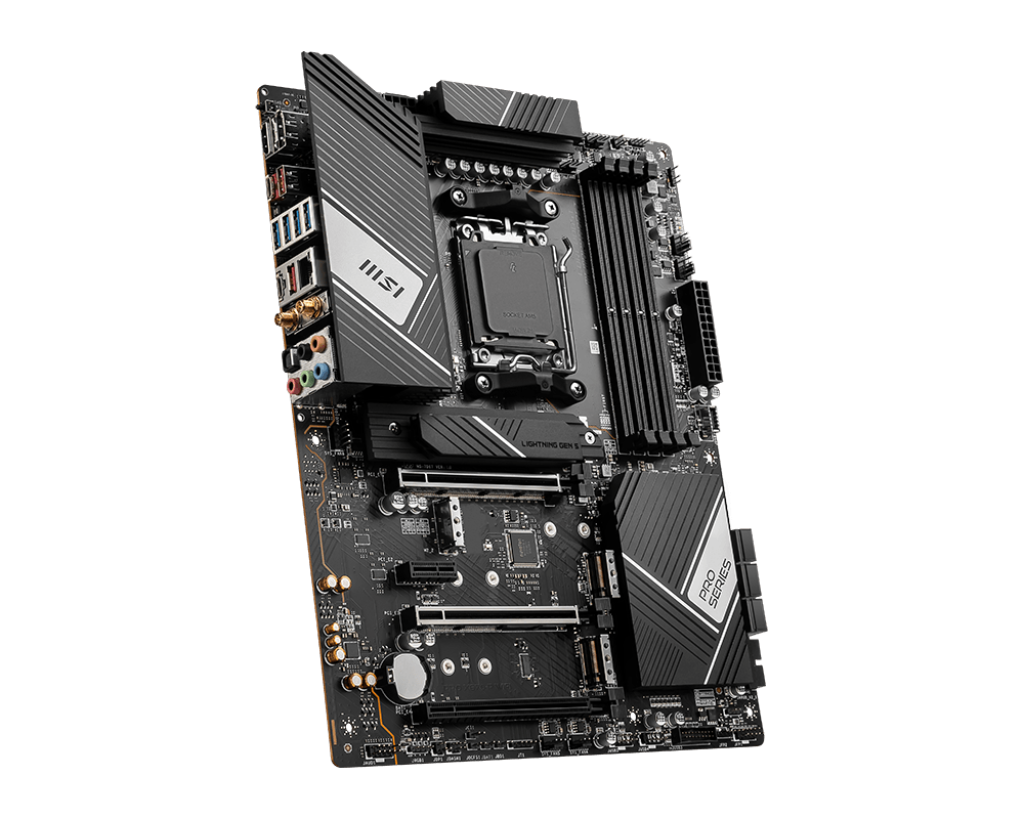

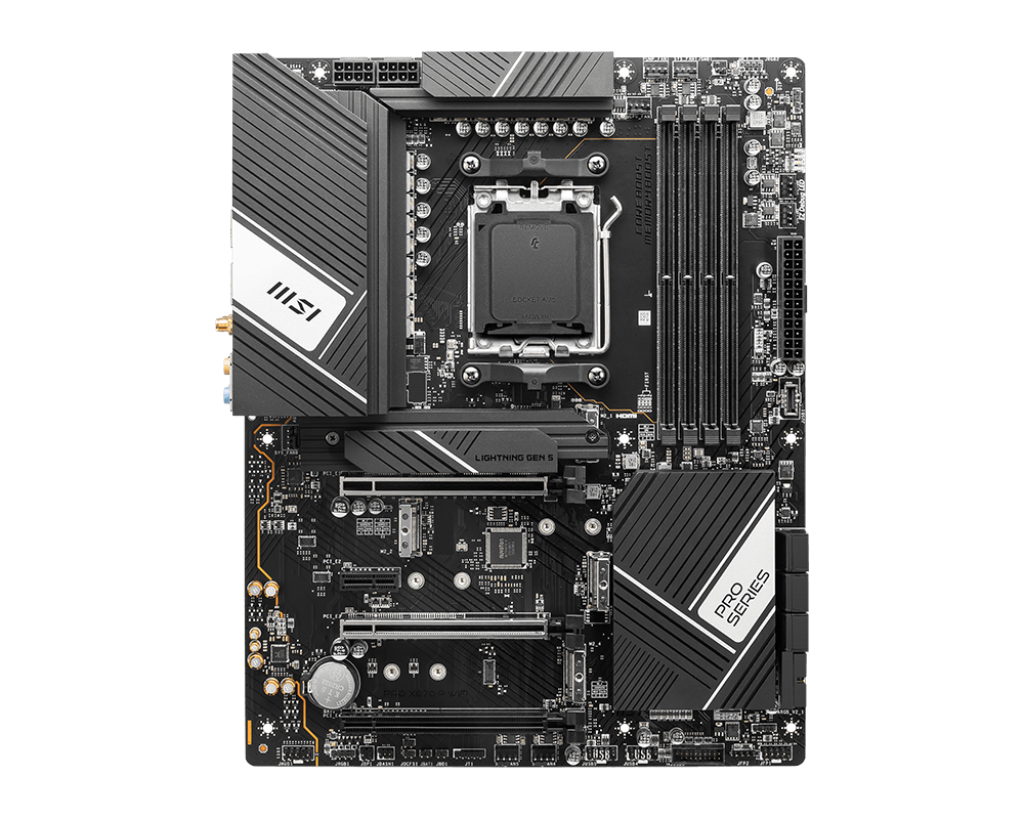

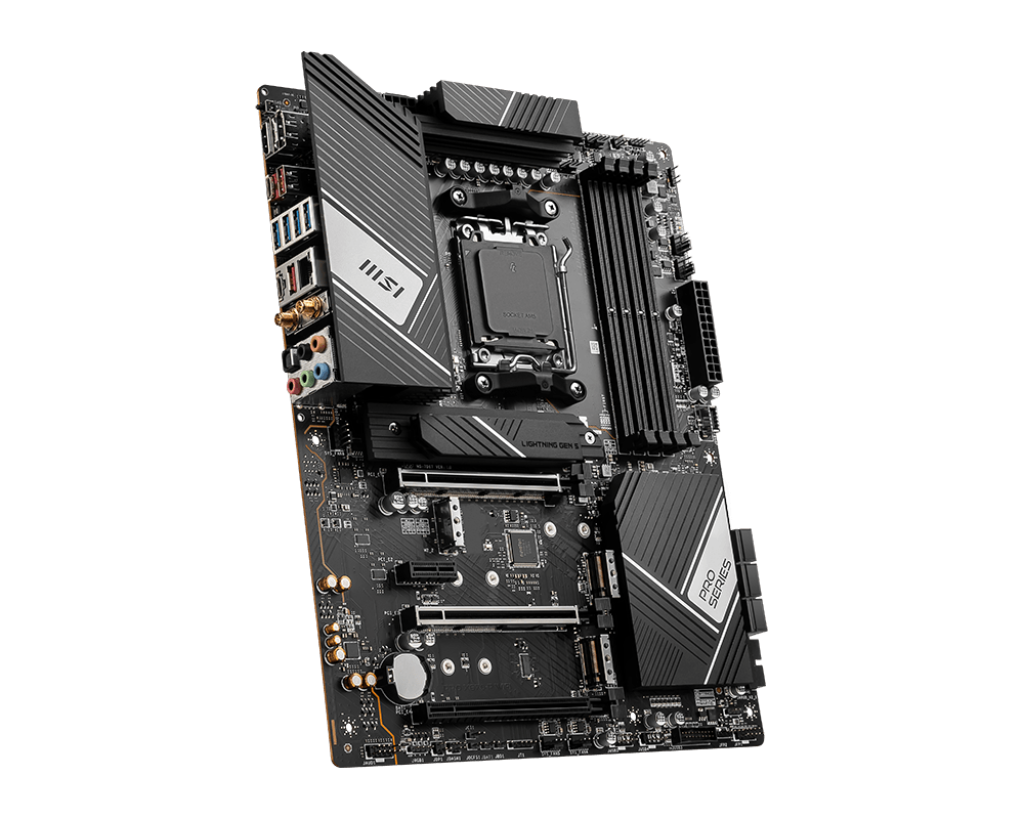

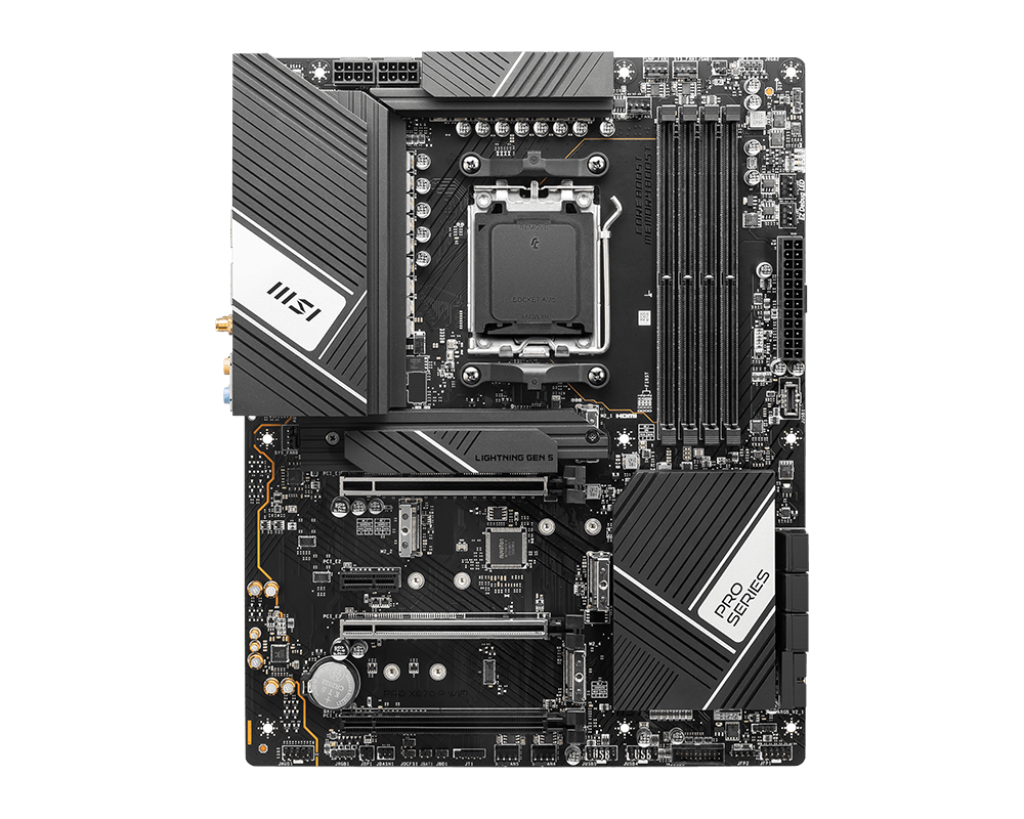

Mainboard MSI Pro X670-P Wifi DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

Pro X670-P Wifi

CPU hỗ trợ

AMD

Chipset

X670

RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Khe cắm mở rộng

3x PCI-E x16 slot

1x PCI-E x1 slot

Ổ cứng hỗ trợ

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

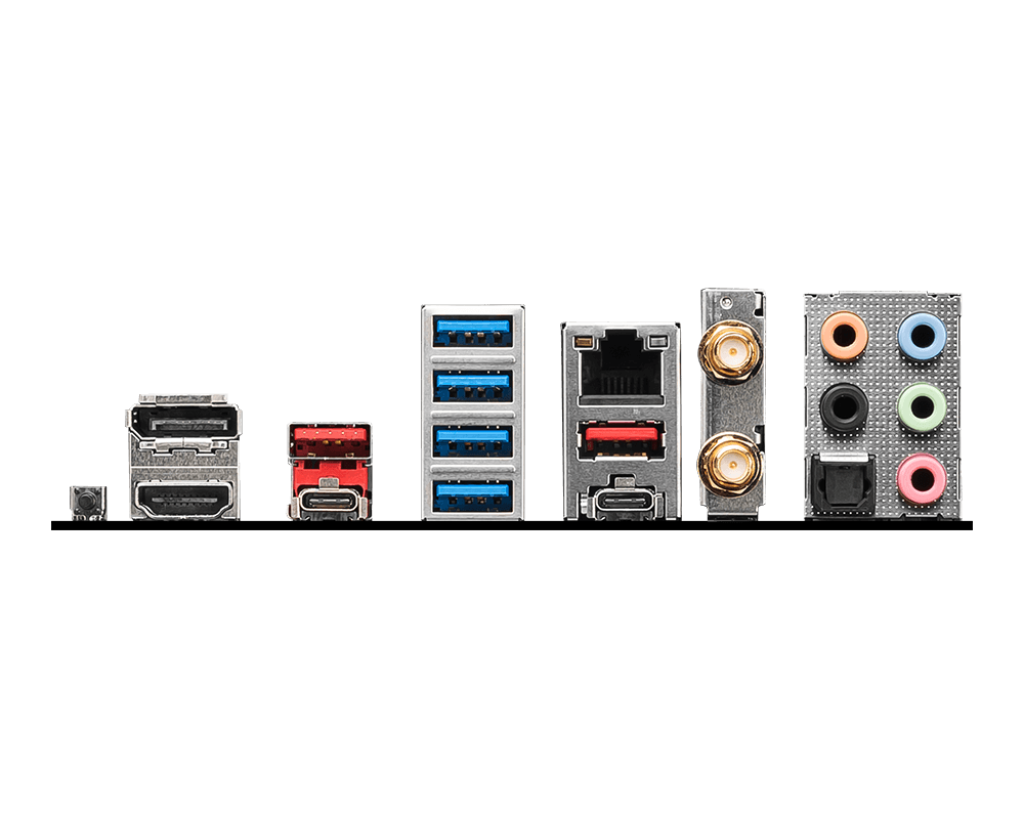

BACK PANEL

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps (Type-A)
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio connectors
7. Flash BIOS Button
8. HDMI™
9. USB 3.2 Gen 2 10Gbps (Type-C Display port)
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
11. USB 3.2 Gen 2 10Gbps (Type-A)
12. S/PDIF-OUT

LAN / Wireless

Realtek^® RTL8125BG 2.5G LAN

AMD Wi-Fi 6E Supports Bluetooth^® 5.2

Kích cỡ

ATX
