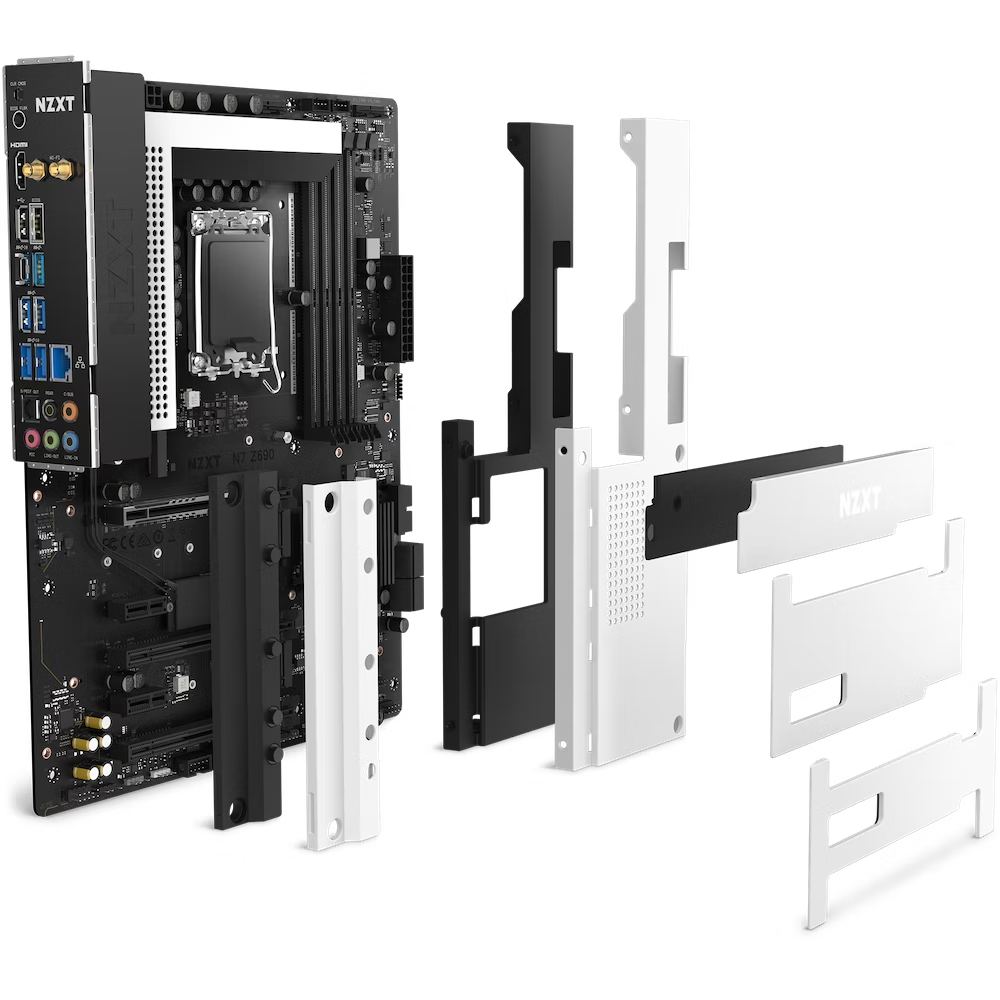

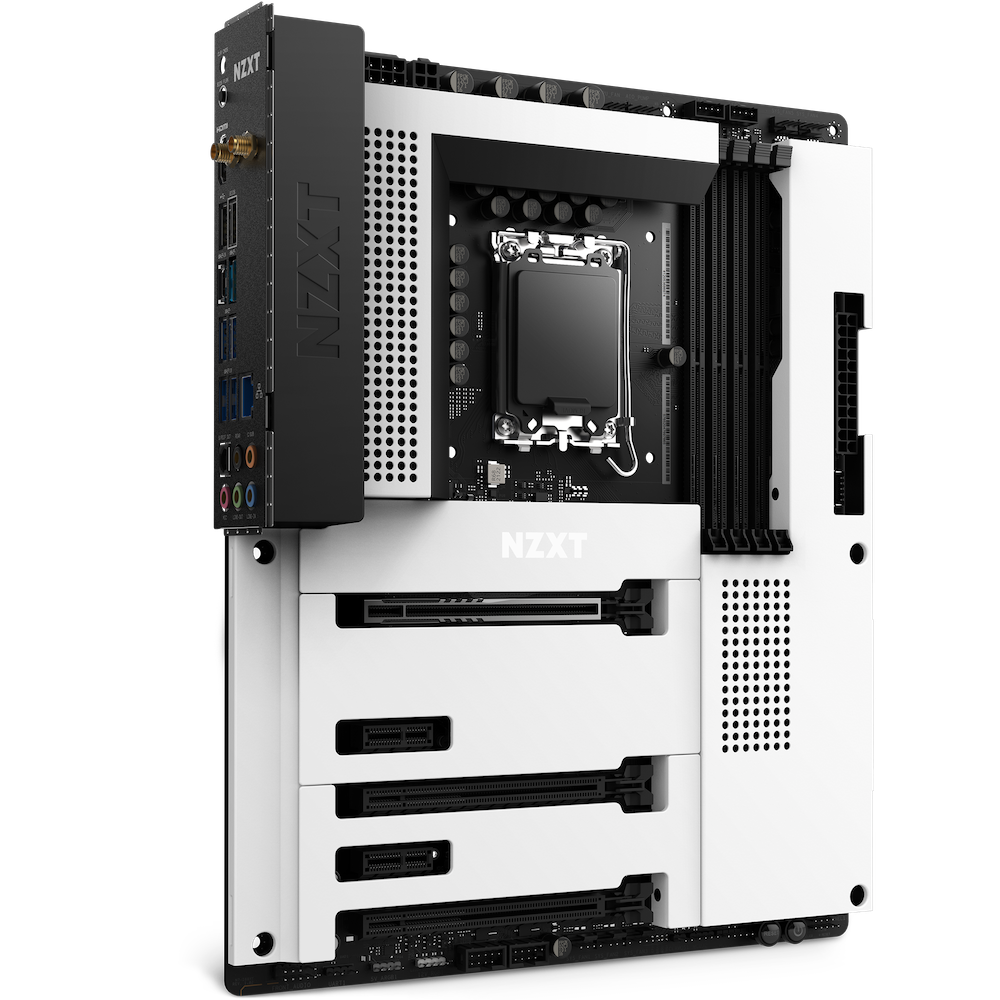

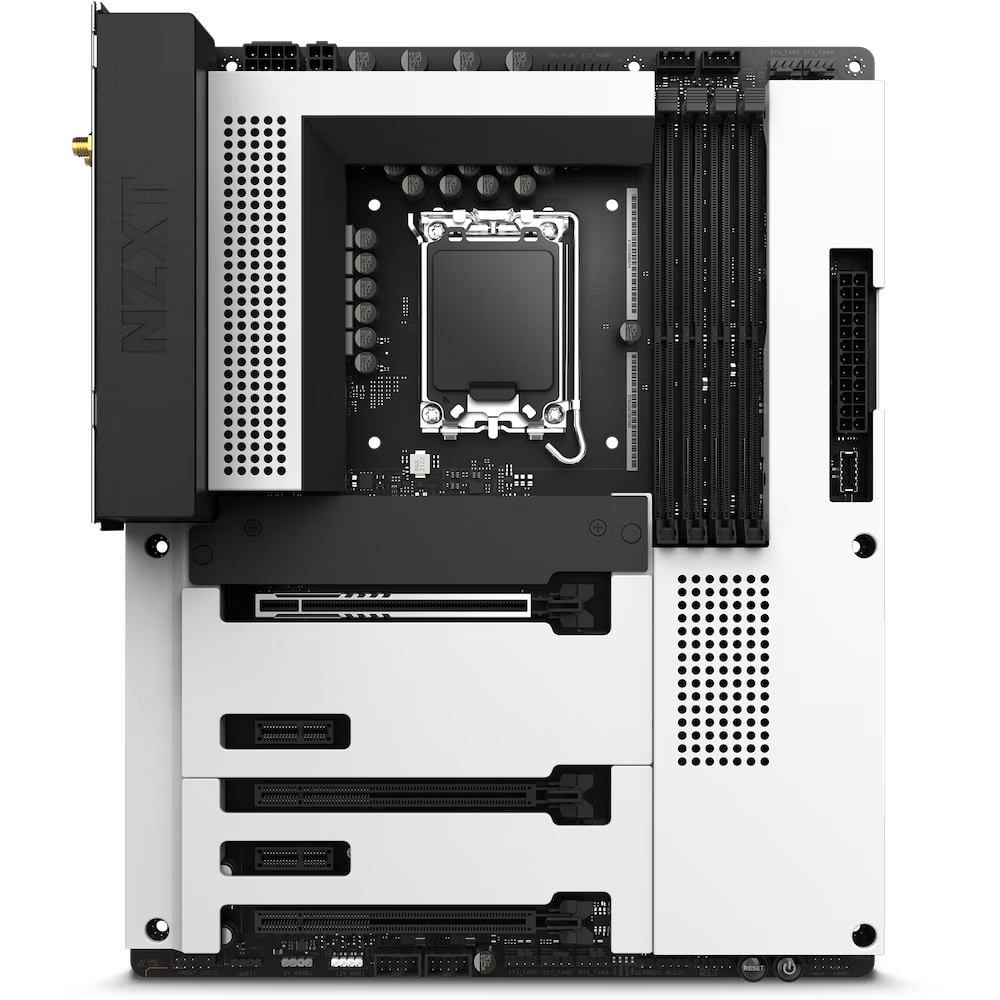

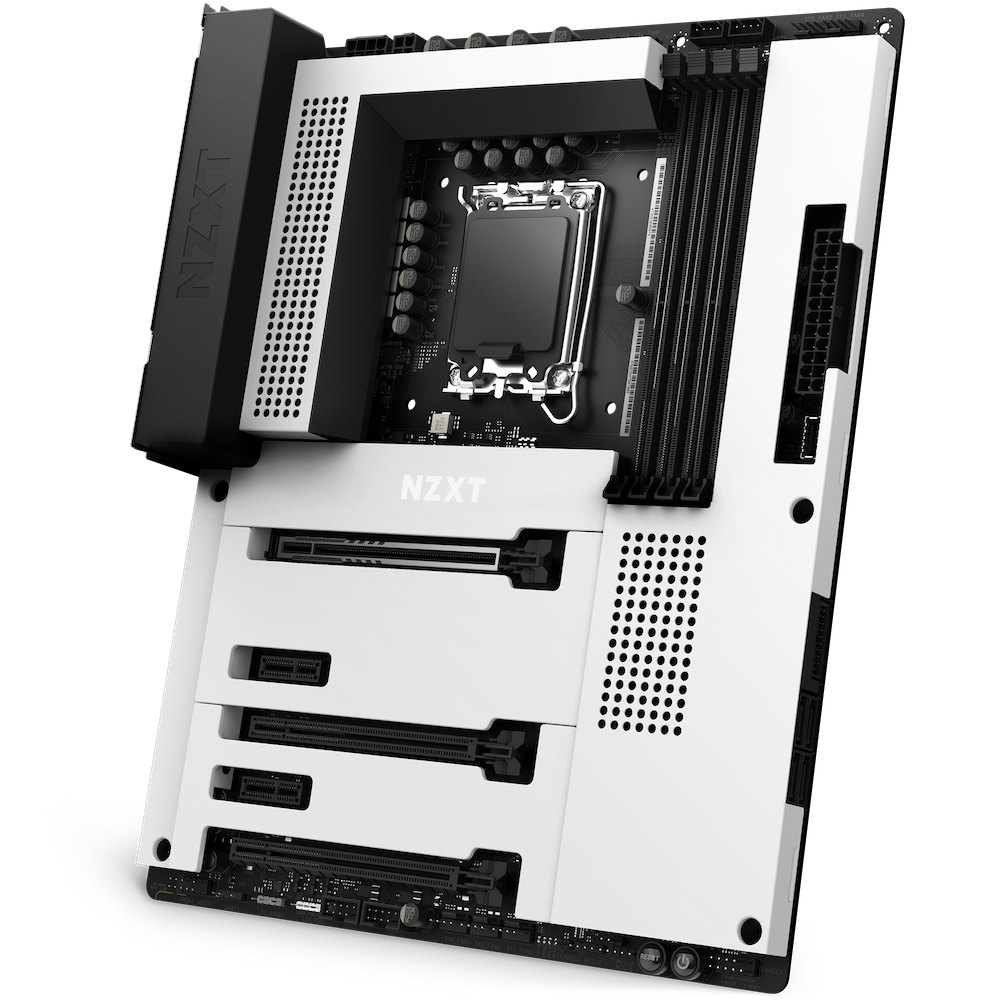

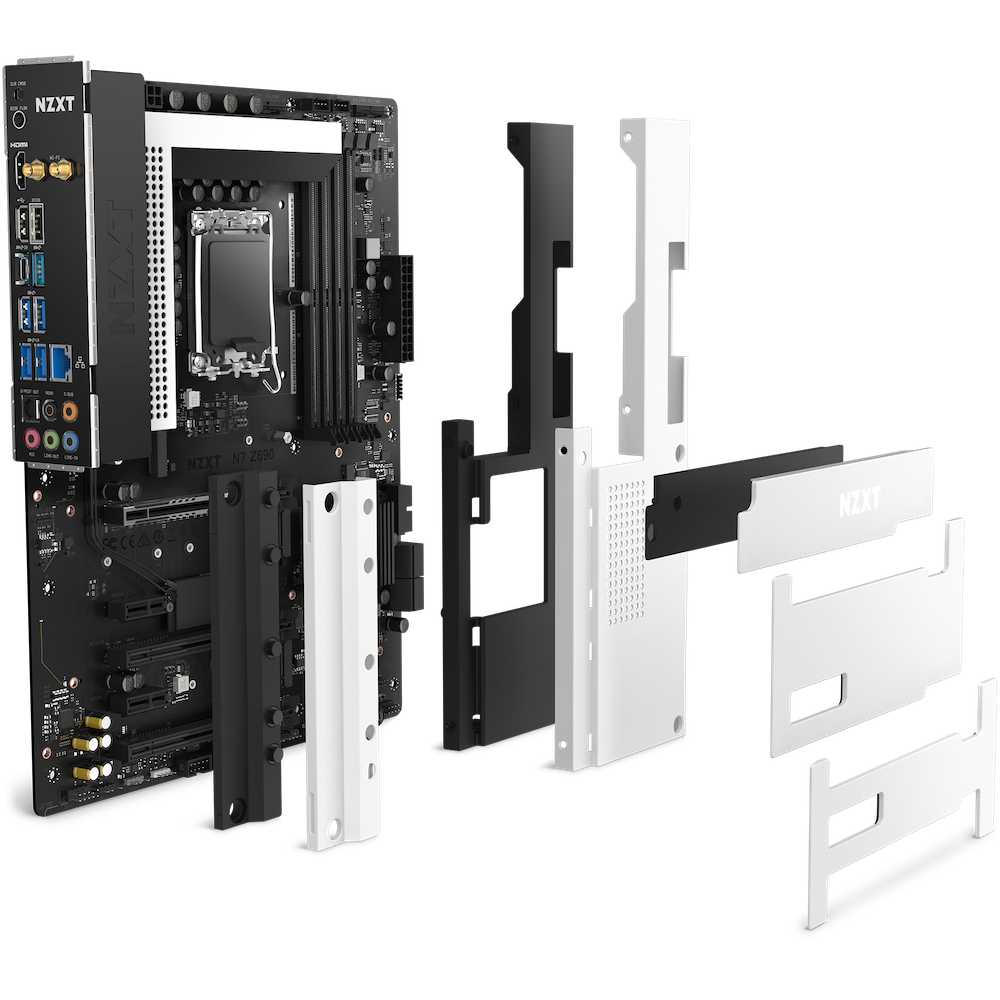

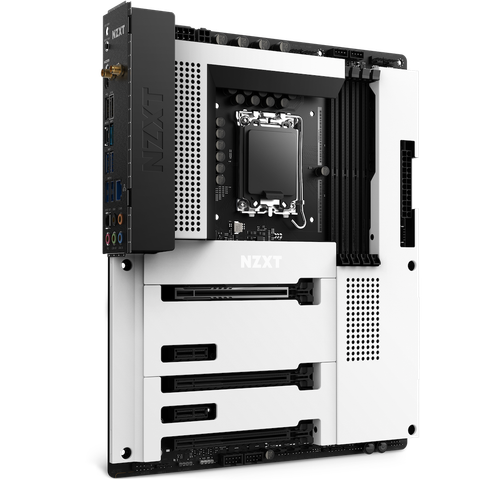

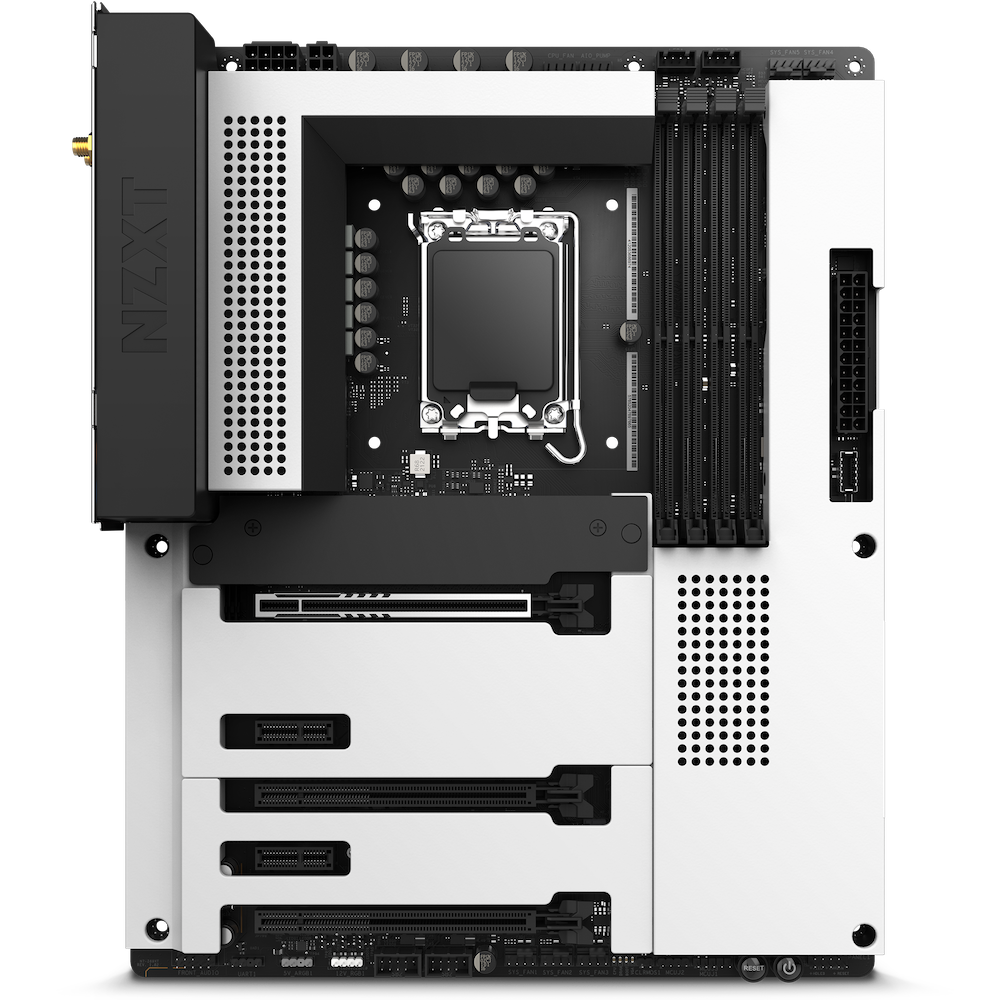

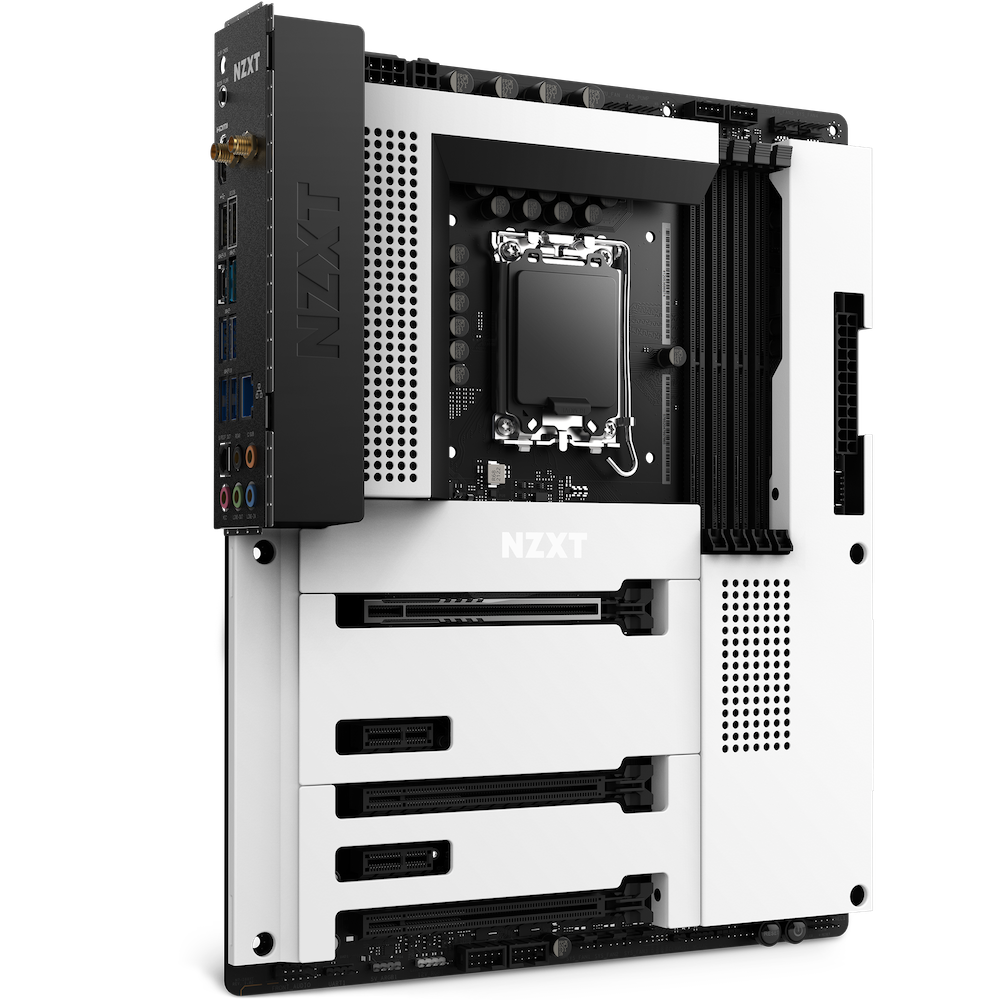

CPU
Intel® Socket LGA1700 for 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.
Intel® Hybrid Technology:Supported
Turbo Boost Max 3.0 Technology:Supported
CHIPSET
Intel®:Z690
MEMORY
DIMM Slots:4
Max Memory Support:128GB
Memory Architecture:Dual-Channel
OC Frequency:5000+(O.C.). Please refer to memory QVL.
Base Frequency:3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Type:Non-ECC, Un-buffered Memory
Intel® XMP 2.0 Support:Supported
INTEGRATED GRAPHICS
Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs):HDMI 2.0 / HDMI 1.4b
HDMI Max Resolution:4096x2160@60Hz
MULTI-GPU SUPPORT
AMD 2-Way CrossFireX™ Technology:Supported
EXPANSION SLOTS
PCIe x16:3 (Single - PCIe_1: Gen 5 x16 mode / Dual - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4 / Triple - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x4)
PCIe 3.0 x1:2
M.2 Socket (Key E):Supports Type 2230 Wi-Fi/BT Module, Intel CNVio
STORAGE (CHIPSET)
M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
M.2_2 Type 2242/2260/2280/22110 (PCIe 4.0 x4 mode):1
M.2_3 Type 2242/2260/2280 (PCIe 4.0 x4 & SATA mode):1
SATA 6Gb/s:4
RAID 0/1/5/10 Support:Supported
Intel® Volume Management Device (VMD):Supported
Intel® Optane Technology:Supported
NVMe SSD as boot disks:Supported
LAN
Realtek®:RTL8125BG 2.5G
WIRELESS
Intel® Dual-Band Wireless:AX210 Wi-Fi 6E
Protocol:802.11 a/b/g/n/ac/ax
Frequency Bands:2.4 / 5 / 6 GHz
MU-MIMO Support:Supported
Bluetooth:V5.2
AUDIO
Realtek®:ALC1220 Codec
Channels:8-Channel High Definition Audio
Playback:32-bit / 192kHz DAC
Capacitors:Nichicon Fine Gold Series
REAR I/O
USB 3.2 Gen 2 (Type-C):1
USB 3.2 Gen 2 (Type-A):2
USB 3.2 Gen 1 (Type-A):3
USB 2.0:2
HDMI™ 2.0:1
Wireless Antenna:2 (2T2R)
LAN (RJ45) Port:1
5.1-Channel Audio Jacks:1
Optical S/PDIF:1
BIOS Flashback Button:1
Clear CMOS Button:1
INTERNAL I/O
USB 3.2 Gen 2 Header (Type-C):1
USB 3.2 Gen 1 Header:1 (Up to 2 ports)
USB 2.0 Header:2 (Up to 4 ports)
Front Panel Audio:1
CPU_FAN Connector:1 (Up to 24W)
AIO_PUMP Connector:1 (Up to 24W)
SYS_FAN Connector:5 (Up to 24W)
NZXT RGB LED Header:2
5V ARGB Header:1
12V RGB Header:1
24-pin EATX Power:1
8-pin ATX 12V Power:1
4-pin ATX 12V Power:1
Power Button:1
Reset Button:1
POST LEDs:4
GENERAL
Operating System:Windows® 11/10 64-bit
Form Factor:ATX
Warranty:3 years
Model Number:N7-Z69XT-W1 (White) / N7-Z69XT-B1 (Black)
UPC:810074840187 (White) / 810074840194 (Black)
EAN:5056547200118 (White) / 5056547200125 (Black)
