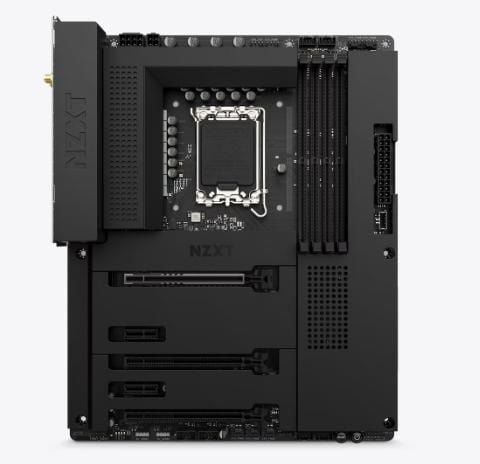

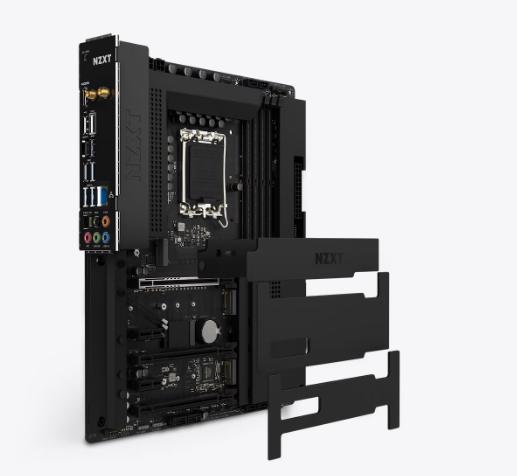

| GENERAL | - Operating System:Windows® 11/10 64-bit
- Form Factor:ATX
- Model Number:N7-Z79XT-W1 (White) / N7-Z79XT-B1 (Black)
|
|---|
| CPU | - Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.
- Intel® Hybrid Technology:Supported
- Turbo Boost Max 3.0 Technology:Supported
- Intel® Thermal Velocity Boost (TVB):Supported
- Intel® Adaptive Boost Technology (ABT):Supported
|
|---|
| CHIPSET | |
|---|
| MEMORY | - DIMM Slots:4
- Max Memory Support:128GB, DDR5
- Memory Architecture:Dual-Channel
- OC Frequency:5000+(O.C.). Please refer to memory QVL.
- Intel® Extreme Memory Profile (XMP) 3.0:Supported
|
|---|
| EXPANSION SLOTS | - PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
- PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode:2 (Supports NVMe SSD as boot disks)
- PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*:2 (Supports NVMe SSD as boot disks)
- M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1
|
|---|
| STORAGE (CHIPSET) | - M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
- M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode):1
- M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode):1
- SATA 6Gb/s ports:4
- Intel® Volume Management Device (VMD):Supported
- NVMe SSD as boot disks:Supported
|
|---|
| LAN | |
|---|
| WIRELESS | - Dual Band Wi-Fi 6E:Supported
- Bluetooth:V5.2
|
|---|
| AUDIO | |
|---|
| REAR I/O | - Wireless antenna SMA connectors:2
- HDMI™ port:1
- USB 2.0:2
- USB 3.2 Gen 2×2 Type-C port:1
- USB 3.2 Gen 2 ports:2
- USB 3.2 Gen 1 ports:3
- Clear CMOS button:1
- LAN (RJ45) port:1
- Audio jacks:5
- Optical S/PDIF Out port:1
|
|---|
| INTERNAL I/O | - 24-pin ATX power connector:1
- 8+4-pin ATX 12V power connector:1
- 4-pin CPU_FAN connector:1
- 4-pin AIO_PUMP connector:1
- 4-pin SYS_FAN connectors:5
- NZXT RGB LED connectors:4
- 5V ARGB LED connector:2
- USB 2.0 header (Up to 4 USB 2.0 ports):2
- USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1
- USB 3.2 Gen2x2 front panel header (For USB Type-C):1
- Front panel audio connector:1
- Power button:1
- Reset button:1
- POST LEDs:4
|
|---|
| INSIDE THE BOX | - N7 Z790 Motherboard: 1
- SATA cables (2 x 90°, 2 x 180°): 4
- M.2 screws: 2
- Wireless antenna: 2
|
|---|
