CPU & SOCKET
Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.
Intel® Hybrid Technology:Supported
Turbo Boost Max 3.0 Technology:Supported
Intel® Thermal Velocity Boost (TVB):Supported
Intel® Adaptive Boost Technology (ABT):Supported
CHIPSET
Intel®:Z790
MEMORY
DIMM Slots:4
Max Memory Support:128GB, DDR5
Memory Architecture:Dual-Channel
OC Frequency:5000+(O.C.). Please refer to memory QVL.
Intel® Extreme Memory Profile (XMP) 3.0:Supported
EXPANSION SLOTS
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode:2 (Supports NVMe SSD as boot disks)
PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*:2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1
STORAGE
M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode):1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode):1
SATA 6Gb/s ports:4
Intel® Volume Management Device (VMD):Supported
NVMe SSD as boot disks:Supported
LAN
Realtek®:RTL8125BG 2.5G LAN
WIRELESS
Dual Band Wi-Fi 6E:Supported
Bluetooth:V5.2
AUDIO
Realtek®:ALC1220 Codec

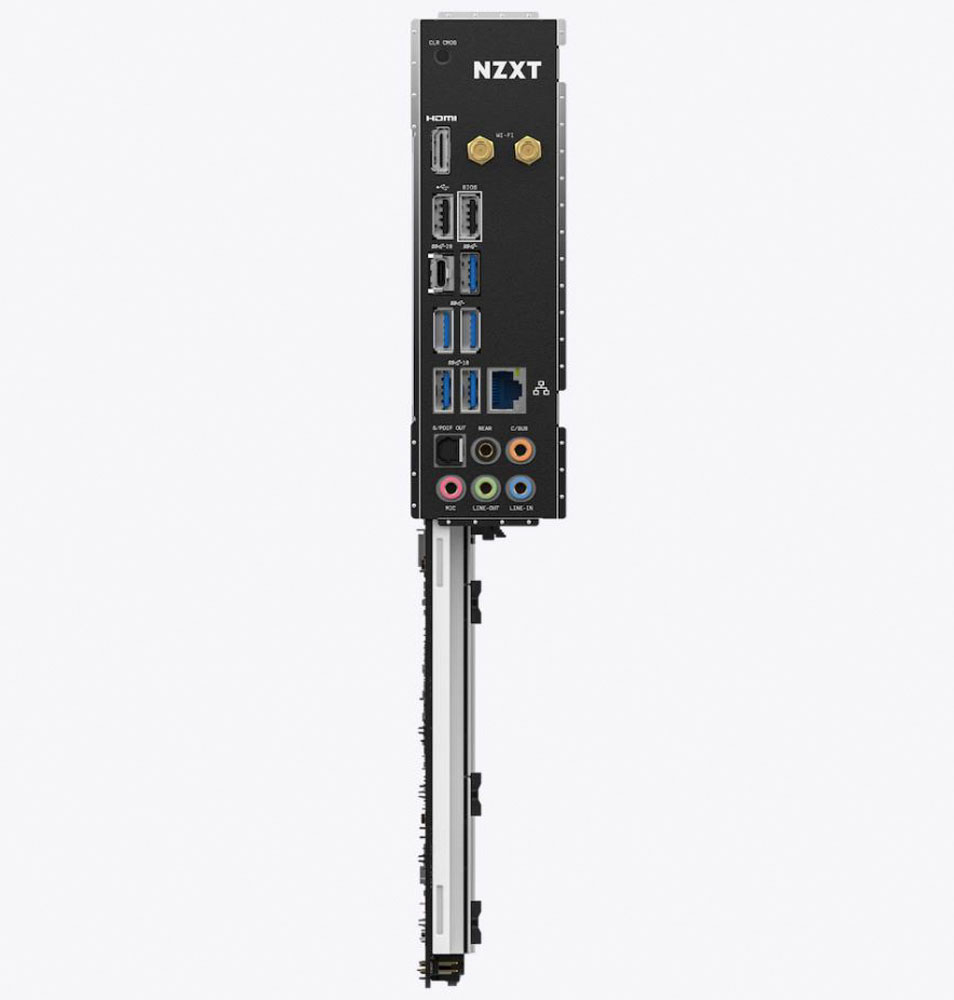

REAR I/O
Wireless antenna SMA connectors:2
HDMI™ port:1
USB 2.0:2
USB 3.2 Gen 2x2 Type-C port:1
USB 3.2 Gen 2 ports:2
USB 3.2 Gen 1 ports:3
Clear CMOS button:1
LAN (RJ45) port:1
Audio jacks:5
Optical S/PDIF Out port:1
INTERNAL I/O
24-pin ATX power connector:1
8+4-pin ATX 12V power connector:1
4-pin CPU_FAN connector:1
4-pin AIO_PUMP connector:1
4-pin SYS_FAN connectors:5
NZXT RGB LED connectors:4
5V ARGB LED connector:2
USB 2.0 header (Up to 4 USB 2.0 ports):2
USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1
USB 3.2 Gen2x2 front panel header (For USB Type-C):1
Front panel audio connector:1
Power button:1
Reset button:1
POST LEDs:4
GENERAL
Operating System:Windows® 11/10 64-bit
Form Factor:ATX
Warranty:3 years
Model Number:N7-Z79XT-W1 (White) / N7-Z79XT-B1 (Black)
UPC:810074843003 (White) / 810074843010 (Black)
EAN:5056547202945 (White) / 5056547202952 (Black)
