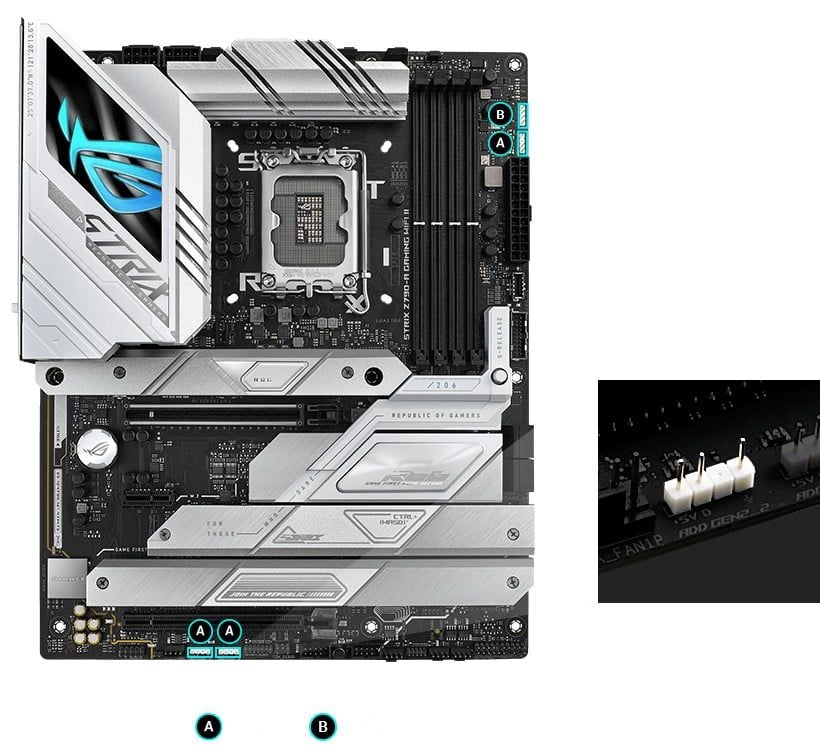

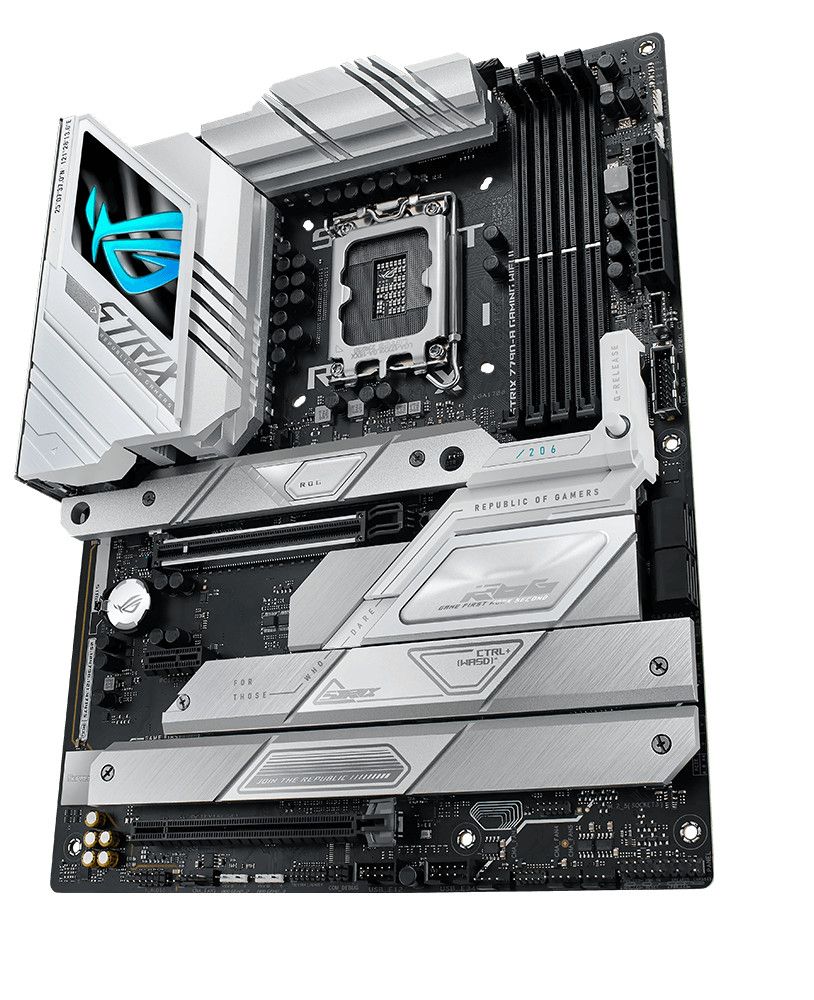

Model | ROG STRIX Z790-A GAMING WIFI II |
CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |
RAM hỗ trợ | 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC) 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC) 5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture |
Khe cắm mở rộng | Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot |
Ổ cứng hỗ trợ | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports |
Cổng kết nối (Internal | Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over voltage jumper
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin system panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ (USB4®) header |
Cổng kết nối (Back Panel) | 1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button |
LAN / Wireless | 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard Intel® Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth® v5.4**** |
Kích cỡ | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |

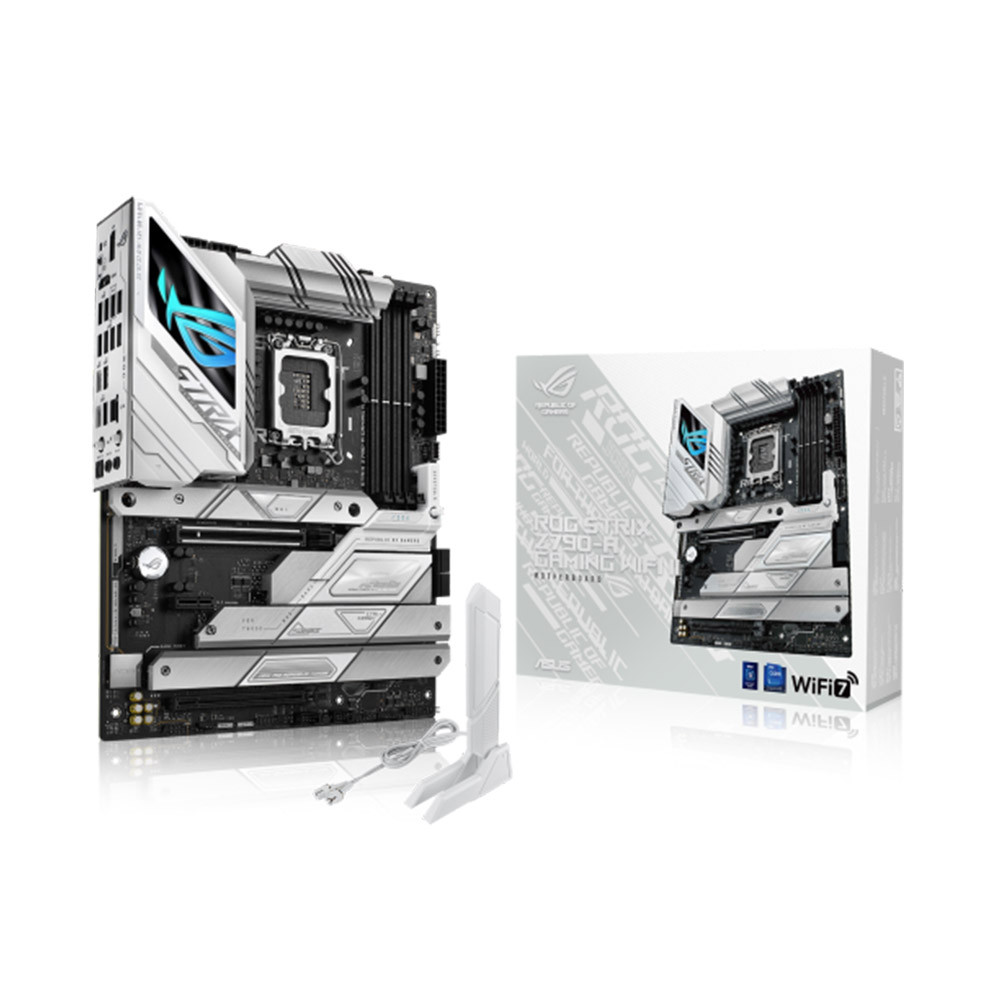

Phụ kiện | Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
1 x M.2 backplate Rubber package
Documentation
1 x Quick start guide |
