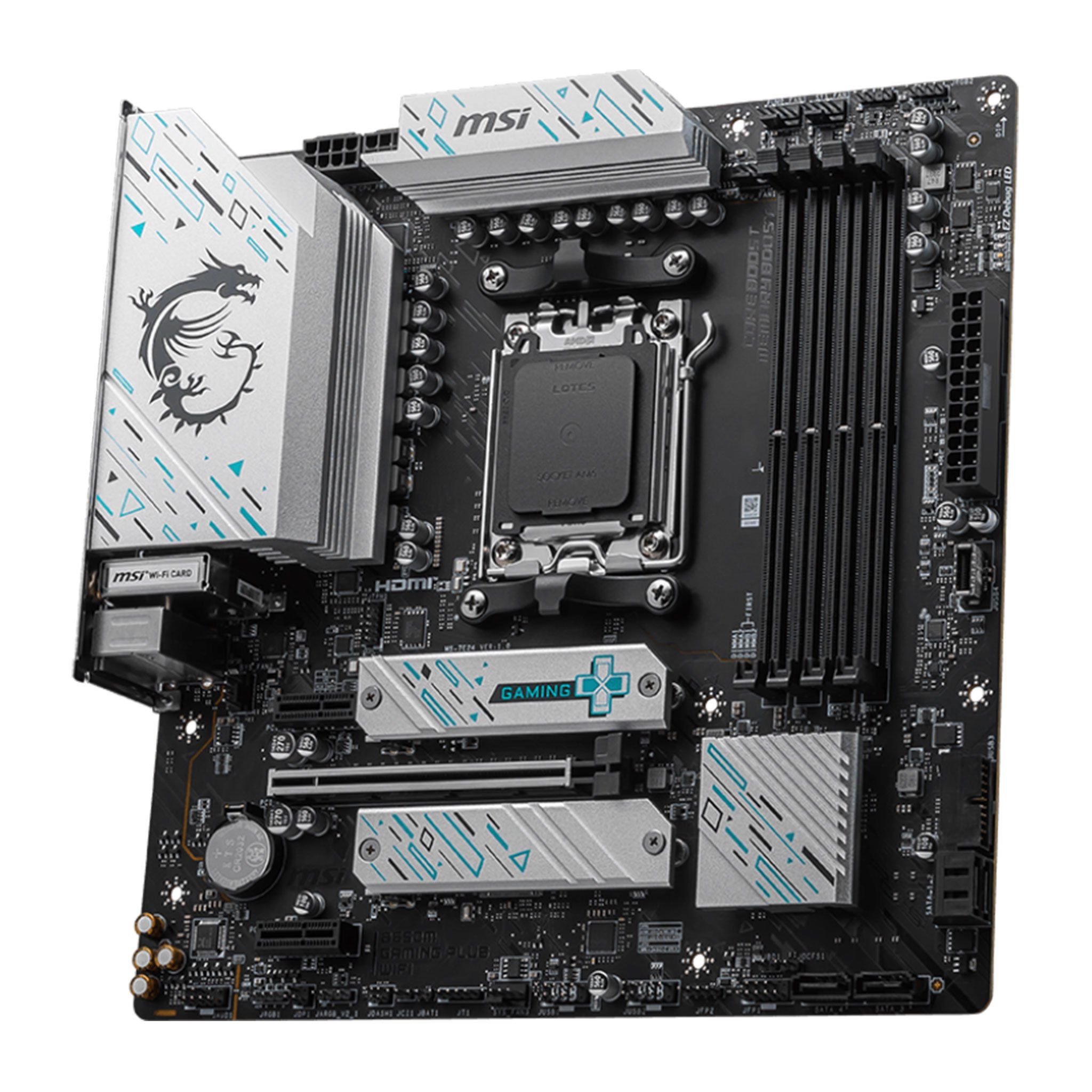

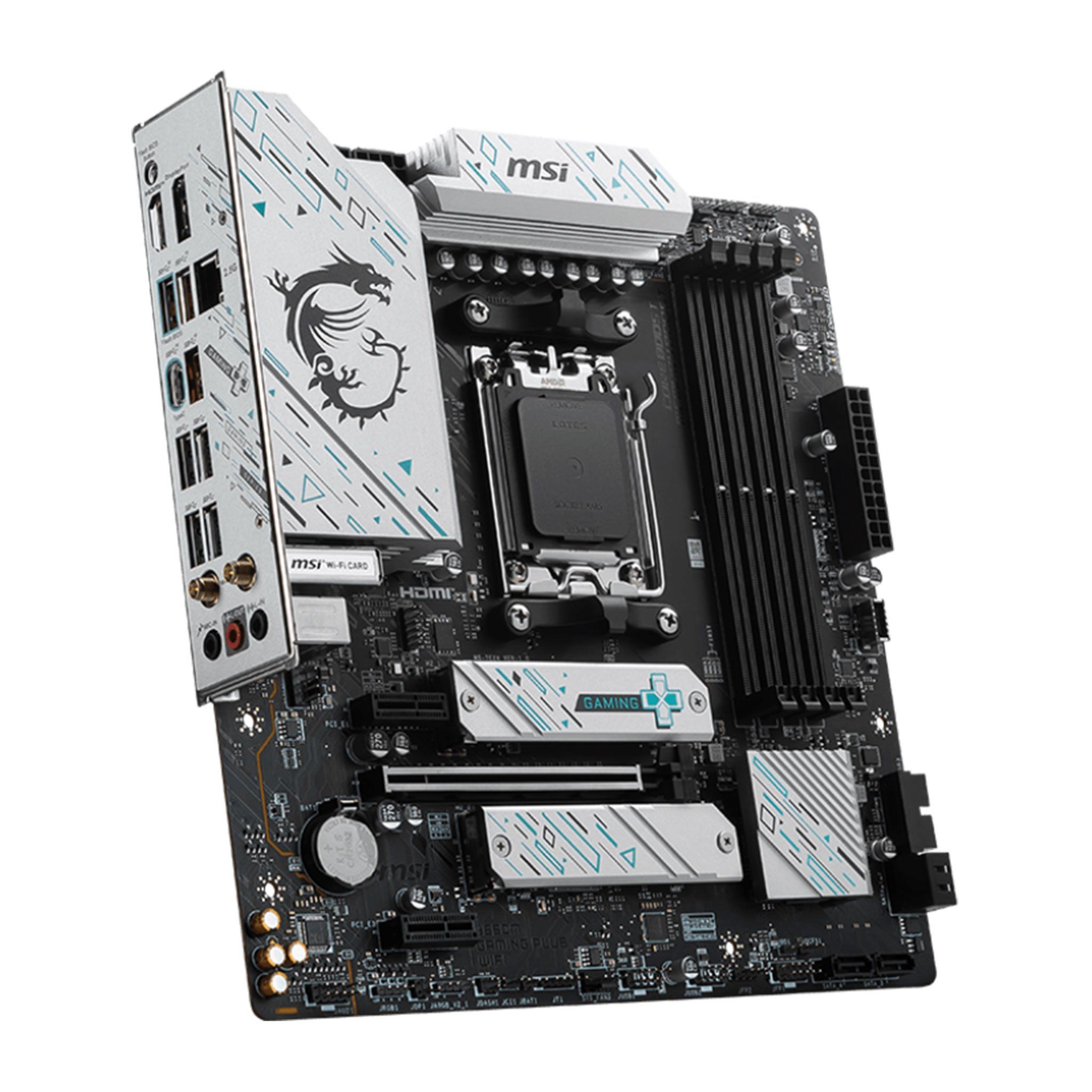

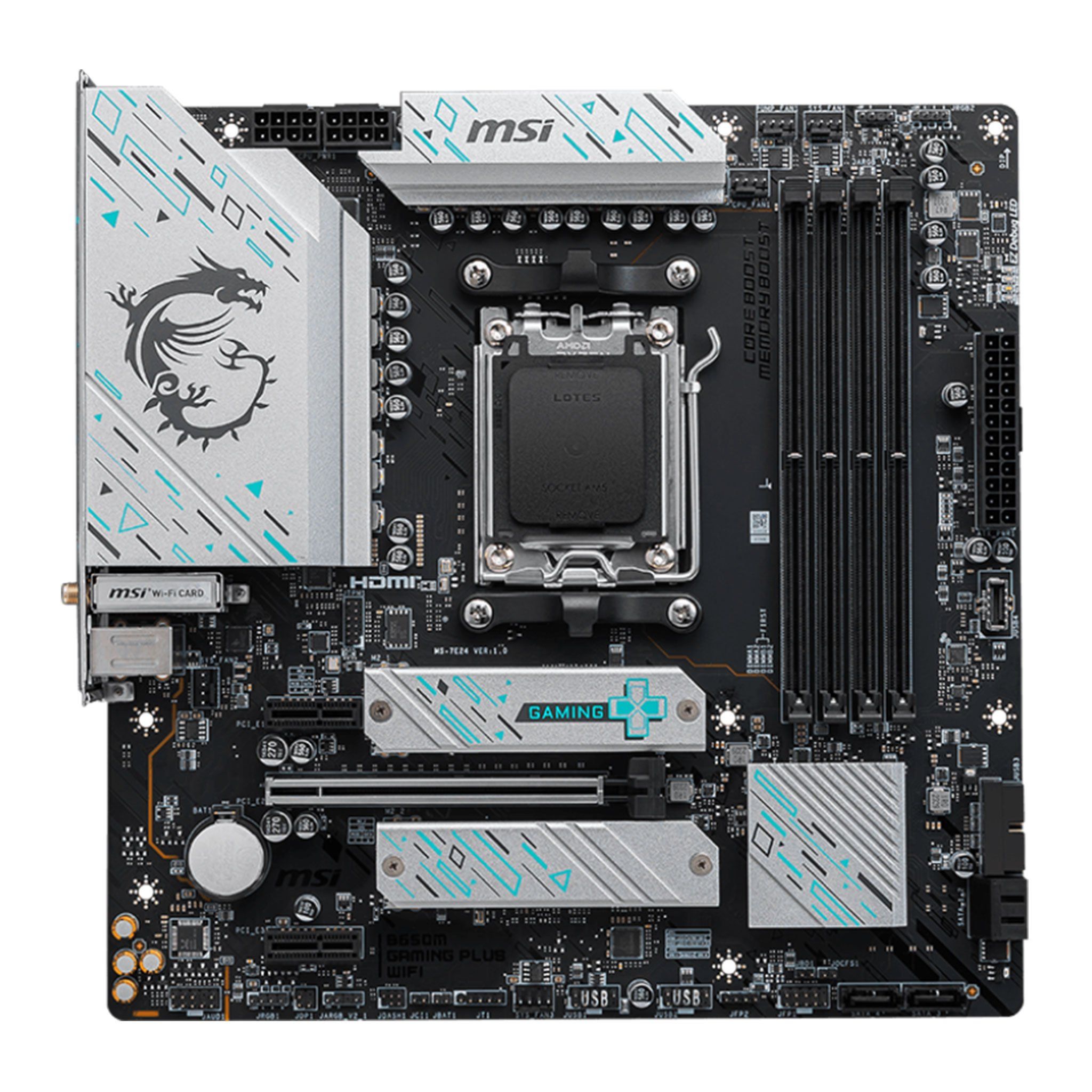

MSI B650M GAMING PLUS WIFI

Thương hiệu: MSI Mã sản phẩm: BH 36TH
4,990,000₫ 5,990,000₫
-17%
(Tiết kiệm: 1,000,000₫)

MSI B650M GAMING PLUS WIFI KHUYẾN MÃI - ƯU ĐÃI

Gọi đặt mua 0946700006 (9:00 - 18:00)

  • Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
    Có ship hỏa tốc 45p nhận hàng nội thành TPHCM
  • Sản phẩm chính hãng
    Sản phẩm chính hãng
  • Chế độ bảo hành tốt nhất
    Chế độ bảo hành tốt nhất
  • Đổi mới trong 30 ngày miễn phí
    Đổi mới trong 30 ngày miễn phí

ĐẶC ĐIỂM NỔI BẬT

Thông số kỹ thuật:

CHIPSET AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
 Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/  5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
 Supports Dual-Channel mode
 Supports non-ECC, un-buffered memory
 Supports AMD EXPO™
 Max. overclocking frequency:
 • 1DPC 1R Max speed up to 7200+ MHz
 • 1DPC 2R Max speed up to 6000+ MHz
 • 2DPC 1R Max speed up to 6000+ MHz
 • 2DPC 2R Max speed up to 5400+ MHz

ONBOARD GRAPHICS 1x HDMI™
 Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
 1x DisplayPort
 Support DP 1.4, maximum resolution of 4K 60Hz*
 *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 1x PCI-E x16 slot
 • Supports x16 (For Ryzen™ 7000 Series processors)
 • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
 • Supports x4 (For Ryzen™ 5 8500G processor)
 2x PCI-E x1 slot
 PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
 PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
 PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 2x M.2
 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
 M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
 4x SATA 6G
 • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
 Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
 4x USB 3.2 Gen1 Type A (Rear)
 2x USB 3.2 Gen1 Type A (Front)
 3x USB 3.2 Gen2 Type A (Rear)
 1x USB 3.2 Gen2 Type C (Rear)
 1x USB 3.2 Gen2 Type C (Front)
LAN  Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
 The Wireless module is pre-installed in the M.2 (Key-E) slot
 Supports MU-MIMO TX/RX
 Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
 Supports 802.11 a/ b/ g/ n/ ac/ ax

 Supports Bluetooth® 5.3**

 * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
 ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC897 Codec
 7.1-Channel High Definition Audio

INTERNAL IO 1x Power Connector(ATX_PWR)
 2x Power Connector(CPU_PWR)
 1x CPU Fan
 1x Pump Fan
 3x System Fan
 2x Front Panel (JFP)
 1x Chassis Intrusion (JCI)
 1x Front Audio (JAUD)
 1x Tuning Controller connector(JDASH)
 2x Addressable V2 RGB LED connector (JARGB_V2)
 2x RGB LED connector(JRGB)
 1x TPM pin header(Support TPM 2.0)
 4x USB 2.0 ports
 2x USB 3.2 Gen1 Type A ports
 1x USB 3.2 Gen2 Type C ports
LED FEATURE  4x EZ Debug LED

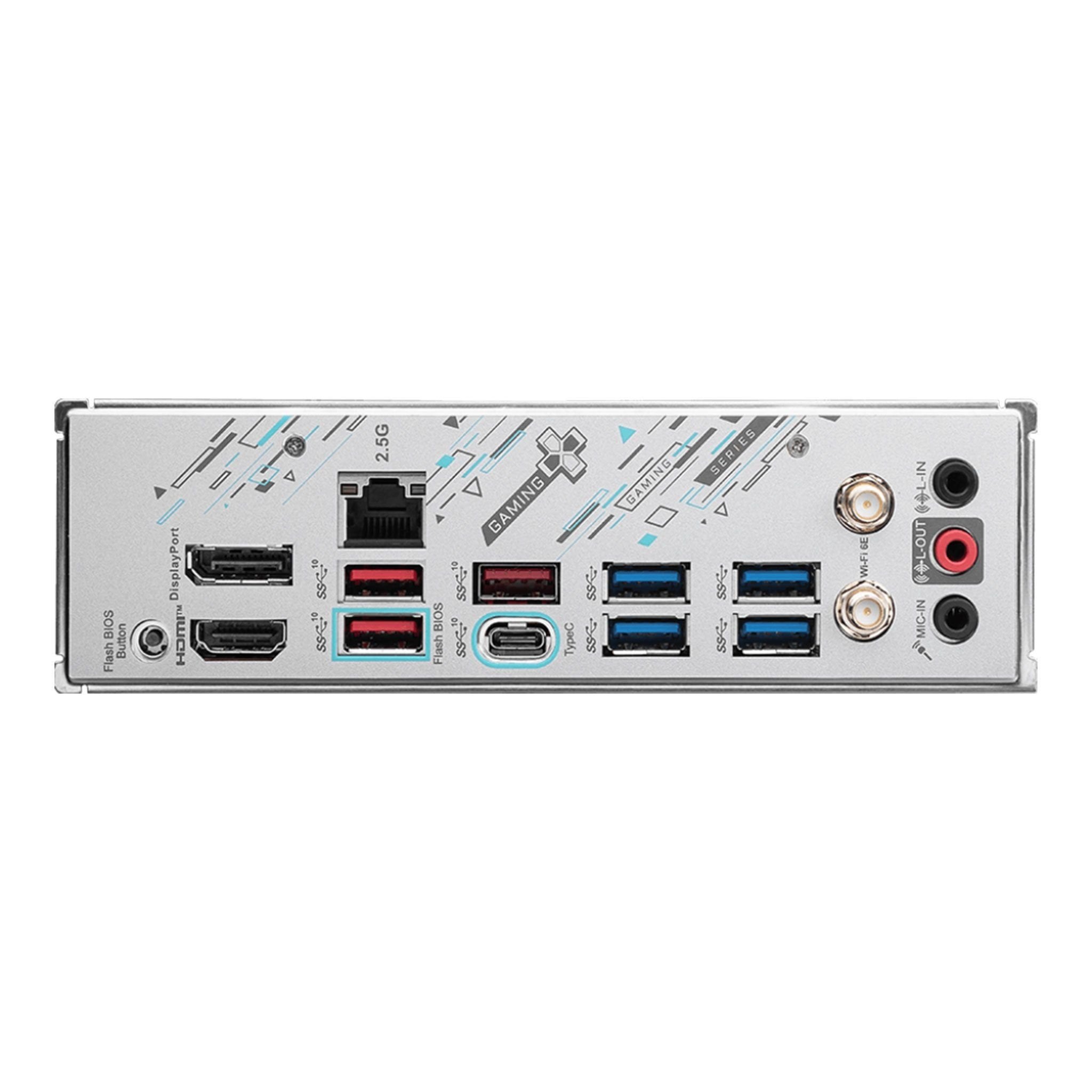

BACK PANEL PORTS
  1. DisplayPort
  2. 2.5G LAN
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. Flash BIOS Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. Audio connectors
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO mATX
 243.84mmx243.84mm
