THÔNG SỐ KỸ THUẬT
Model Name

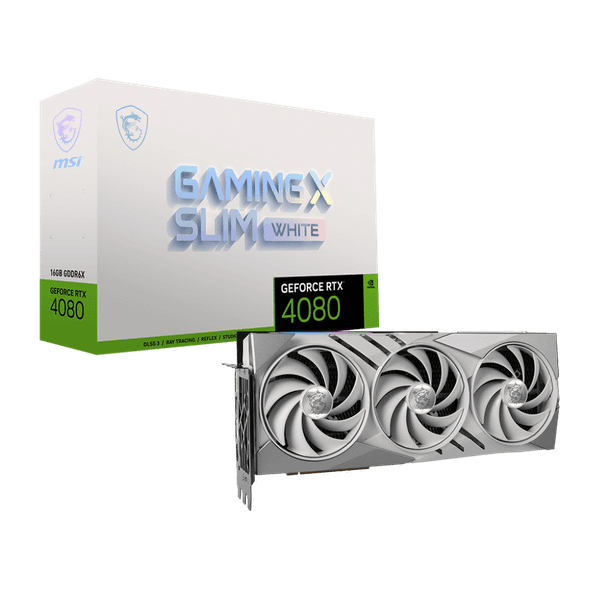

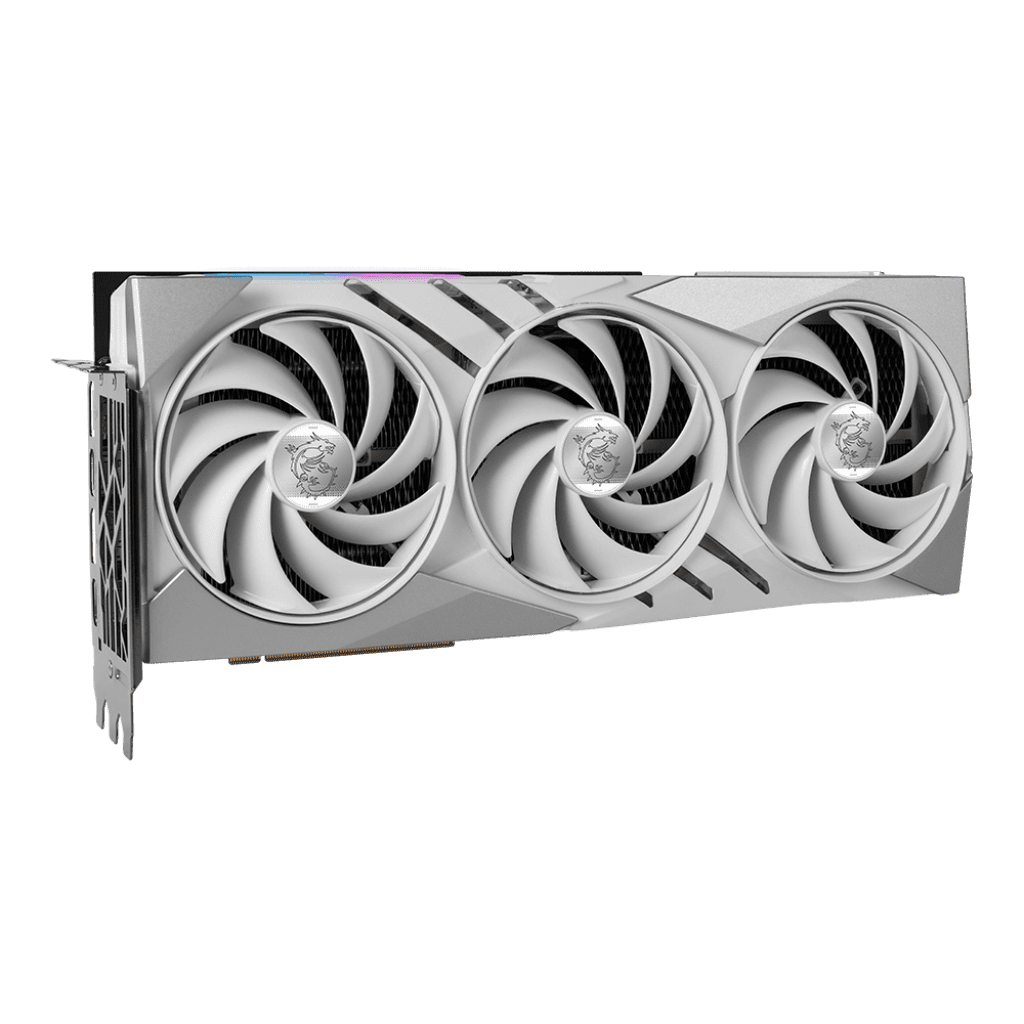

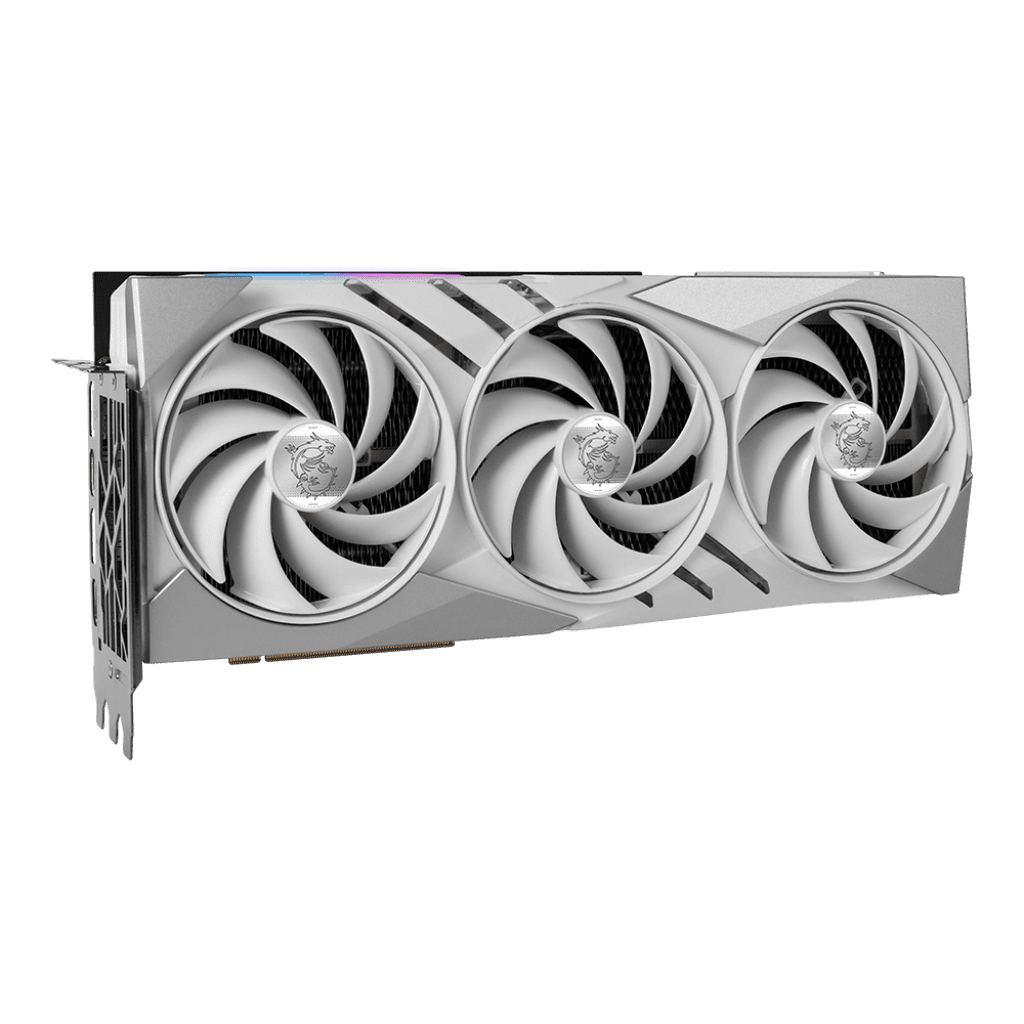

GeForce RTX™ 4080 16G GAMING X SLIM WHITE
Graphics Processing Unit
NVIDIA® GeForce RTX™ 4080 16GB
Interface
PCI Express® Gen 4
Core Clocks
Extreme Performance: 2610 MHz (MSI
Center)
Boost: 2595 MHz (GAMING & SILENT Mode)
CUDA® CORES
9728 Units
Memory Speed
22.4 Gbps
Memory
16GB GDDR6X
Memory Bus
256-bit
Output
DisplayPort x 2 (v1.4a)
HDMI™ x 2 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI™ 2.1a)
HDCP Support
Y
Power consumption
320 W
Power connectors
16-pin x 1
Recommended PSU
850 W (Min.750W)
Card Dimension (mm)
322 x 136 x 62 mm
Weight (Card / Package)
1673 g / 2545 g
DirectX Version Support
12 Ultimate
OpenGL Version Support
4.6
Maximum Displays
4
G-SYNC® technology
Y
Digital Maximum Resolution
7680 x 4320
FEATURES
TRI FROZR 3
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
Copper Baseplate
A solid nickel-plated copper baseplate transfers heat from the GPU to all heat pipes for better cooling.
Core Pipe
Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control
Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Metal Backplate
A sturdy backplate helps to strengthen the graphics card while a flow-through design reduces trapped heat.
Dual BIOS
Dual BIOS lets you set the priority to full performance in GAMING mode or low noise in SILENT mode
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.

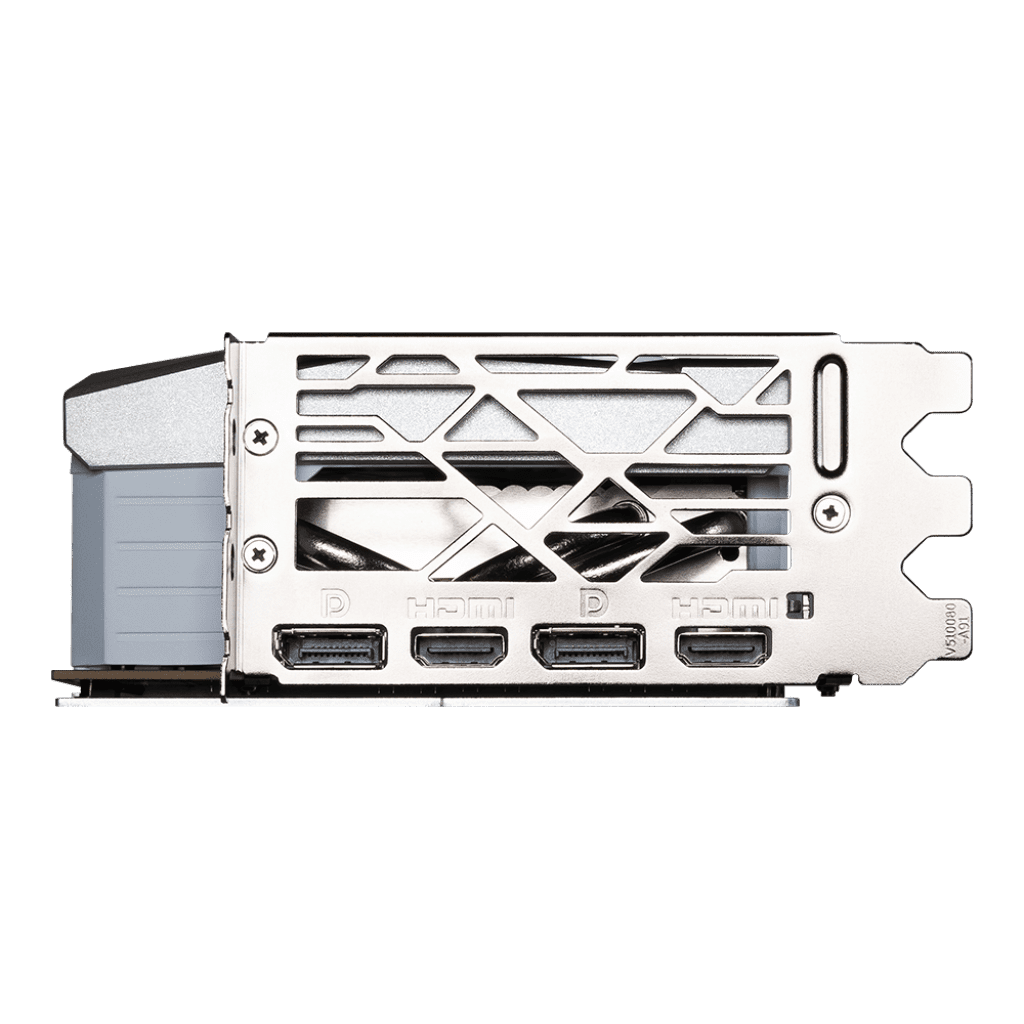

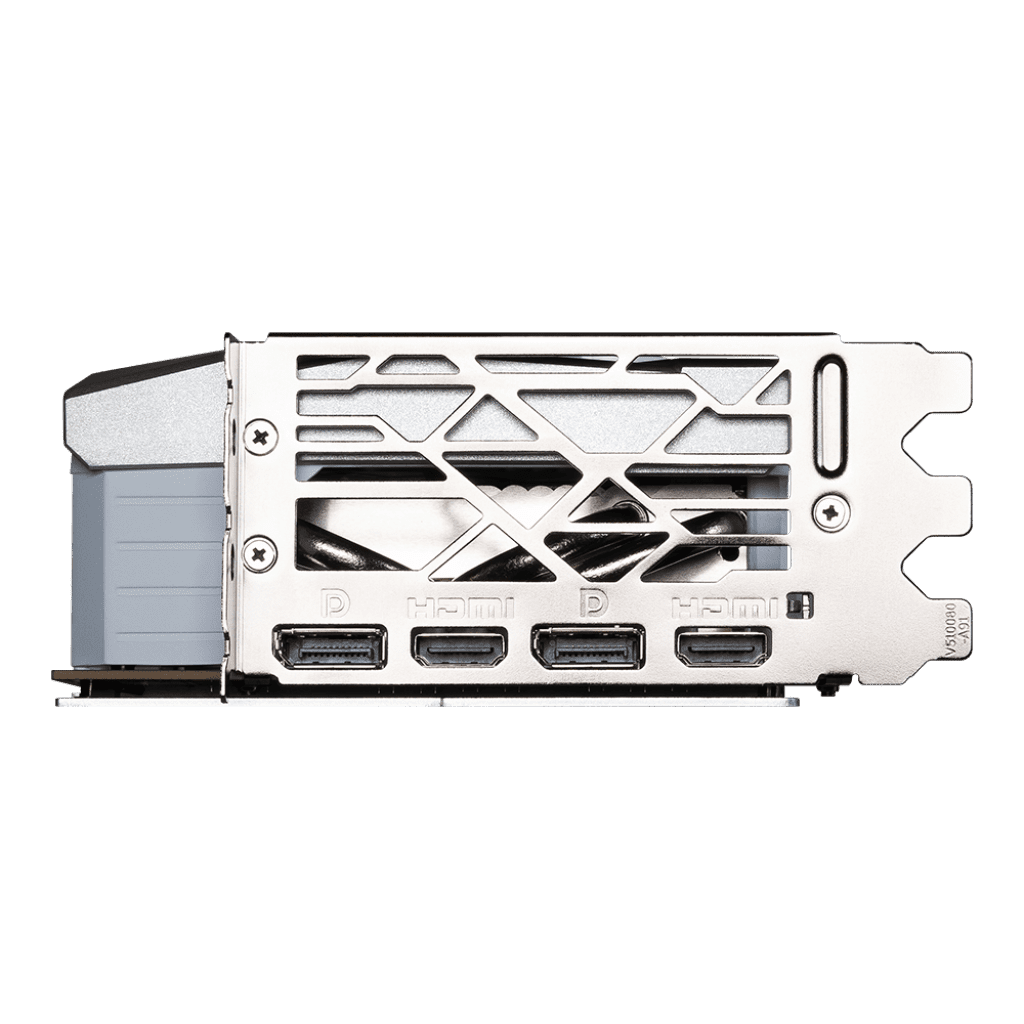

CONNECTIONS
1. DisplayPort x2
2. HDMI™ x2
