Thông tin chung:
- Hãng sản xuất: MSI
- Bảo hành: 36 Tháng

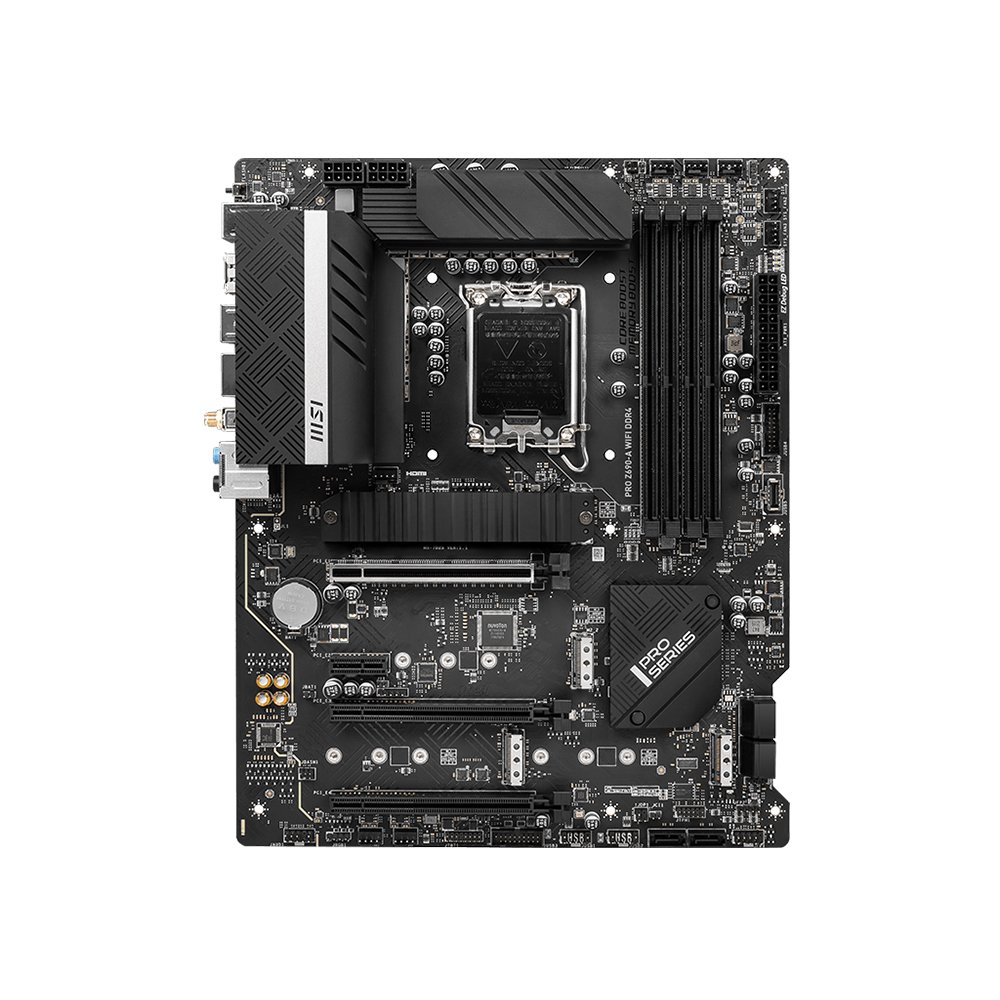

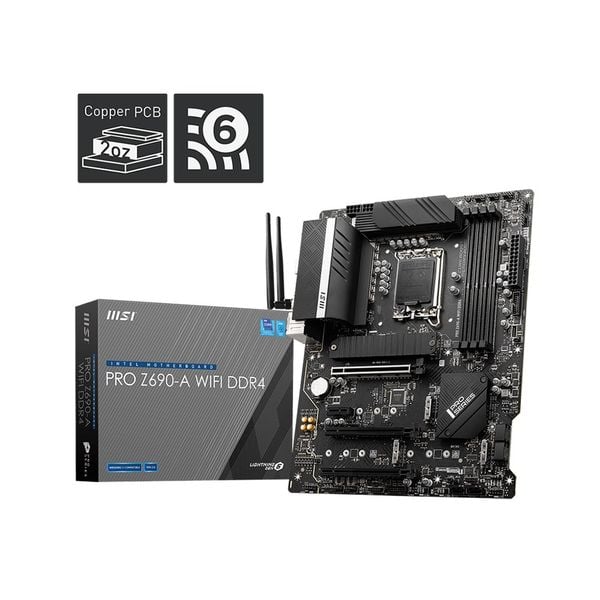

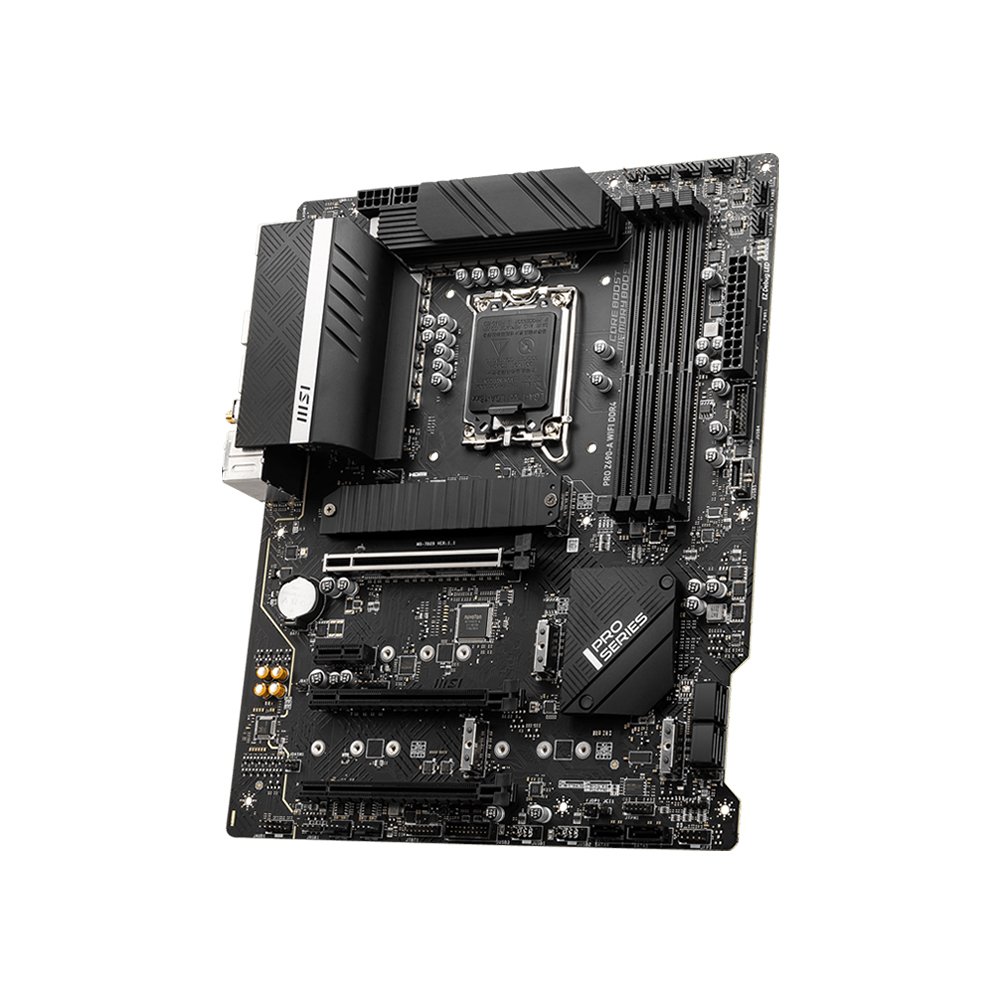

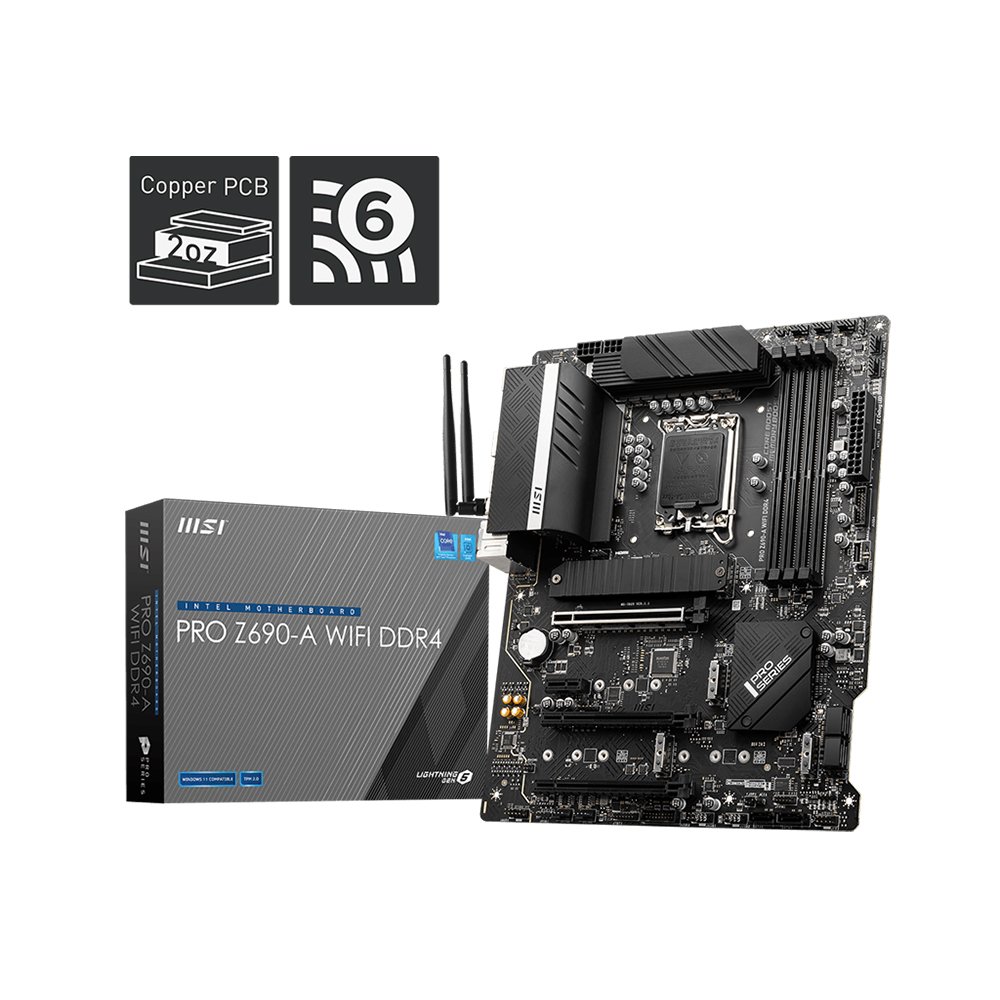

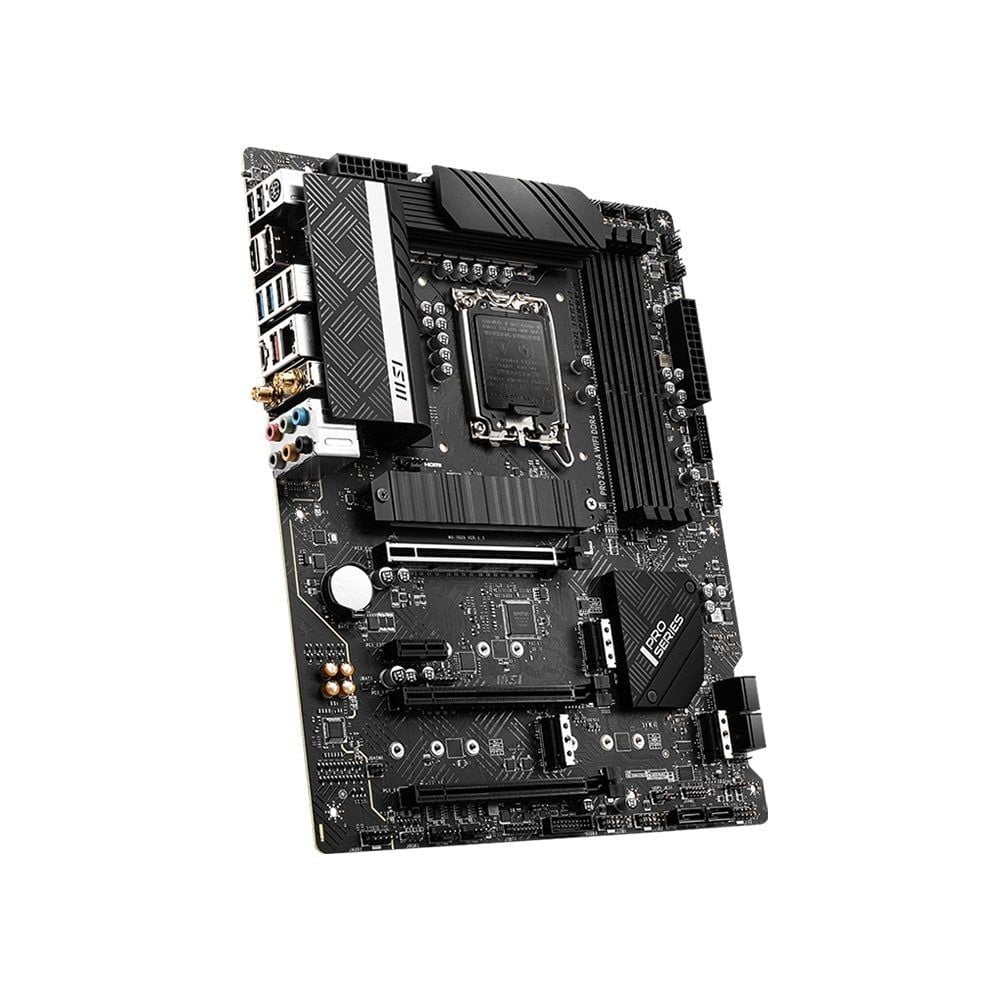

Bo mạch chủ MSI PRO Z690-A WIFI DDR4
Thông số kỹ thuật :
PROCESSOR | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
CHIPSET | Intel® Z690 Chipset |
MEMORY | 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency:
Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
EXPANSION SLOTS | 3x PCIe x16 slots
|
ONBOARD GRAPHICS | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
MULTI-GPU | Supports AMD® CrossFire™ Technology |
STORAGE | 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M)
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
USB | Intel® Z690 Chipset
|
AUDIO | Realtek® ALC897 Codec
|
LAN | 1x Intel® I225-V 2.5Gbps LAN |
WIRELESS LAN & BLUETOOTH® | Intel® Wi-Fi 6
|
INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
LED FEATURE | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
BACK PANEL PORTS | Keyboard / Mouse DisplayPort USB 2.0 LAN port Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
DIMENSIONS | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
