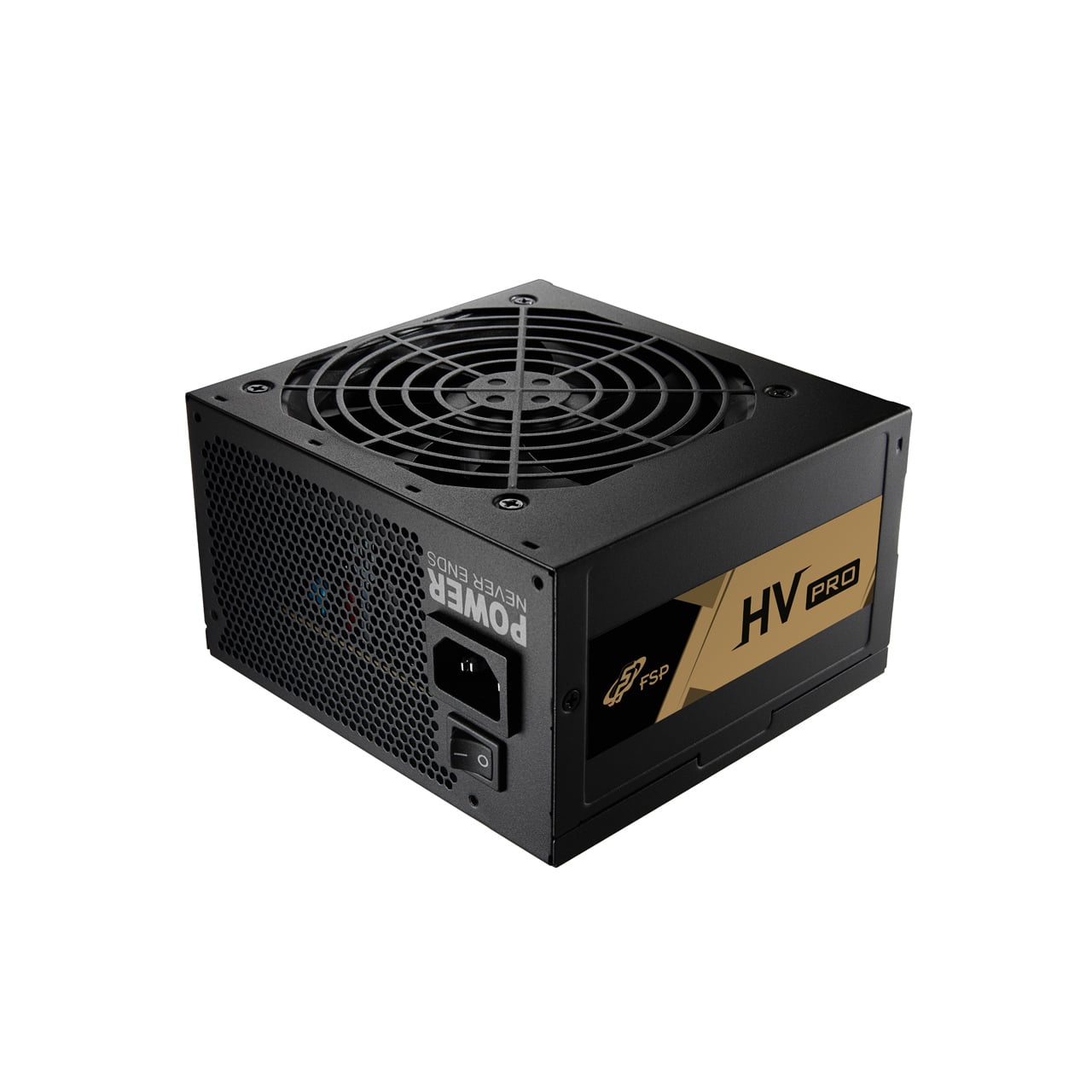

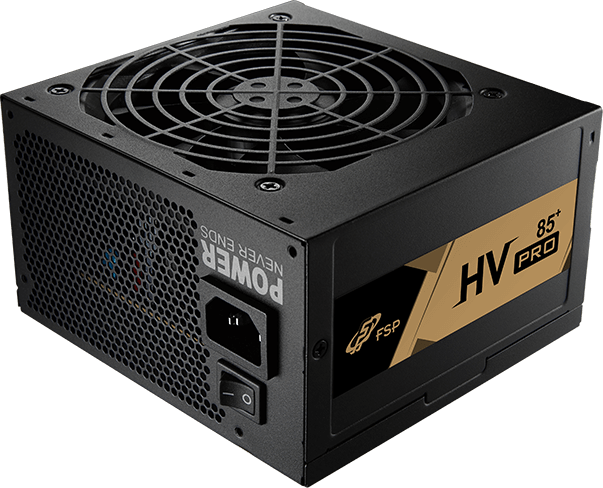

The HV PRO series complies features custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus™ rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
- Complies with ATX12 v2.52 & EPS12 v2.92
- Efficiency 85% @ typical Load
- Active PFC ≧ 0.9
- Hold up time > 17ms @80% Load
- +12V Single-Rail Design
- +5V &3.3V DC to DC Module Design
- 120mm Silent & long life Fan
- Complete Protections: OCP/OVP/OPP/SCP
Specifications
| Model | FSP650-51AAC |
| Rated Output Power | 650W |
| Form Factor | ATX |
| 80 PLUS Certification | 230V EU Standard |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 85% |
| Fan Type | Sleeve Fan, 120mm |
| Dimensions(L x W x H) | 150 x 140 x 86mm |
| Operation Temp. | 100,000 Hrs |
| Protection | OCP, OVP, OPP, SCP |
True Power, You Can Count On
With 0.9 Active Power Factor Correction, the V PRO series comes across with guarantee wattage of continuous power, delivers full power to your PC system.
For gaming enthusiast, the HV PRO series features with dual CPU power connectors to support high-end motherboard and provide CPU stable power.
Optimal Cooling
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.
Stable DC to DC Output Quality
For maximum efficiency and stable voltage, HV PRO series with DC to DC circuit design offers benefits such as better compatibility and reliability, and high system compatibility especially in cross regulation mode.
Global Safety Standard
HV PRO series follows global safety standard, its grounded design can enhance current stability and ensure safety under maximum operation.
80 Plus® Certification
HV Pro series meet 80 PLUS 230V EU Standard and rated for greater efficiency to 85%, so you'll enjoy lower energy bills.
AC/DC
| AC Input | 200-240Vac~ 5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 54.1A | 0.3A | 2.5A |
| Max Combined Power | 100W | 649.2W | 3.6W | 12.5W | |
| Total Power | 650W | ||||

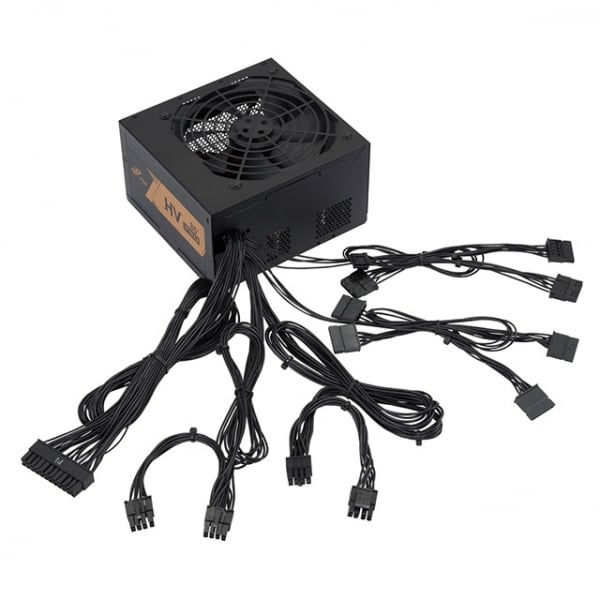

Cables
 |  |  |  |  |  | |
| ATX 24 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) | Floppy | |
| Connectors | 1 | 2 | 2 | 4 | 2 | 1 |
