SPECIFICATION
| Graphics Engine | |
| Video Memory | 16GB GDDR6 |
| Stream Processor | 5120 Units |
| Engine Clock(OC) | 2105MHz(Game) / up to 2340MHz(Boost) |
| Engine Clock(STD/Silent) | 2015MHz(Game) / up to 2250MHz(Boost) |
| Memory Clock | 16.0 Gbps |
| Memory Interface | 256-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 |

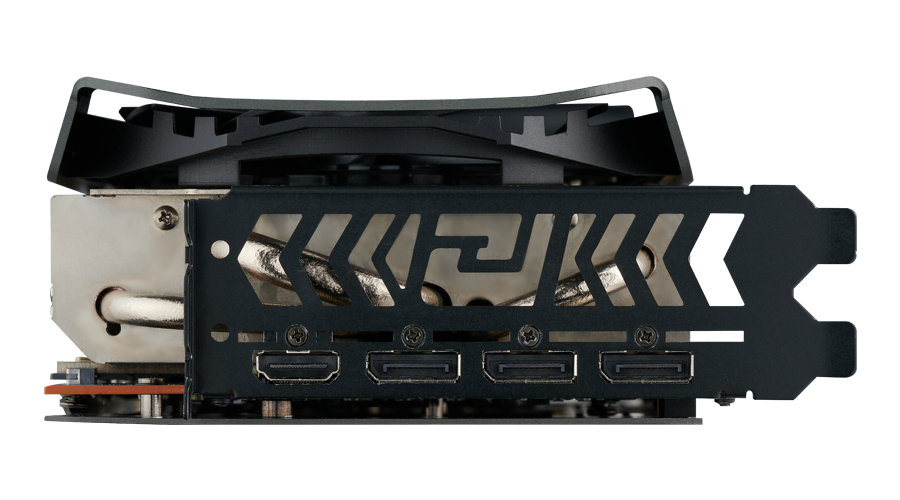

| Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
| Customized Specifications | |
| Product Remark | Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Feature Support
| OpenGL | Support |
| CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
| AMD Hypermemory | |
Maximum Resolution
| VGA | |
| DVI | |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
Power Specs + Board Dimensions
| Board Dimensions | 320mm*135mm*62 mm |
| Minimum System Power requirement (W) | 900W |
| Extension Power Connector | Three 8-pin PCI Express Power connectors |
The entire information provided herein are for reference only.
PowerColor reserves the right to modify or revise the content at anytime without prior notice.
