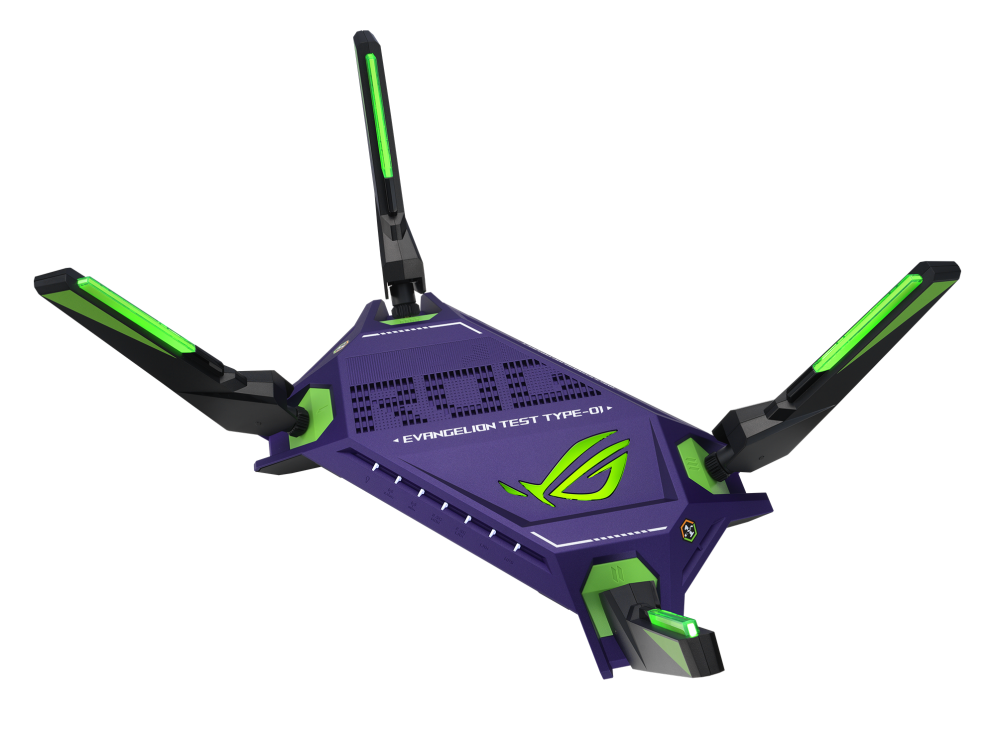

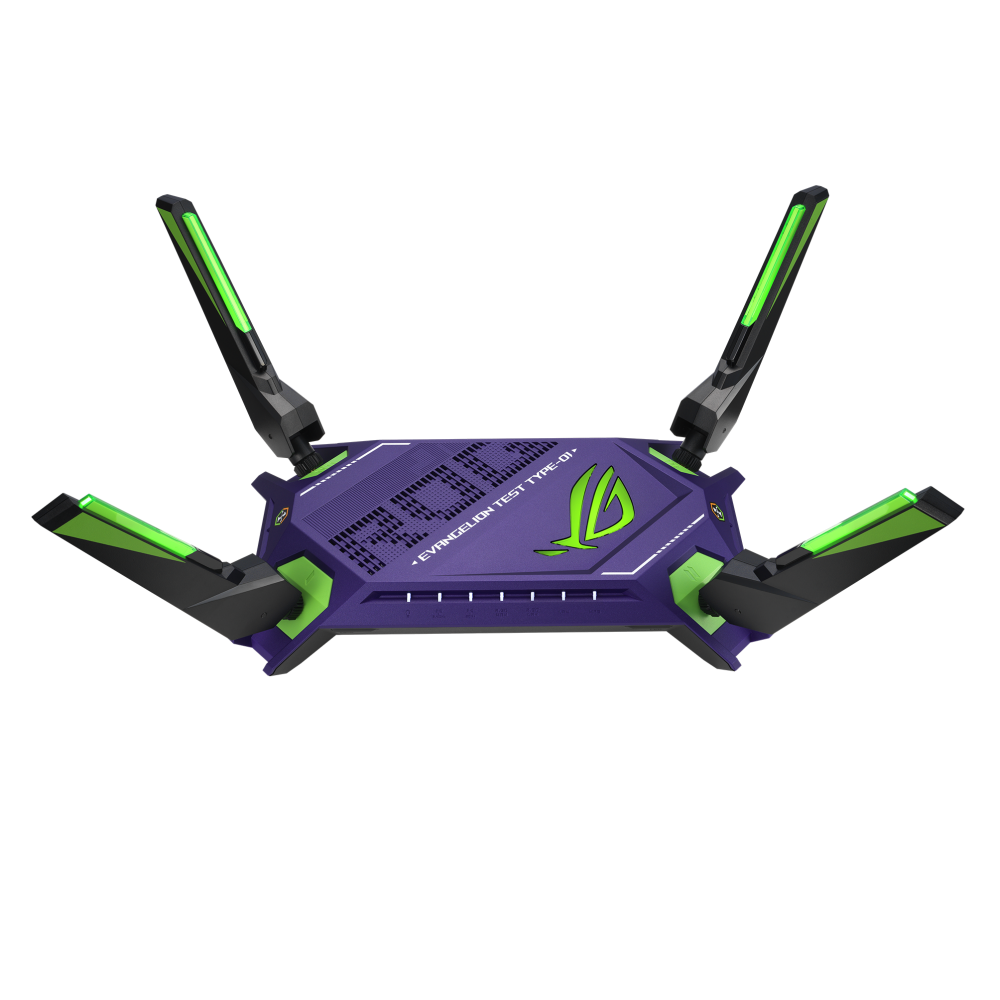

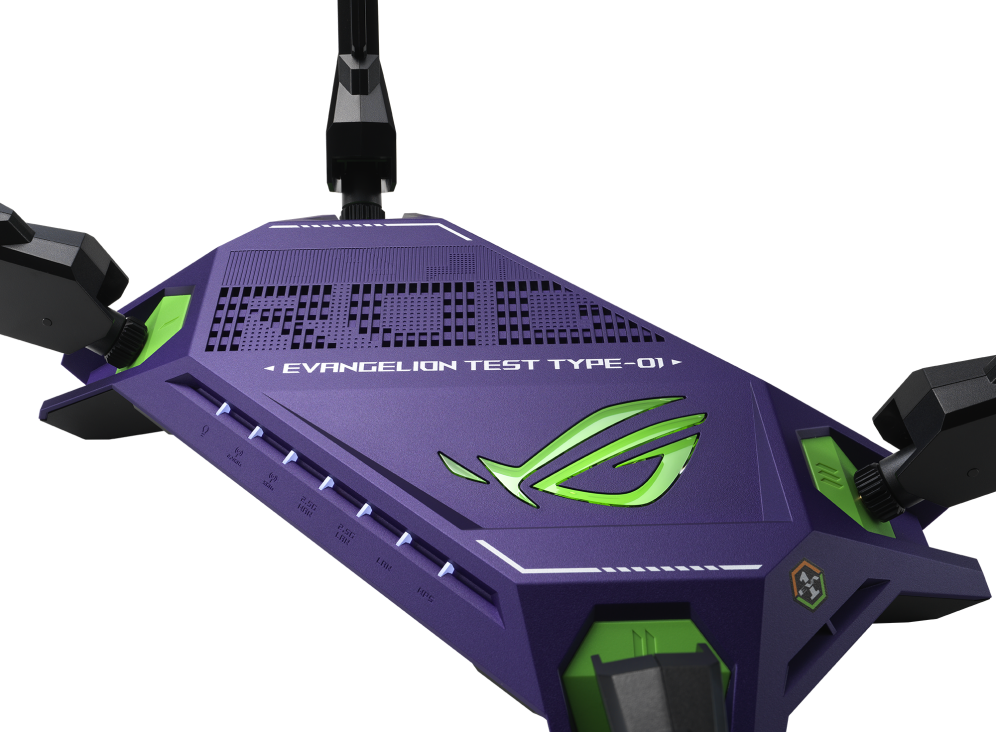

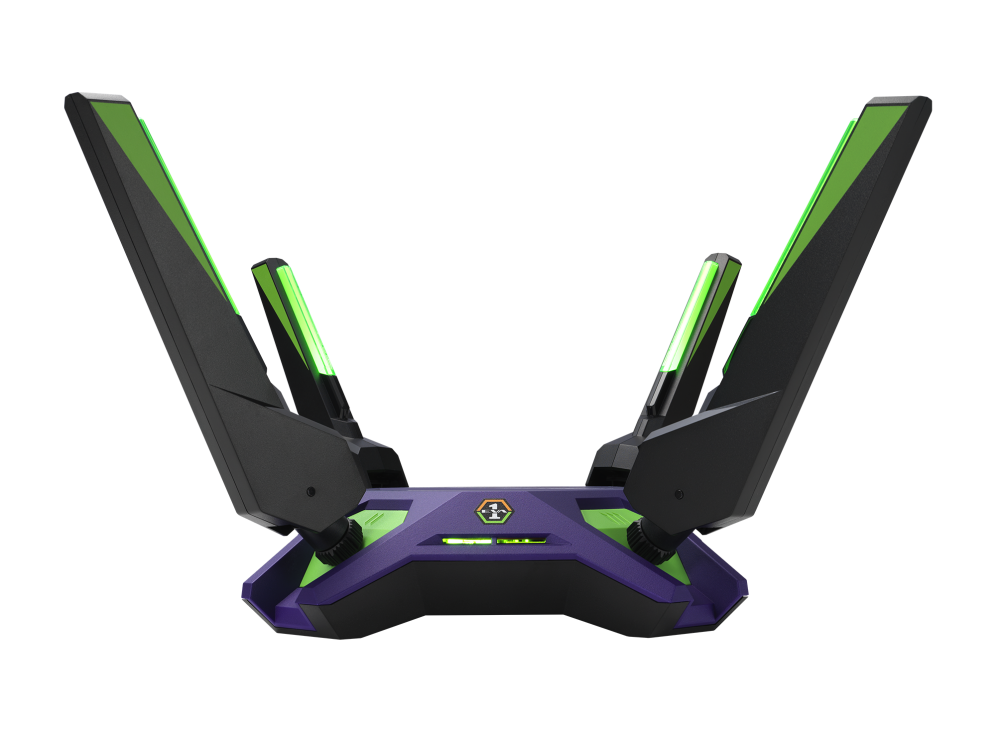

ROG Rapture GT-AX6000 EVA Edition
Model Name
GT-AX6000 EVA Edition
AX technology
Yes
Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
External antenna x 4
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash, 1 GB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth,
Operating Frequency
2.4G Hz / 5 GHz

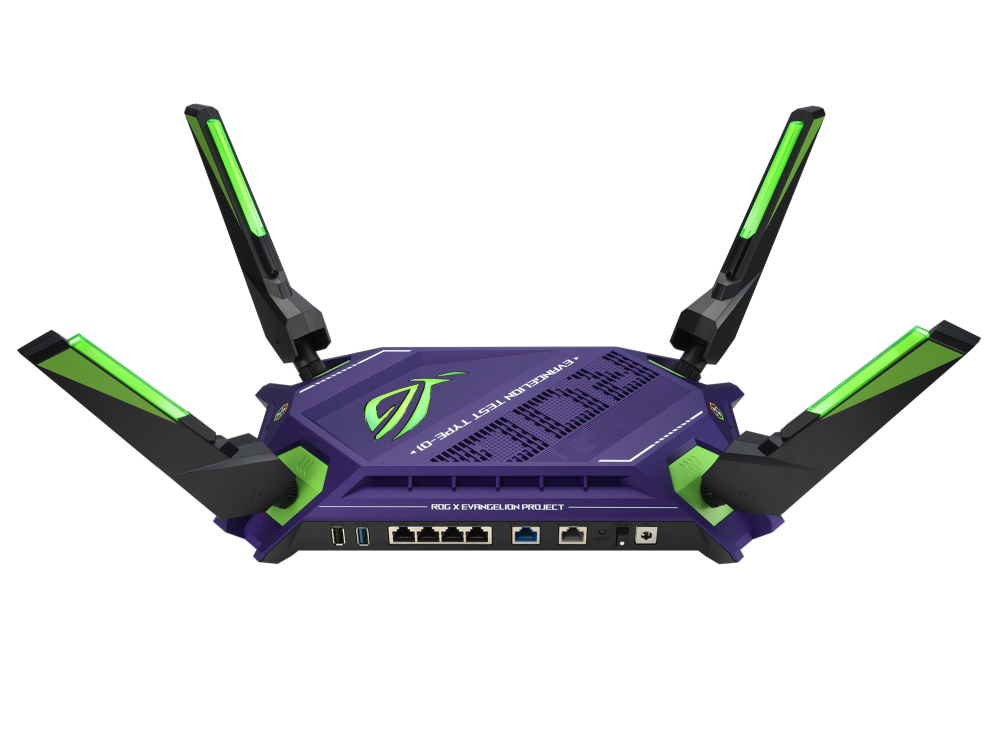

Ports
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 1
Button
WPS Button, Reset Button, Power Button, LED Control Button
LED Indicator
Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 WPS x 1
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
Package content
GT-AX6000 WiFi 6 Dual-Band Gaming Router RJ-45 cable Power Adapter Quick Start Guide Warranty Card
Product Weight (g)
1121.4 g
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : Yes
ROG_First : Yes
OpenNAT (Game Profile) : Yes
Gaming port : Yes
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
WAN
Explicit beamforming : Yes
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : Yes
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
Administration
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
