MODEL NAME

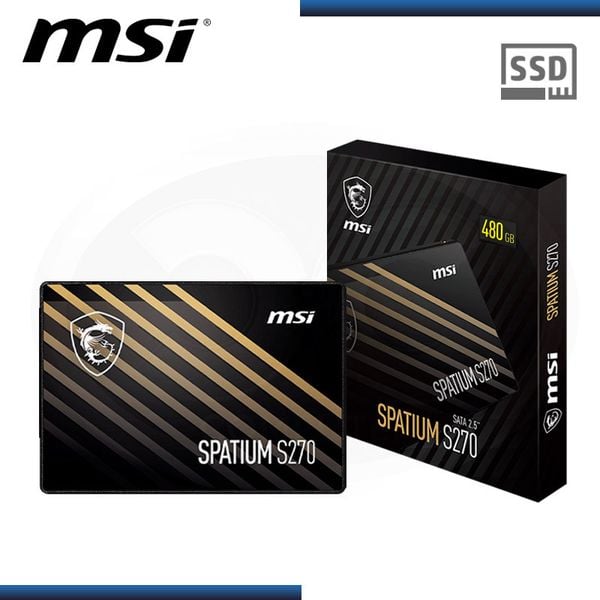

SPATIUM S270 SATA 2.5"

CAPACITY

480GB

CONTROLLER

PHISON S11

FLASH MEMORY

3D NAND

FORM FACTOR

SATA 2.5”

INTERFACE

SATA III 6Gbs

COMPATIBILITY

SATA III (6Gbps) / II (3Gbps) / I (1.5Gbps)

DIMENSIONS

100.20mm (L) x 69.85mm (W) x 7.00mm (H)

SEQUENTIAL READ UP TO (MB/S)

500

SEQUENTIAL WRITE UP TO (MB/S)

450

RANDOM READ 4KB UP TO (IOPS)

55K

RANDOM WRITE 4KB UP TO (IOPS)

80K

MAXIMUM OPERATING POWER (W)

2

IDLE POWER PS3 (MW)

335

DEVSLP (mW)

4.9

OPERATING TEMPERATURES

0°C – 70°C

STORAGE TEMPERATURES

-40°C – 85°C

TERABYTES WRITTEN (TBW)

250

MEAN TIME BETWEEN FAILURE (MTBF)

Up to 2,000,000 Hours

LIMITED WARRANTY

3 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES

TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
Over-Provision
