Product Number | MAM-D8PN-318PK-30 |
Exterior Color | Black |
CPU Socket | LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4 |
Dimensions (L x W x H) | 162.2 x 150.6 x 165.6 mm / 6.4 x 5.9 x 6.5 inch |

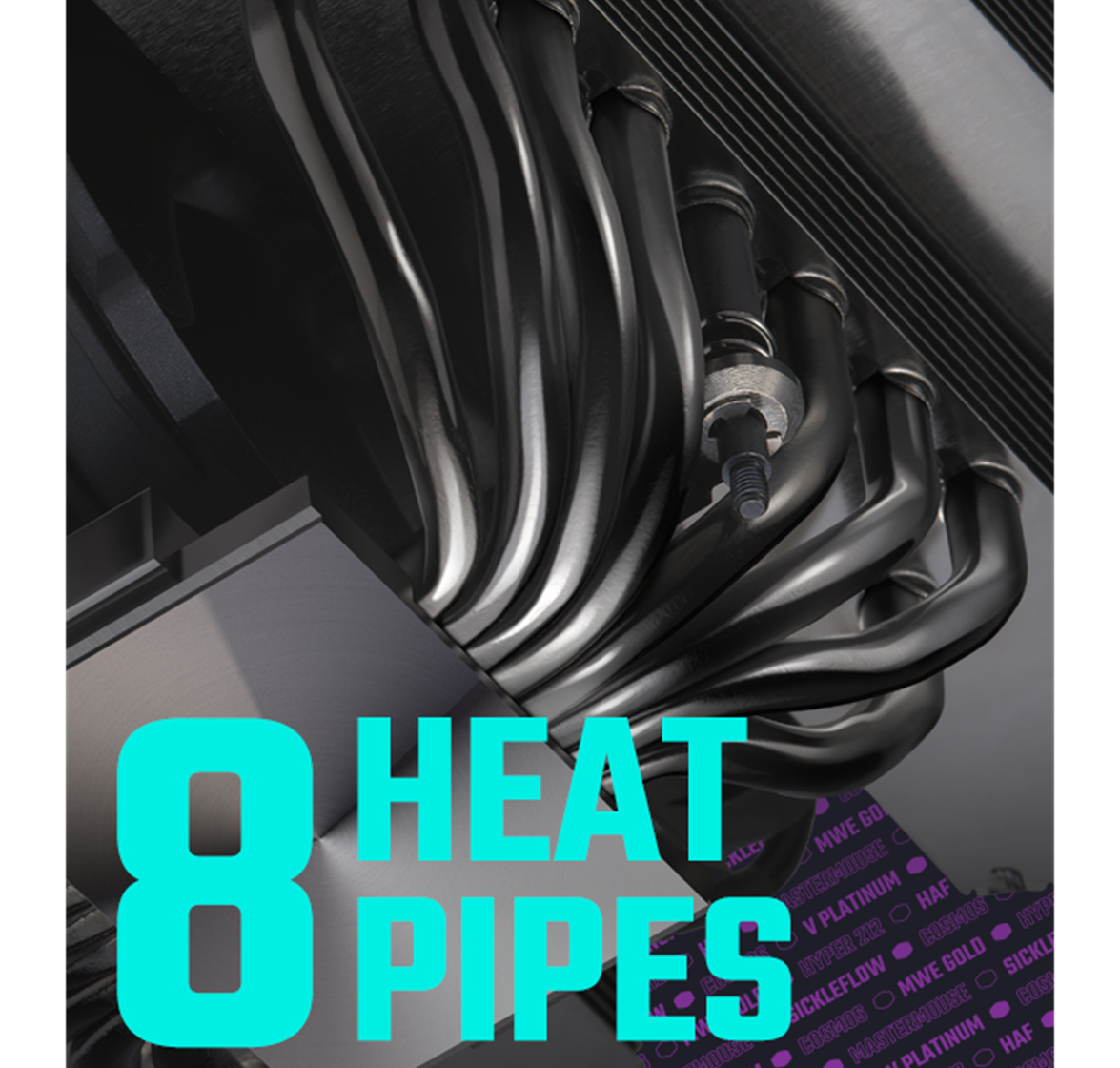

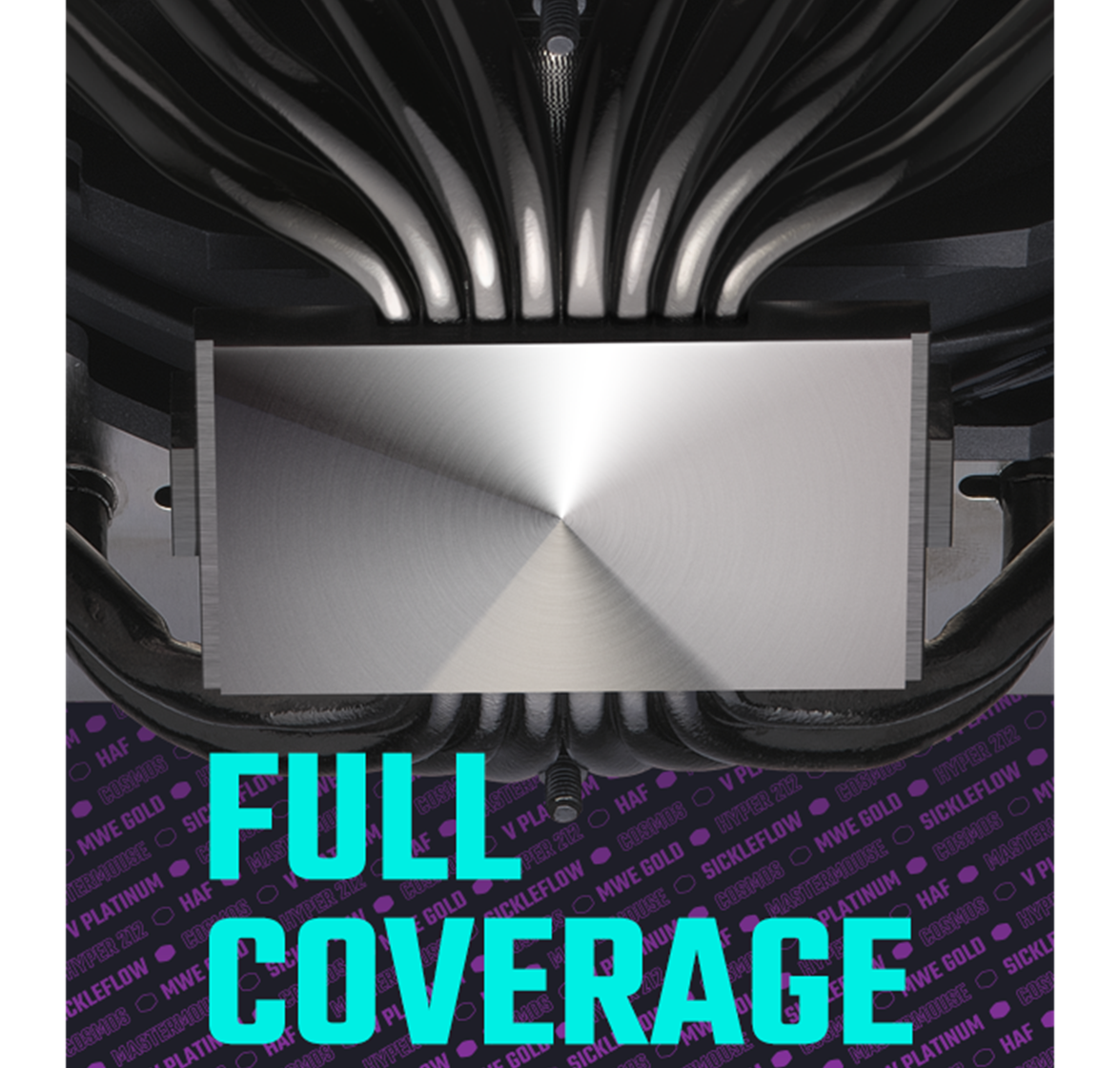

Heat Sink Material | 8 Heat Pipes, Aluminum Fins |

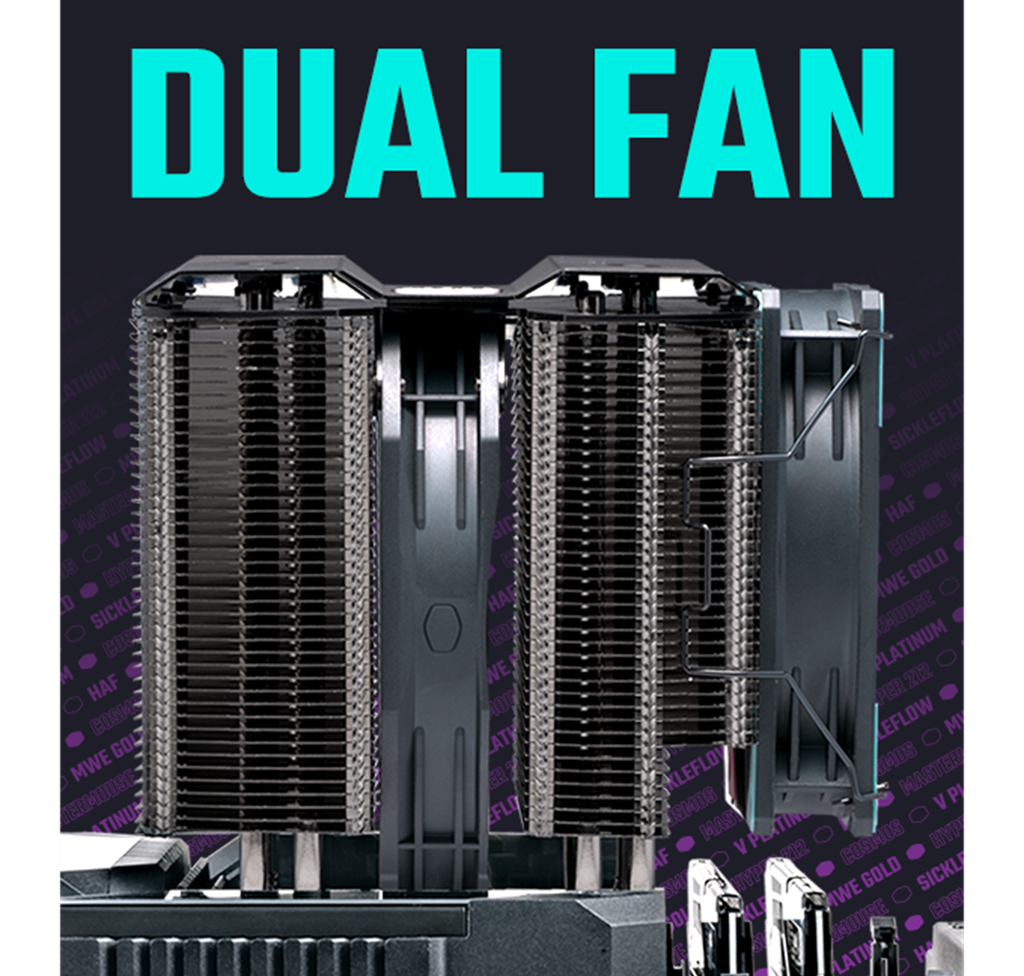

Fan Dimensions (L x W x H) | 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm |
Fan Profiles | 135mm Fan: Non-Led, 120mm Fan: Addressable Gen 2 RGB |
Fan Quantity | 1 PCS |
Fan Speed | 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-2400 RPM ± 15% |
Fan Airflow | 135mm Fan: 63.6 CFM (Max), 120mm Fan: 75.2 CFM (Max) |
Fan Pressure | 135mm Fan: 1.92 mmH₂O, 120mm Fan: 3.63 mmH₂O |
Fan MTTF | >200,000 Hours |
Fan Noise Level | 135mm Fan: 24.6 dBA (Max), 120mm Fan: 30 dBA (Max) |
Fan Bearing Type | Loop Dynamic Bearing |
Fan Power Connector | 4-Pin (PWM) |
Fan Rated Voltage | 12VDC |
Fan Rated Current | 135mm Fan: 0.1 A, 120mm Fan: 0.18 A |
Fan Safety Current | 135mm Fan: 0.25A, 120mm Fan: 0.35A |
Fan Power Consumption | 135mm Fan: 1.2-2.4W, 120mm Fan: 2.16W |
Warranty | 5 years |
Series | MasterAir |
Cooler Type | Air Cooler |
Heatpipes | 8 |
