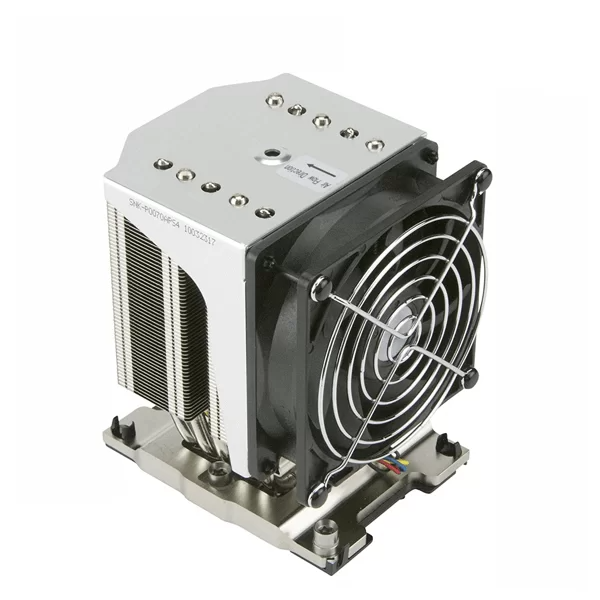

HEATSINK SUPERMICRO SNK-P0070APS4 DESCRIPTION
This CPU heat sink is designed for Supermicro X11 generation general 4U servers and workstations equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
HEATSINK SUPERMICRO SNK-P0070APS4 SPECIFICATIONS
| PRODUCT TYPE & MANUFACTURER | Heatsink Supermicro |
|---|---|
| SERVER FORM FACTOR | 4U |
| COOLING TYPE | Active |
| CPU CONFIGURATION | Uni Processor, Dual Processor |
| SUPPORTED CPU SKU | Intel® Xeon® Scalable Processors |
| SUPPORTED CPU SOCKET | FCLGA3647-0 (Narrow Mounting Mechanism) |
| SUPPORTED CPU TDP | Up to 205 Watts |
| ATTACHED COOLING FAN | Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 3,800 RPM Acoustic Noise: 38.0 dB(A) at Rated Speed Fan Dimensions: 92L x 92H x 25W (mm) Position: Front Side MTBF/MTTF: 108,798 Hours |
| WARRANTY | 1 year warranty |
| PRODUCT ENVIRONMENTAL COMPLIANCE | RoHS and REACH compliant, details available upon request |
