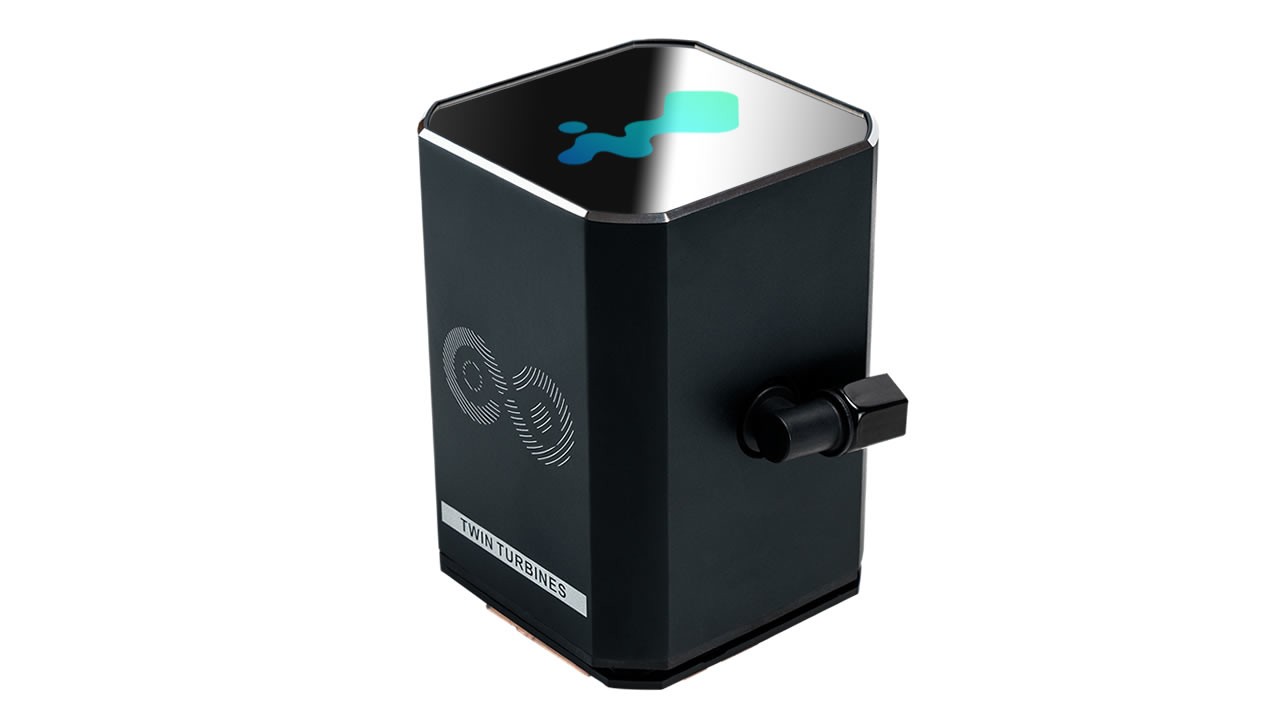

Patented Integrated Twin Turbines
The patented twin-turbine function pushes both currents toward the copper cold-plate to significantly reduce the temperature.
* If one pump fails, the other pump will still function with a cautionary LED to warn users.
Twin Turbines
Ultimate CPU Cooling Performance
Sandblasted, Anodized Aluminium
Mirror-Gloss Finish
Diamond-Cut Outline

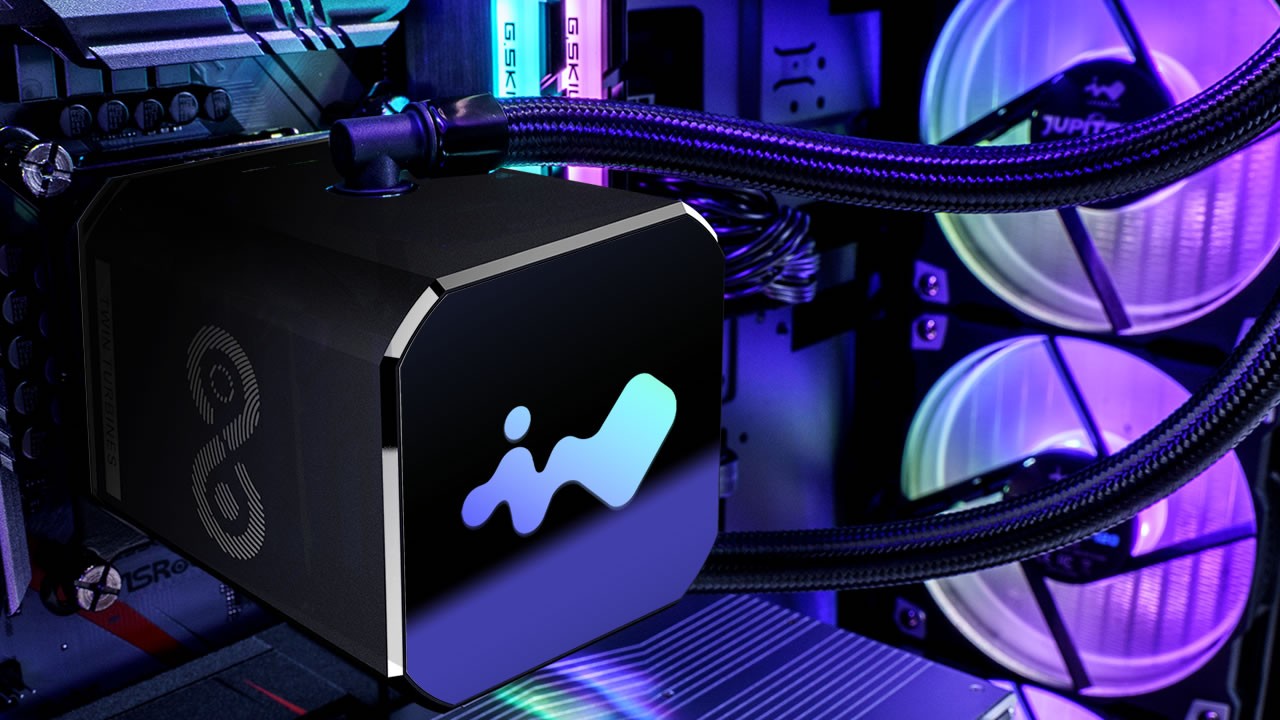

Rock the Aluminium Block!
The gorgeous water block shell is made of anodized aluminium alloy with laser engraving and is complemented with a diamond-cut outline.

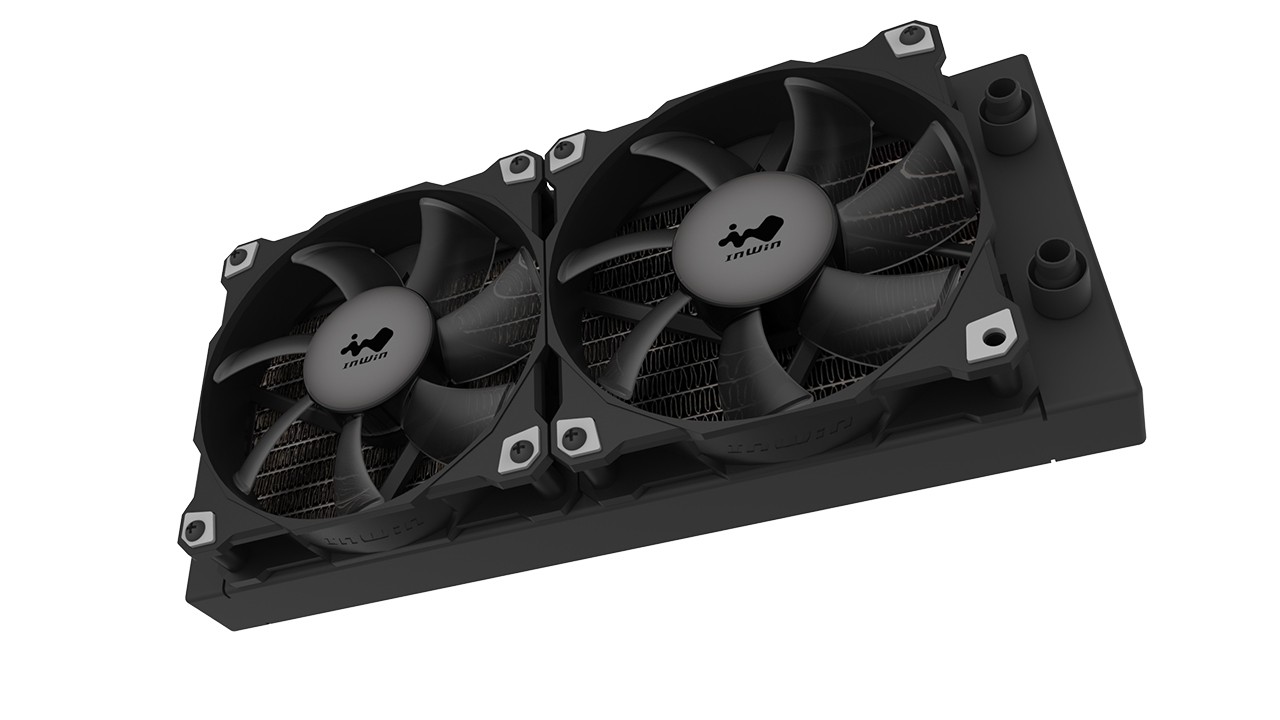

Enhanced AIO Thermal Performance
To provide excellent thermal performance, the cooling surface matters! InWin improved the radiator and the array of microchannel fins to increase the heat conducting efficiency!
Radiator Heat Dissipation Area
26%
Microchannel Fins Heat Dissipation Area
55%
Thriving Under Pressure!
The Jupiter Series AJF120 fans are specially designed for liquid-cooling. The fans feature high airflow, high static pressure and possess a high-speed mode that ramp up the RPMs to 2500.

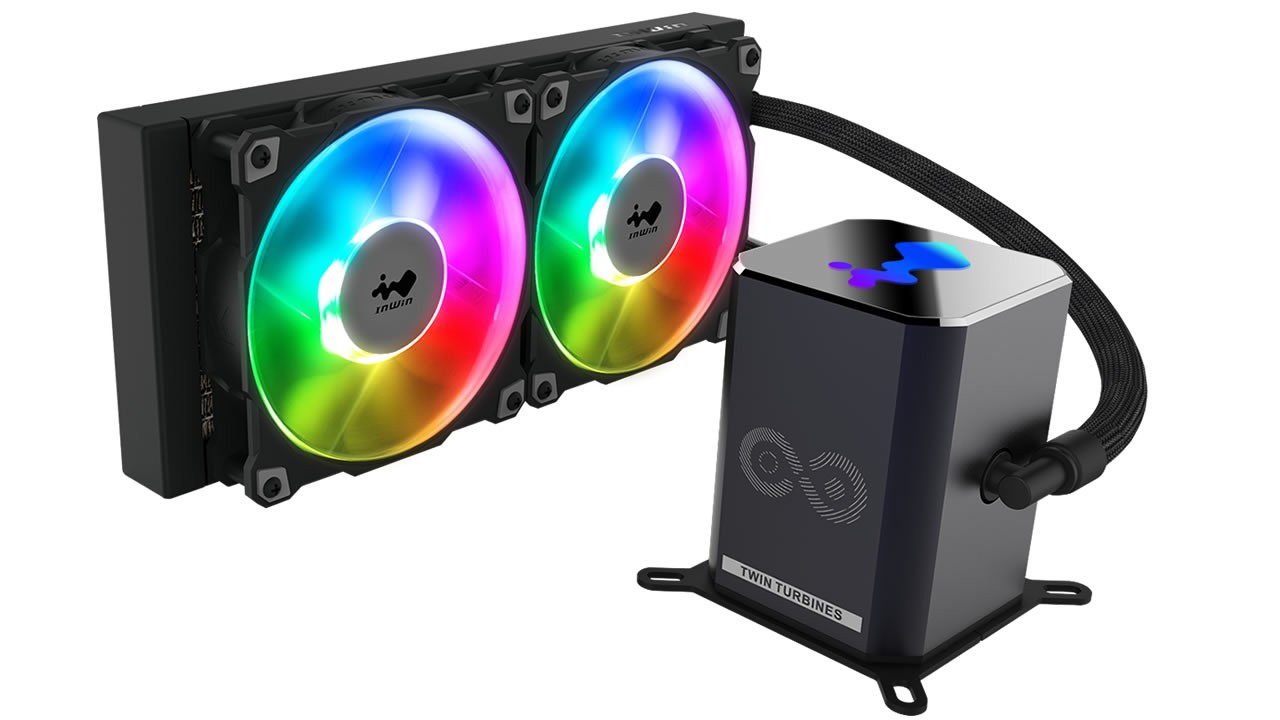

Syncs with Addressable Motherboards
The SR PRO is equipped with a vibrant ARGB logo, and also comes with Jupiter AJF120 ARGB static pressure fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.
* The addressable cable can only be used with motherboards with a 3-pin, 5V addressable header.
Cautionary LEDs
When the fans or pumps detect an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
Warning
Normal
Previous
Anti-Loose Cable Buckle
AJF120 fans feature connector buckles to ensure cables stay connected.
Corrosive Resistant Tubes
The tubing is sleeved with braided nylon for added protection. The rubber used is designed to withstand constant motion of water drawn from the twin-turbine pump.
Simplified CPU Cooling Installation
The modular, tool-free mounting bracket is designed for quick and painless installation on all major CPU sockets. Compatible with most Intel and AMD CPUs.
Anti-Loose Cable Buckle
AJF120 fans feature connector buckles to ensure cables stay connected.
Corrosive Resistant Tubes
The tubing is sleeved with braided nylon for added protection. The rubber used is designed to withstand constant motion of water drawn from the twin-turbine pump.
Next
Specifications
| Model | SR24 PRO | |
|---|---|---|
| Model Number | IW-LC-SR24PRO | |
| CPU Socket Support | Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 | |
| Radiator | Dimensions (L x W x H) | 277 x 120 x 27 mm 10.9 x 4.7 x 1.1" |
| Materials | Aluminium | |
| Tube Length | 400 mm | |
| Tube Material | Rubber with Nylon Braided Sleeve | |
| Water Block & Pump | Dimensions (L x W x H) | 68 x 68 x 100 mm 2.7 x 2.7 x 3.9" |
| Materials | Aluminium, Copper, Acrylic | |
| Pump Speed | 2400 ± 10% RPM | |
| Fan | Model | Jupiter Series AJF120 |
| Quantity Included | 2 PCS | |
| Dimensions (L x W x H) | 120 x 120 x 26 mm 4.7 x 4.7 x 1.0" | |
| Speed Mode (PWM) | PWM 500-2500 ± 10% RPM | |
| Noise Level | 23 dBA (Normal) | |
| Airflow | 101.5 CFM Max. | |
| Static Pressure | 4.22 mm / H2O | |
| Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | |
| Bearing Type | Double Ball Bearing | |

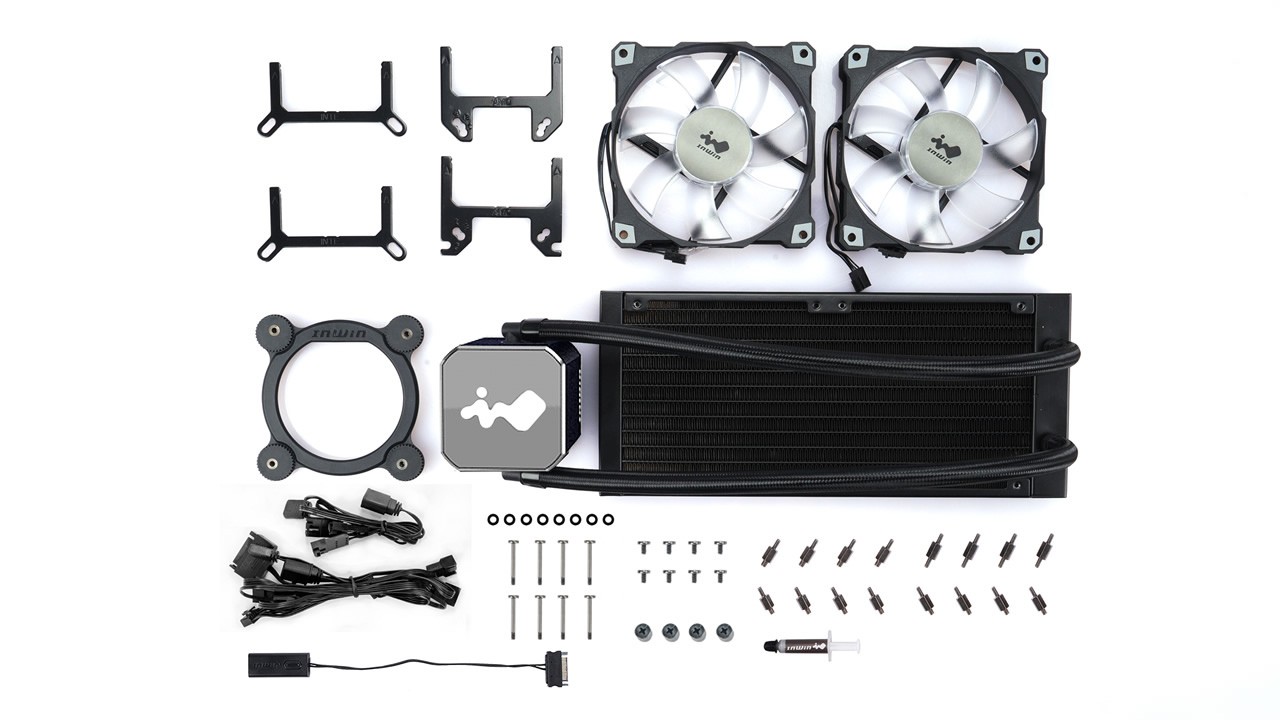

| Package Contents | InWin SR PRO Series 240mm CPU Liquid Cooler x 1 | |
| InWin AJF120 Addressable Fan x 2 | ||
| ARGB One-Click Controller | ||
| Fan and Radiator Mounting Screws Pack | ||
| Mounting Kit for CPU Sockets | ||
| Cable Pack | ||
| Package Dimension (L x W x H) | 331 x 265 x 136 mm 13 x 10.4 x 5.4" | |
| Net Weight | 1.8 kg / 4.0 lb | |
| Gross Weight | 2.4 kg / 5.3 lb | |
| Warranty | 5 Years | |
| * InWin products comply with RoHS regulation. * Specifications may vary based on different regions. | ||
