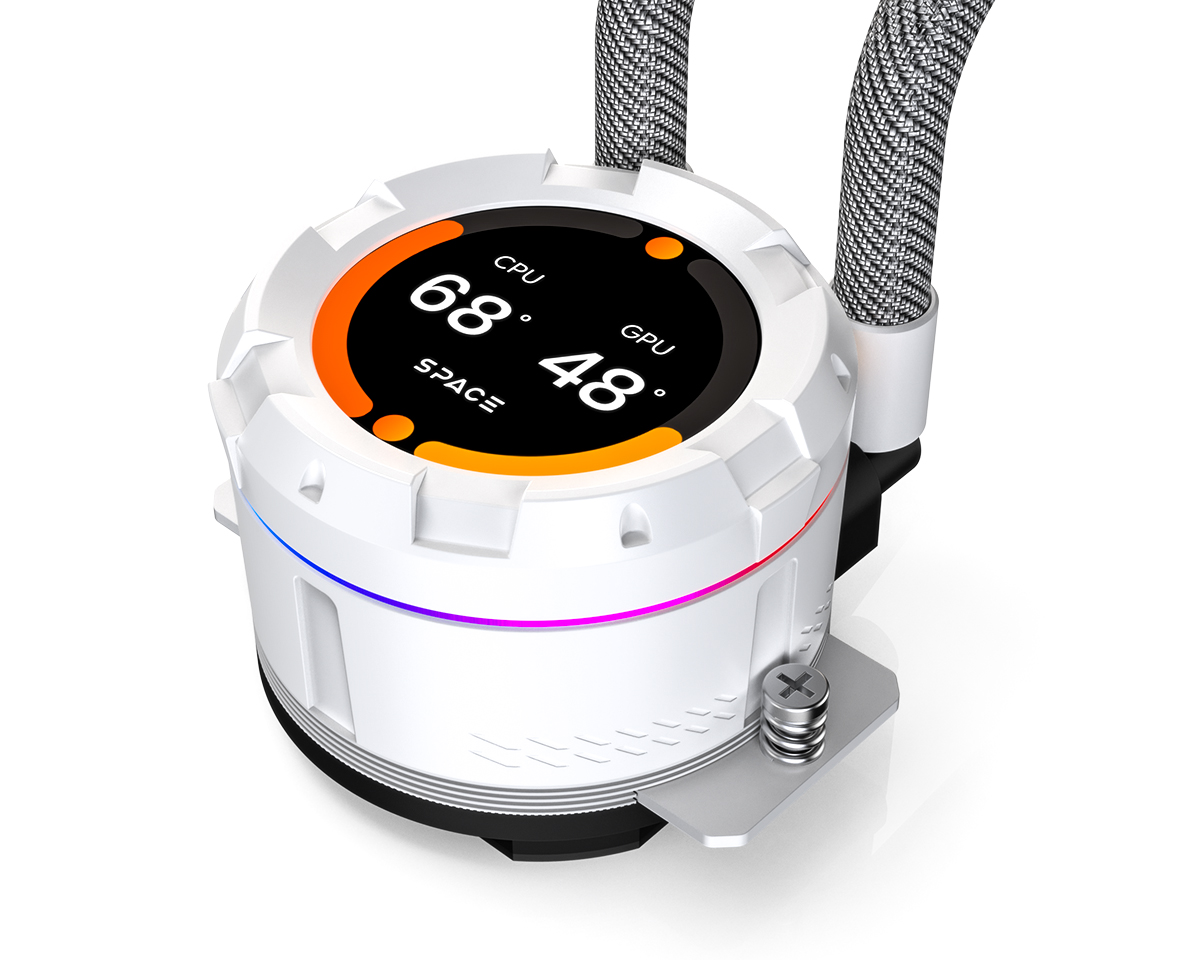

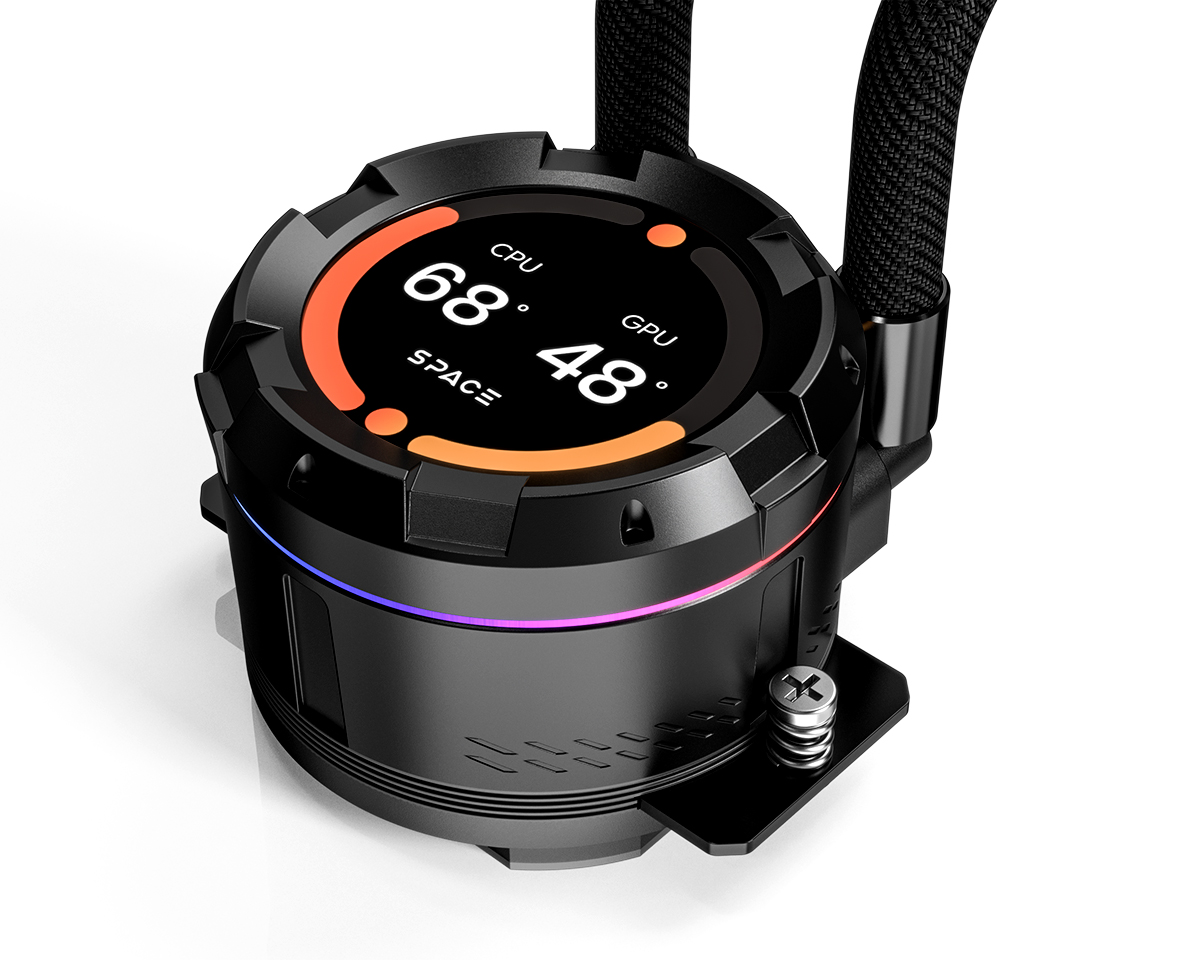

| LCD SCREEN | |
| System Requirement | Windows 10, Windows 11 |
| Dimension | 2.1 inch |
| Resolution | 480x480 |
| Backlight | 600cd/m² |
| Color | 24-bit, 16.7 million |
Compatibility | Intel LGA2066/2011/1851/1700/1200/1151/1150/1155/1156 |
AMD AM5/AM4 | |
TDP | 350W |

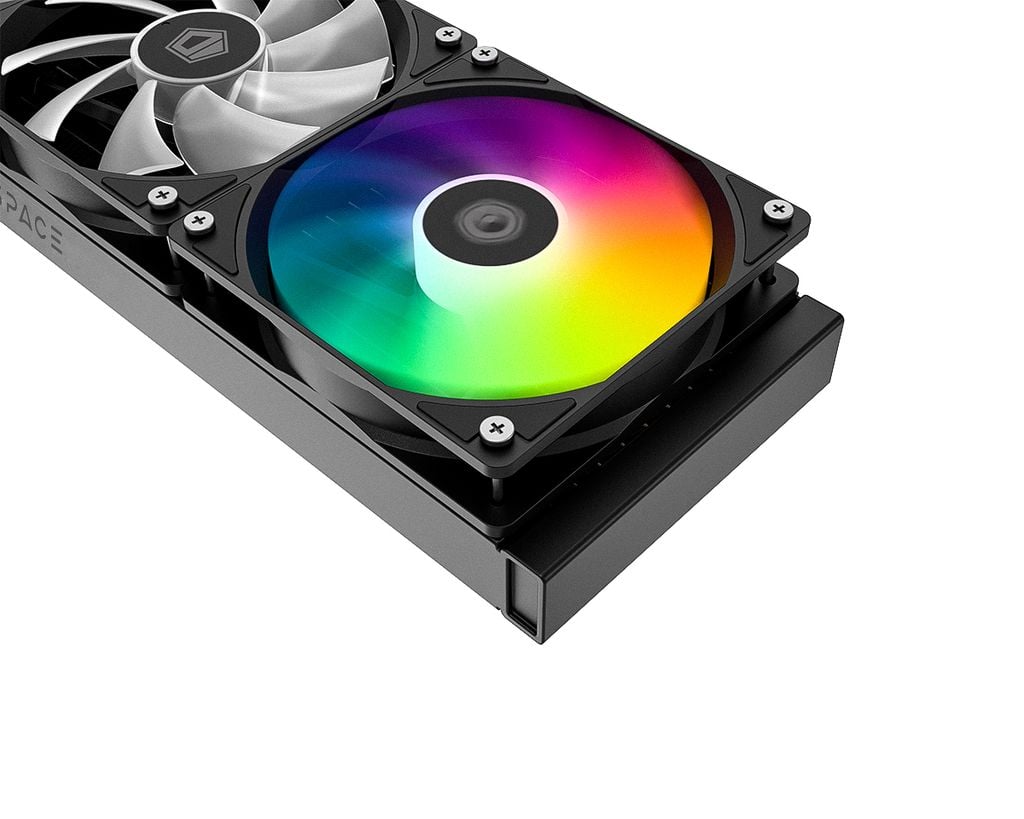

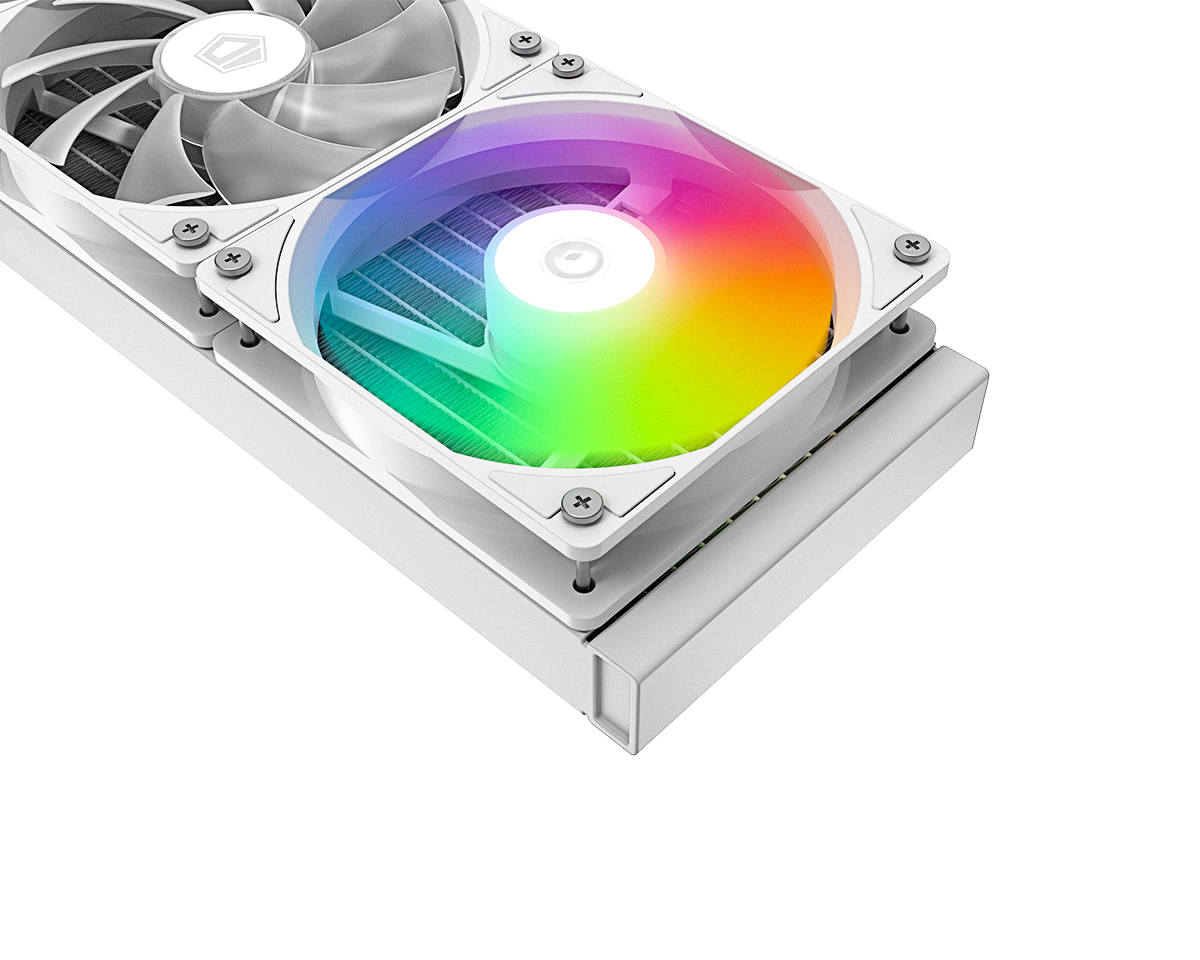

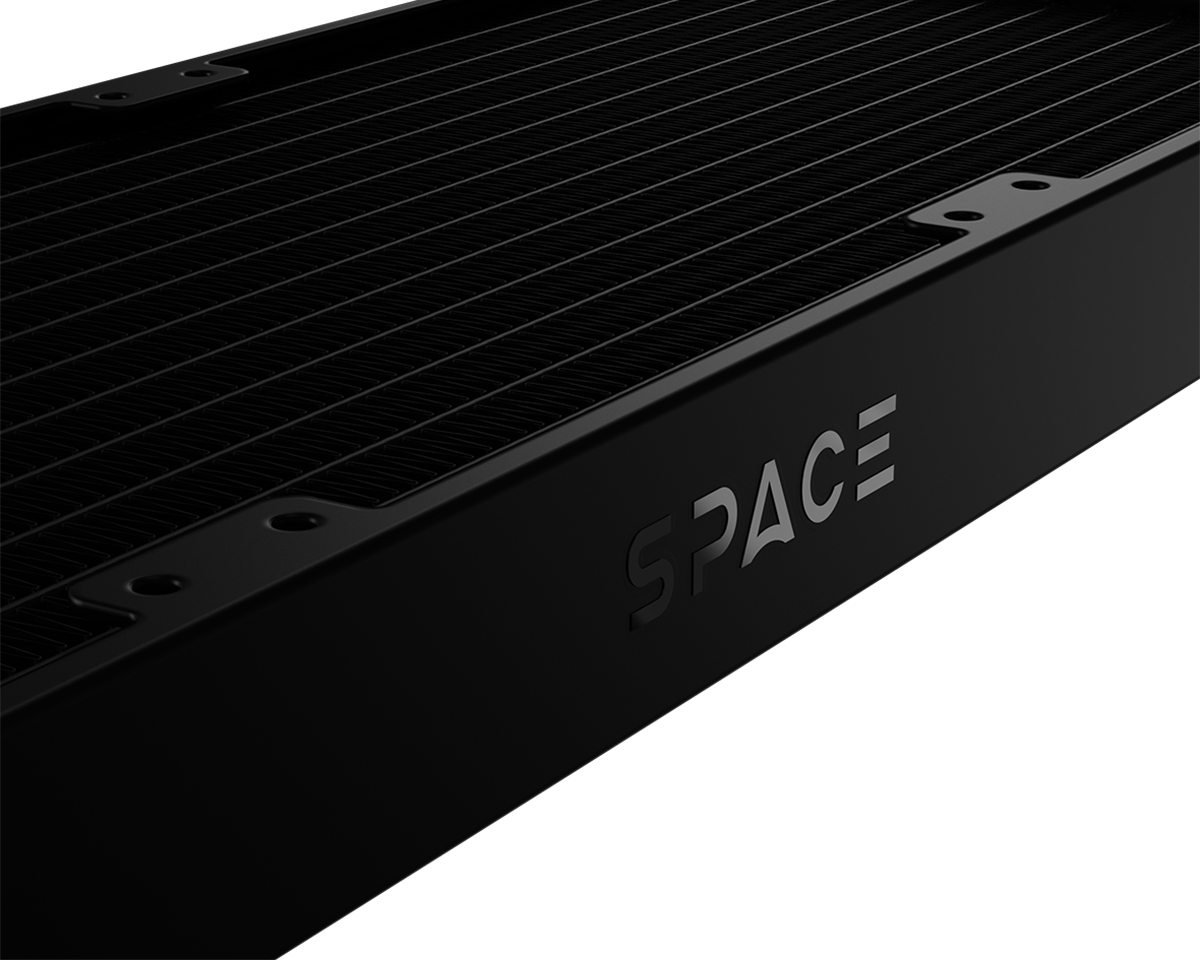

Radiator Dimension | 397×120×27mm |
Radiator Material | Aluminum |
Tube Material | Premium Sleeved Tubing |
Tube Length | 465mm |

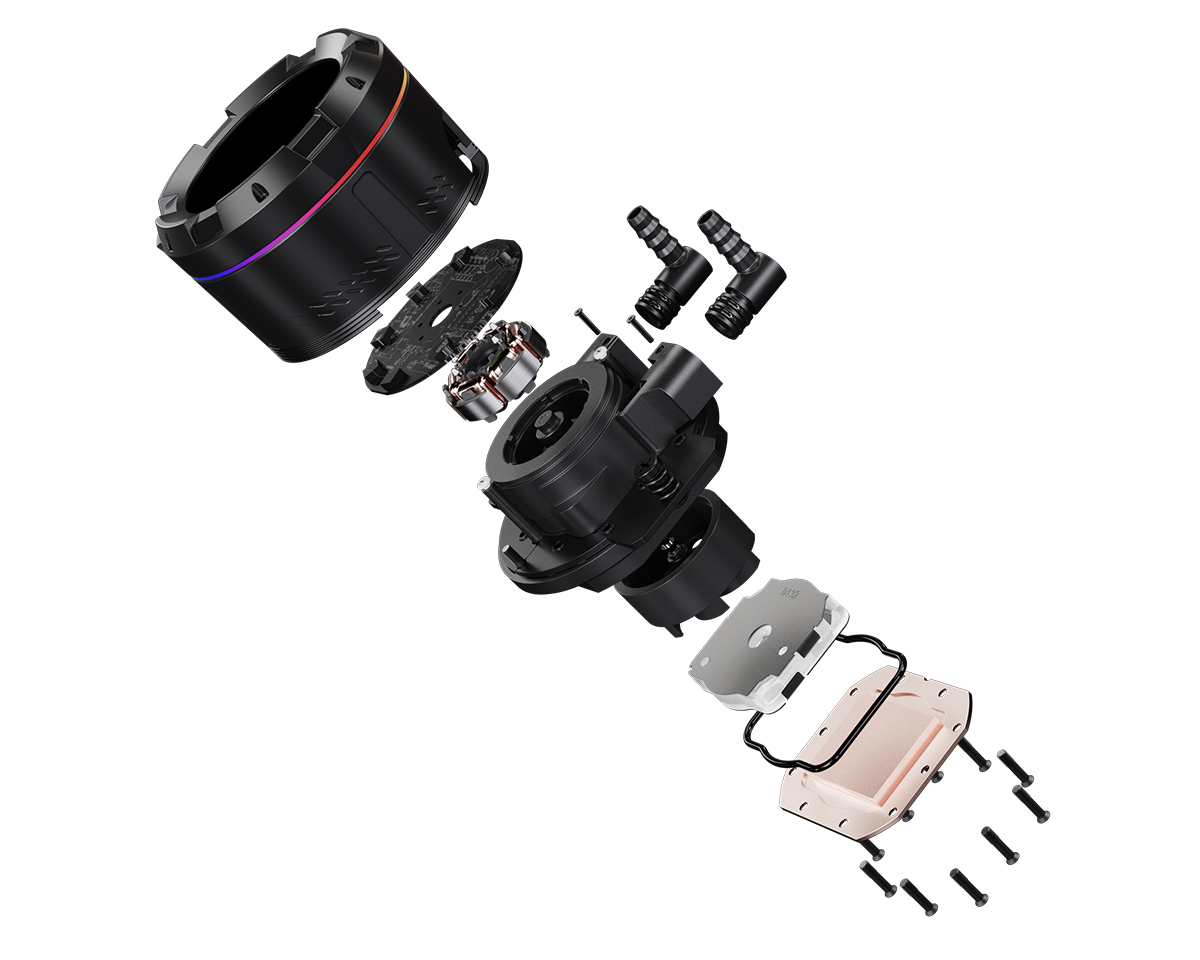

Waterblock Dimension | 76x76x58mm |
Cold Plate Material | Copper |
Pump Current | 0.36A Max. |
Pump Speed | 2500RPM±10% |
Pump Bearing | Ceramic Bearing |
Pump Life Expectancy | 50,000 Hrs |
Pump Noise Level | 25dB(A) |

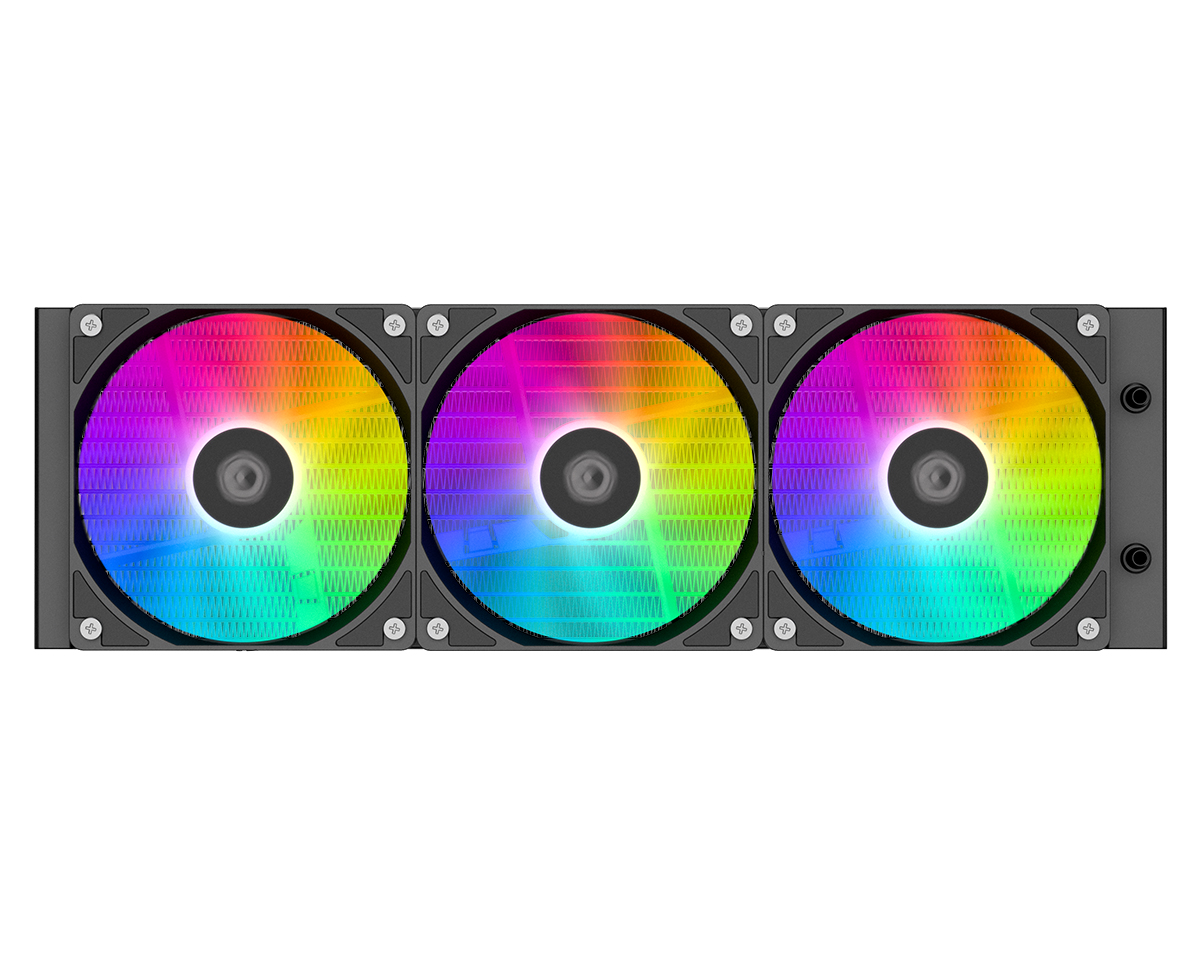

Fan Dimension | 120×120×25mm |
Included Fans | 3pcs |
Fan Speed | 500～1800±10%RPM |
Max. Air Flow | 76.16CFM |
Max. Static Pressure | 2.16mmH2O |
Noise | 35.2dB(A) Max. |
Rated Voltage | 12VDC |
Operating Voltage | 10.8～13.2VDC |
Started Voltage | 7VDC |
Rated Current | 0.2A |
Power Input | 2.4W |
Bearing Type | Hydraulic Bearing |
Connector | 4Pin PWM/5V 3Pin ARGB |
