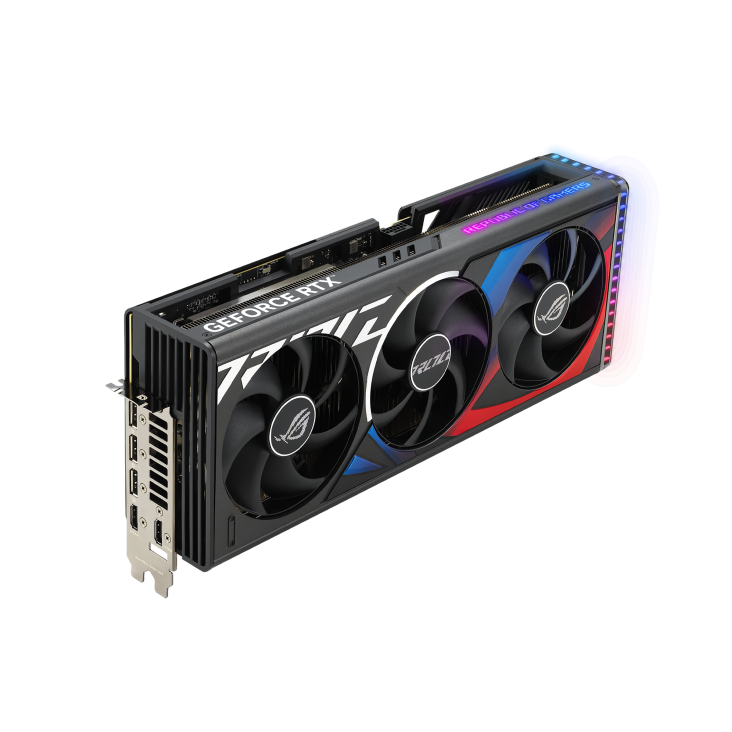

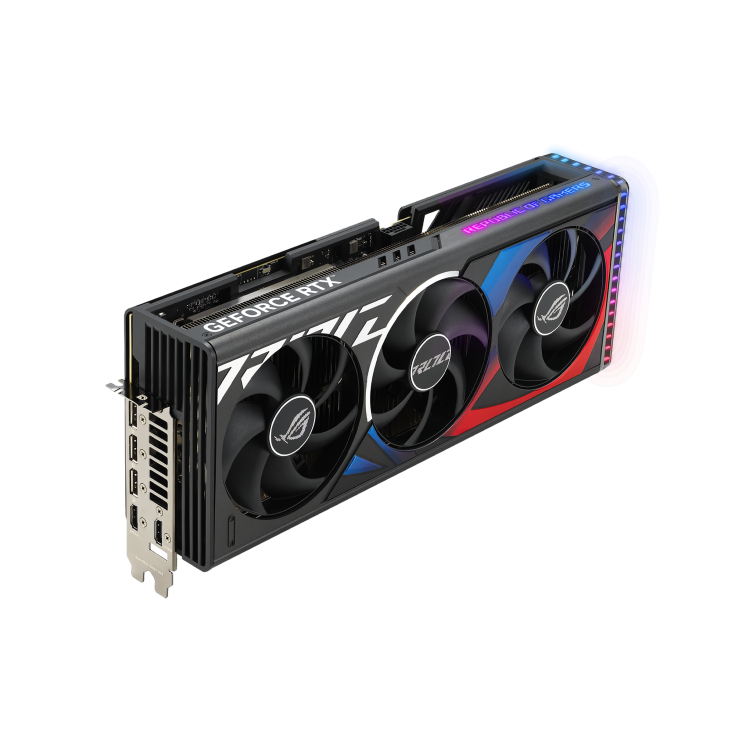

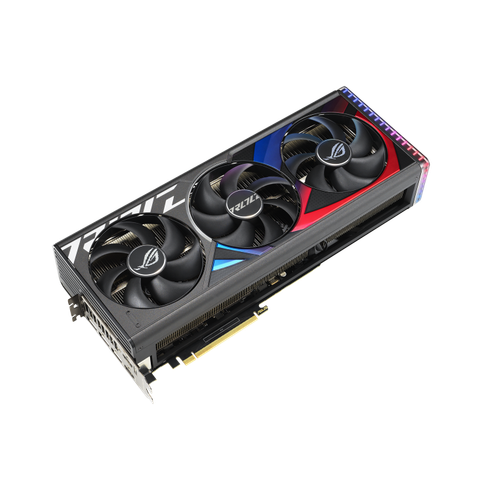

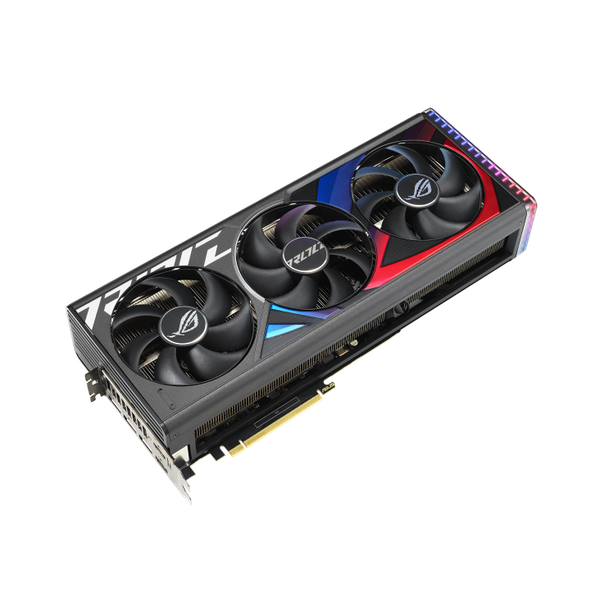

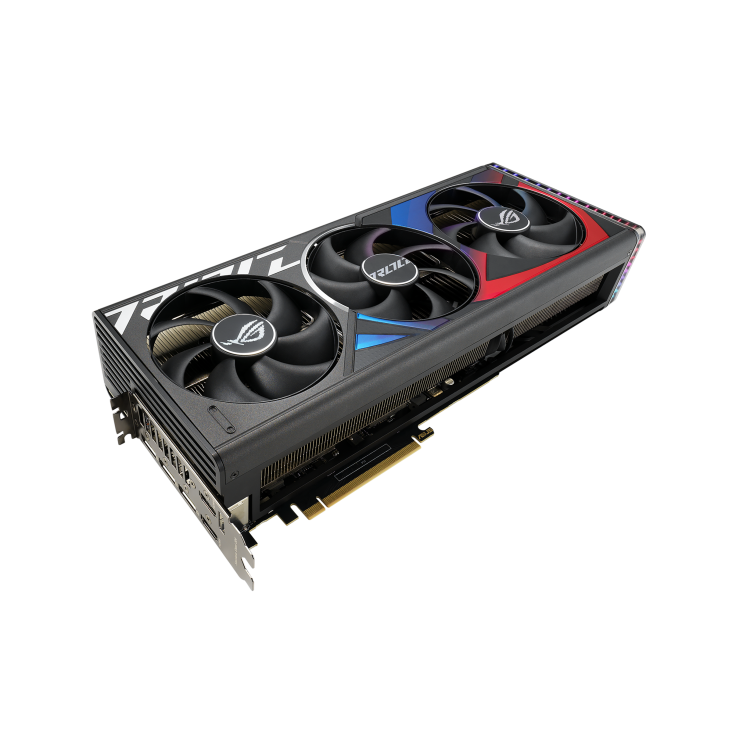

ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition with DLSS 3 and chart-topping thermal performance.
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode)

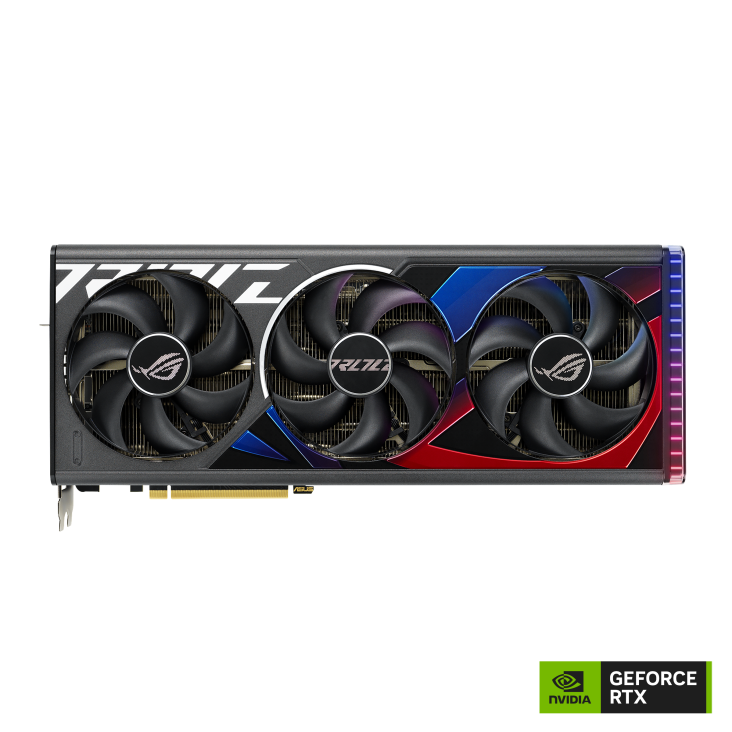

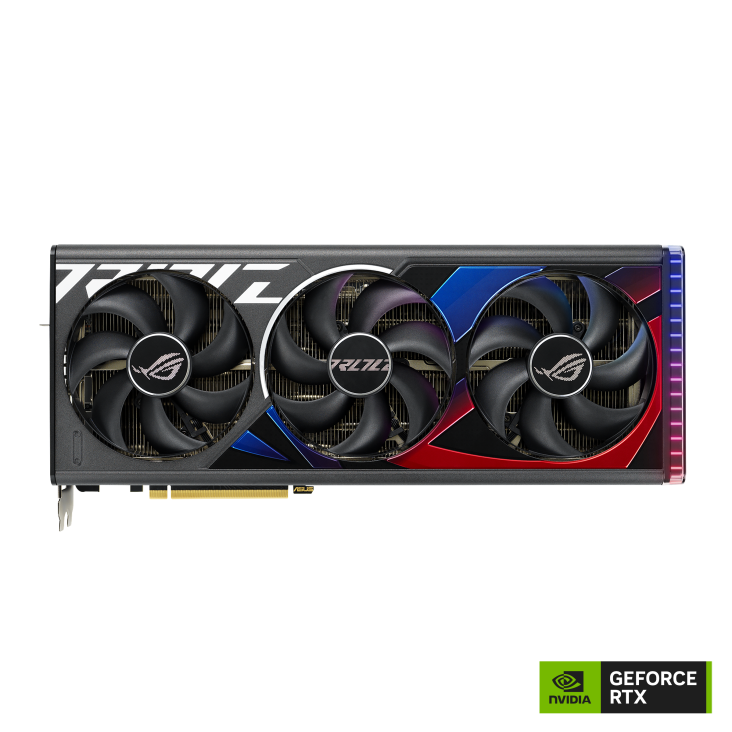

- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps

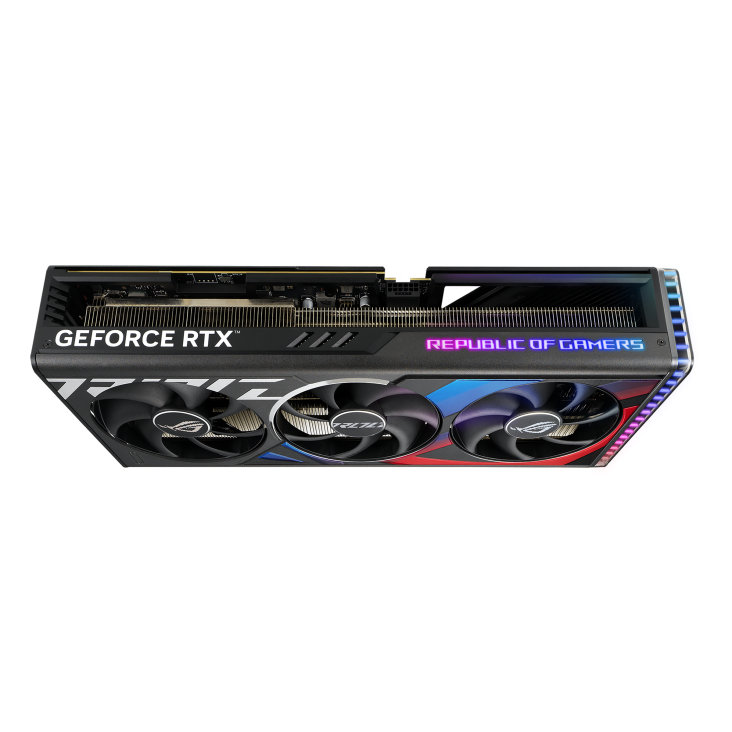

- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans

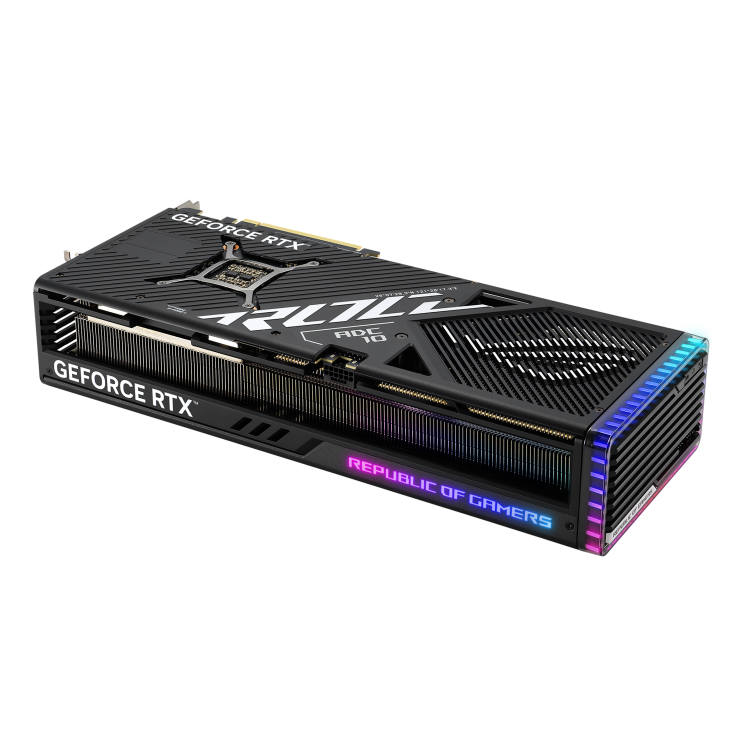

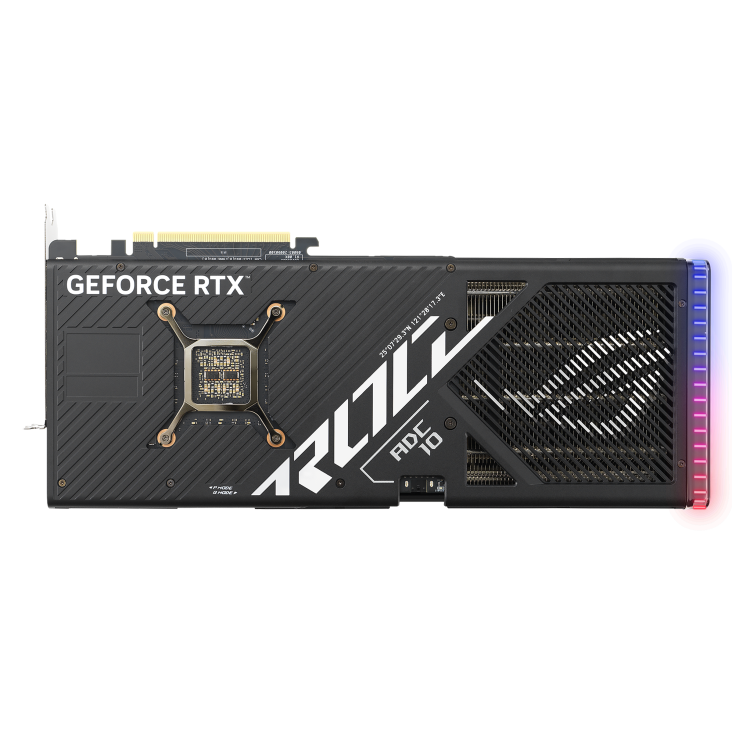

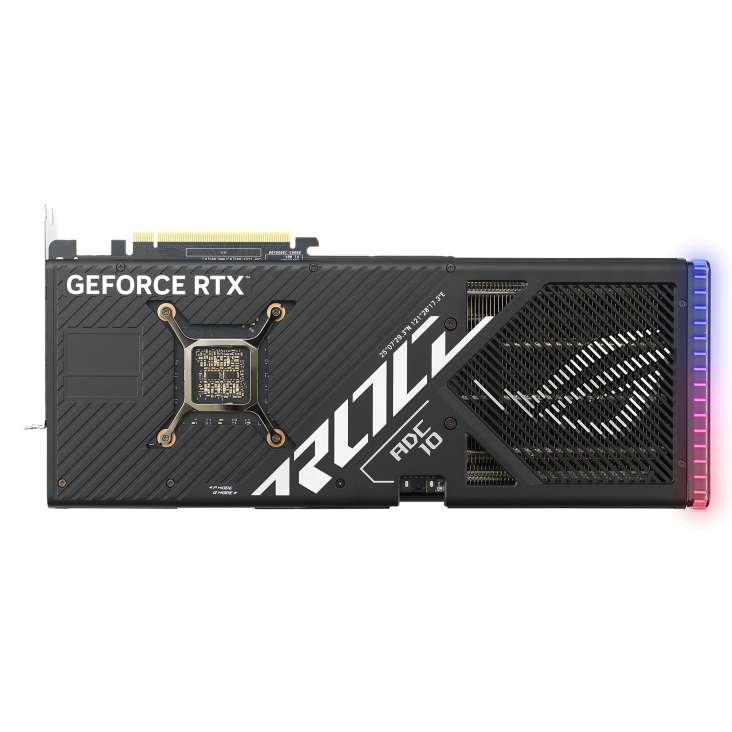

- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition
Graphic Engine
NVIDIA® GeForce RTX™ 4080 SUPER
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6X
Engine Clock
OC mode : 2670 MHz Default mode : 2640 MHz (boost)
CUDA Core
10420
Memory Speed
23 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320

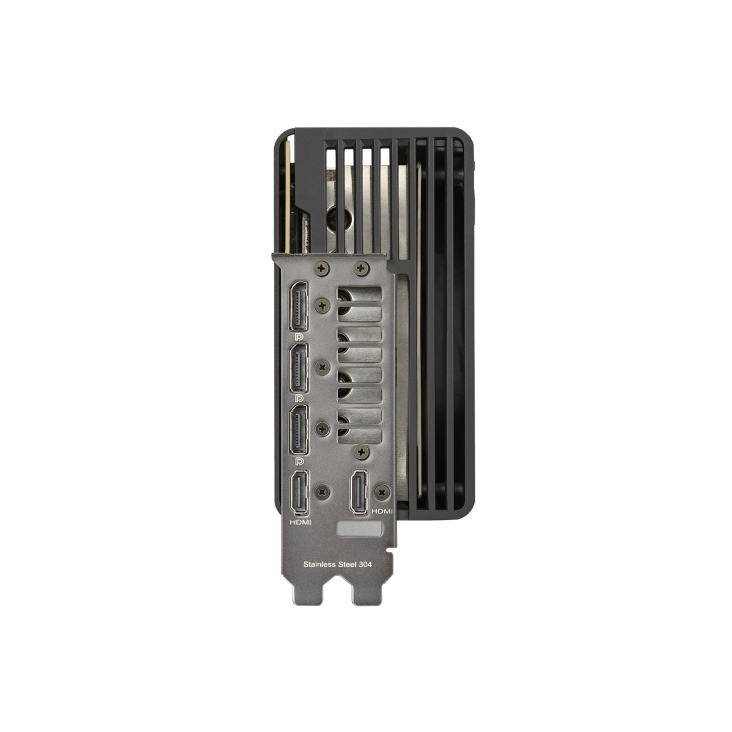

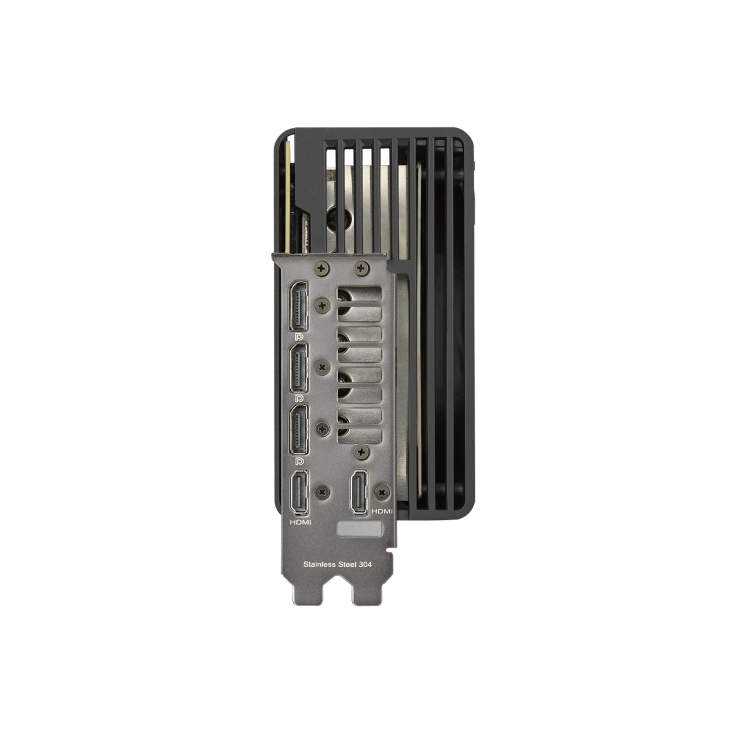

Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 70.1mm
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.5 Slot

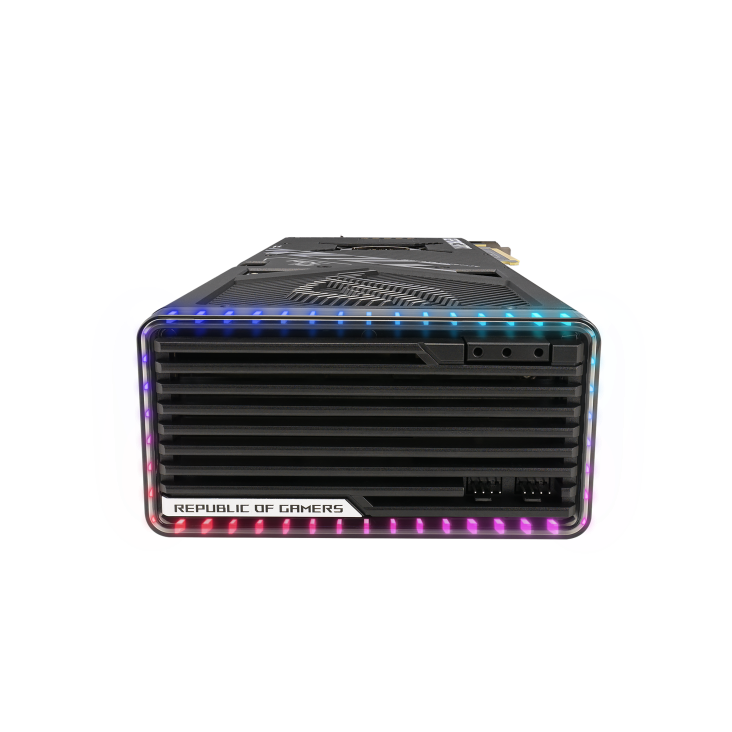

AURA SYNC
ARGB
