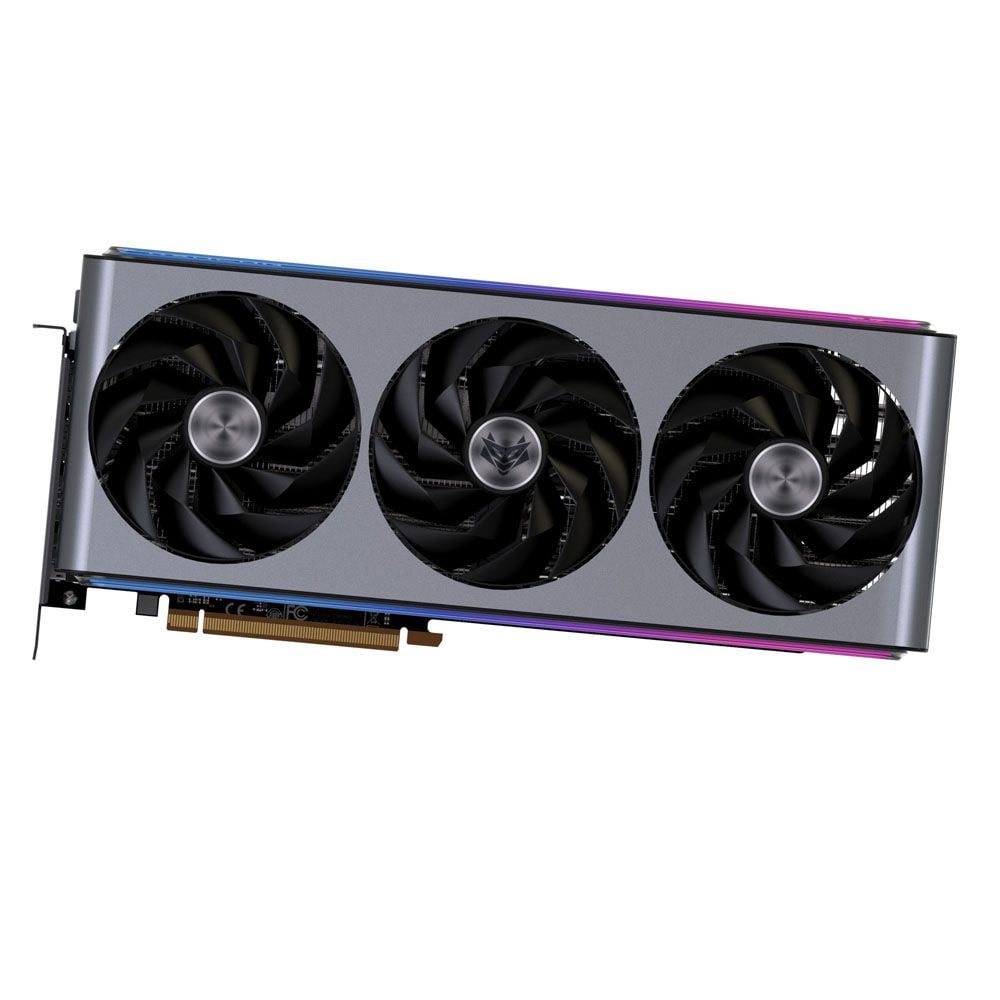

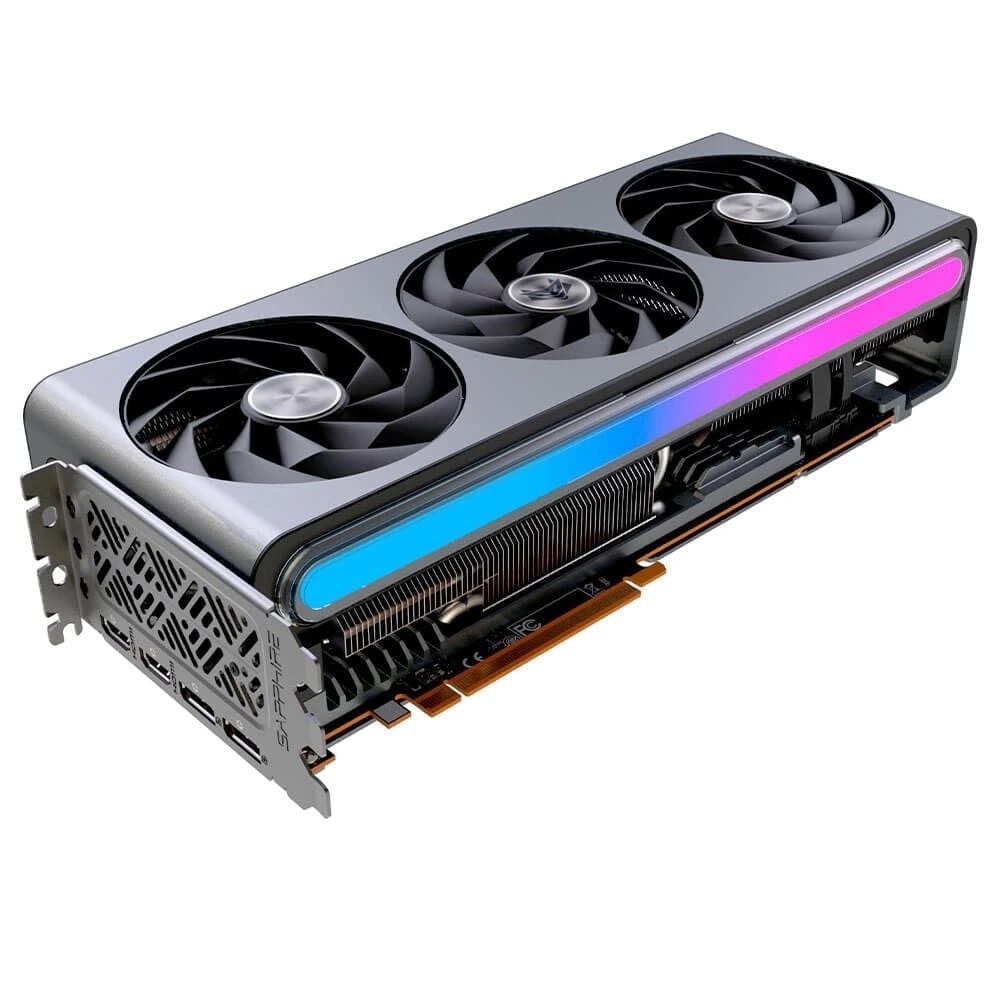

| NITRO+ AMD Radeon™ RX 7900 XTX Vapor-X 24GB GDDR6 |
| GPU | AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture |
| Engine Clock | Boost Clock: Up to 2680 MHz Game Clock: Up to 2510 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 6144 |
| Compute Units | 96 CU (with RT+AI Accelerators) |
| Infinity Cache | 96MB |
| Ray Accelerators | 96 |
| Memory Size/Bus | 24GB/384 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
| Interface | PCI-Express 4.0 x16 |
| Output | 2x HDMI 2x DisplayPort |
| BIOS Support | Dual UEFI |
| Game Index | 4K |
| Sapphire Features | - Dual BIOS
- TriXX Software Switch
- Premium Digital Power Design
- Ultra High Performance Conductive Polymer Aluminum Capacitors
- Fuse Protection
- Tri-X Cooling Technology
- Vapor-X Cooling
- High TG Copper PCB
- Optimized Composite Heatpipe
- Intelligent Fan Control
- Precision Fan Control

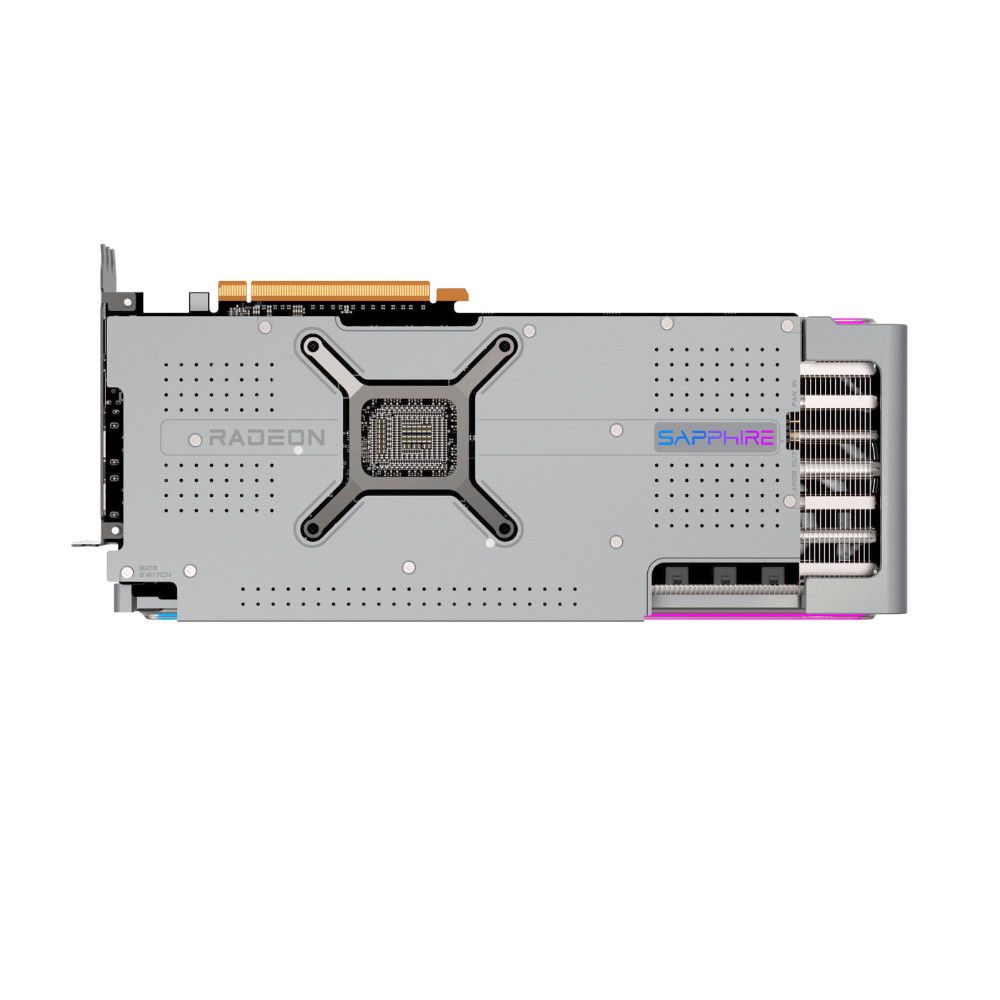

- Metal Backplate with ARGB
- Dual ARGB Light Bar
- Two-Ball Bearing Fans
- Angular Velocity Fan Blade
- Assistive System Fan Control
- Die Casted Aluminum-Magnesium Alloy Frame
- Frontplate Heatsink for VRM
- Wave Fin Design
- V Shape Fin Design for GPU Cooling
- TriXX Supported
- Fan Check
- Fan Quick Connect
- TriXX Boost
- NITRO Glow
- External RGB LED MB Synchronization
|

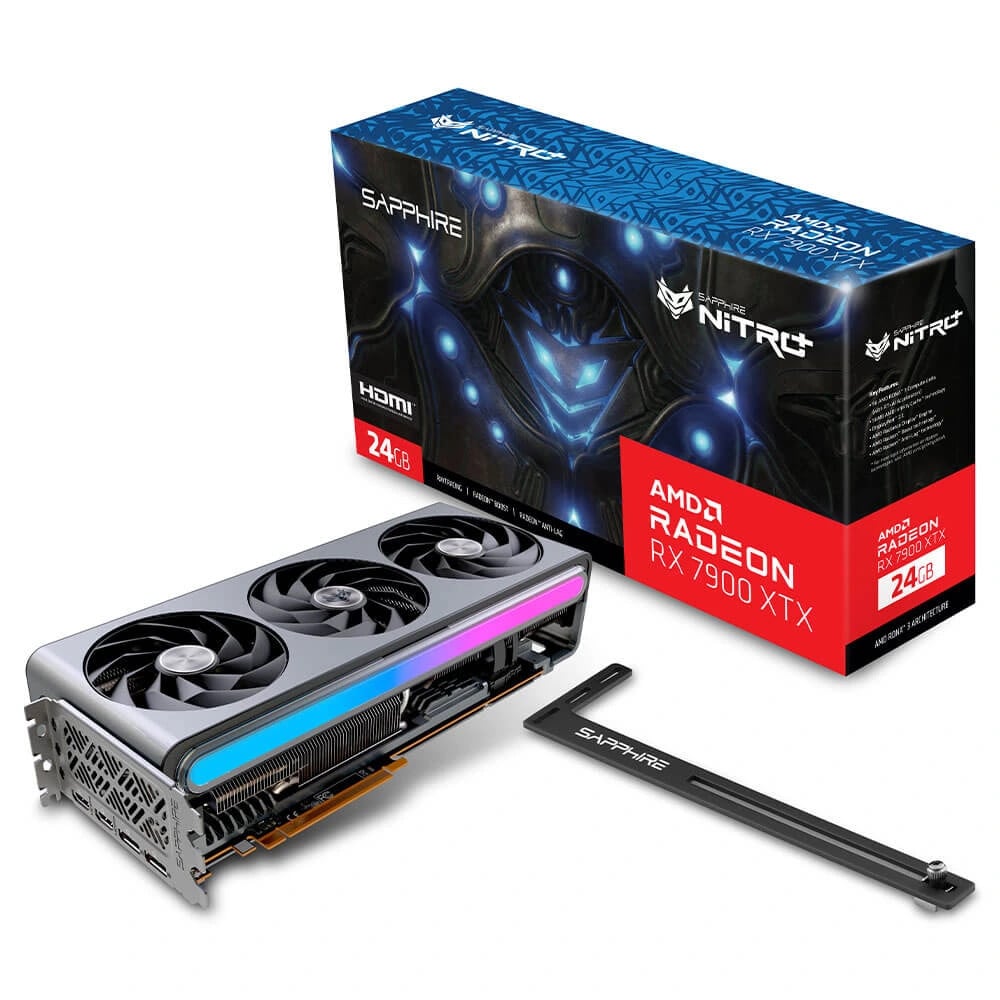

| Accessories Bundled | Graphics Card Supporter ARGB Extension Cable |
| AMD Features | - AMD RDNA™ 3 Gaming Architecture
- 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 96MB AMD Infinity Cache™ technology
- DisplayPort™ 2.1
- AMD Radiance Display™ Engine
- AMD Radeon™ Boost technology*
- AMD Radeon™ Anti-Lag* technology*
- 24GB GDDR6 on 384-Bit Memory Bus
- PCI® Express 4.0 ready
- AMD FidelityFX™ technologies*
- AMD FidelityFX™ Super Resolution technology*
- Microsoft® DirectX® 12 Ultimate
- Microsoft® DirectStorage
- Vulkan® Optimized
- AMD smart technologies*
- AMD Software: Adrenalin Edition™ application
- AMD Noise Suppression*
- AMD Privacy View*
- AMD Radeon™ Super Resolution technology*
- AMD Link*
- AMD Freesync™ technology
|
| Cooling | 3 Fans Vapor-X Cooling |
| Form Factor | 3.5 slot, ATX Dimension: 320(L)X 135.75(W)X 71.6 (H)mm |
| Power Consumption | 420W Total Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | - Minimum 800 Watt Power Supply
- 3 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
|
